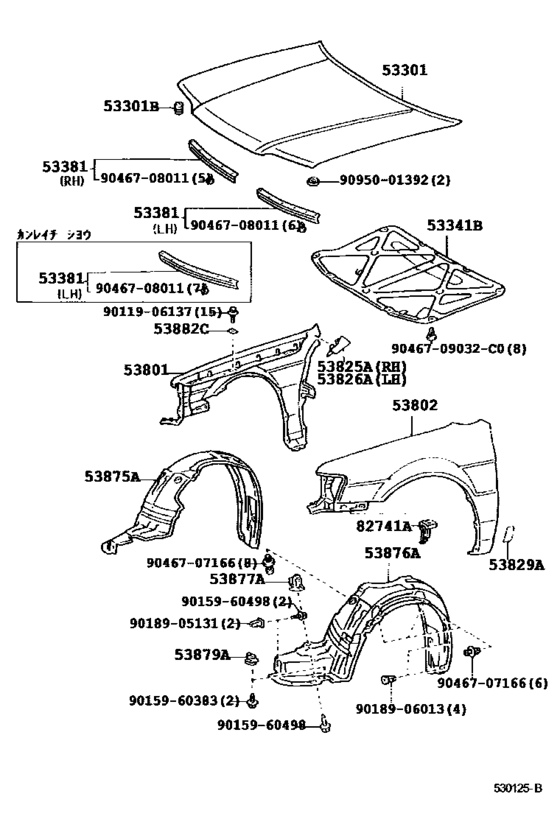

Hood & Front Fender ([09.1994 - ] (9409- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-16140 Hood Sub-Assy[09.1994 - 12.1997] EL5#,NL50..4DS |
53301-16140 |
US $484.85 |
||
| replacements | |||||
|
53301
|
53301
53382-16060
Seal, Hood To Radiator Support
[09.1994 - 12.1997] EL5#,NL50..4DS |
53382-16060 |
— | ||
|
53301
|
53301
53301-16141 Hood Sub-Assy[09.1994 - 12.1997] EL5#,NL50..4DS |
53301-16141 |
from US $472.62 |
||
|
53301
|
53301
53301-16141 Hood Sub-Assy[12.1997 -] EL5#,NL50..4DS |
53301-16141 |
from US $472.62 |
||
|
53301B
|
53301B
90541-15010 Cushion, Hood Bumper[09.1994 -] EL5#,NL50 |
90541-15010 |
US $4.32 |
||
|
53341B
|
53341B
53341-16040 Insulator, Hood[09.1994 -] NL50 |
53341-16040 |
US $123.76 |
||
|
53381
|
53381
53381-16080
Seal, Hood To Radiator Support
[09.1994 -] EL5#,NL50 右側 |
53381-16080 |
— | ||
|
53381
|
53381
53382-16020
Seal, Hood To Radiator Support
[09.1994 -] EL5#,NL50 左側 |
53382-16020 |
— | ||
|
53381
|
53381
53382-16050
Seal, Hood To Radiator Support
[05.1997 - 12.1997] NL50..4DS ｶﾝﾚｲﾁ ｼﾖｳ,左側 |
53382-16050 |
— | ||
| replacement | |||||
|
53381
|
53381
53382-16060
Seal, Hood To Radiator Support
[05.1997 - 12.1997] NL50..4DS ｶﾝﾚｲﾁ ｼﾖｳ,左側 |
53382-16060 |
— | ||
|
53381
|
53381
53382-16060
Seal, Hood To Radiator Support
[12.1997 -] NL50..4DS ｶﾝﾚｲﾁ ｼﾖｳ,左側 |
53382-16060 |
— | ||
|
53801
|
53801
53801-16430 Fender Sub-Assy, Front Rh[09.1994 -] EL5#,NL50 |
53801-16430 |
US $428.06 |
||
|
53802
|
53802
53802-16430 Fender Sub-Assy, Front Lh[09.1994 -] EL5#,NL50 |
53802-16430 |
from US $303.38 |
||
|
53825A
|
53825A
53825-16030
Protector, Front Fender, Upper Rh
[09.1994 - 10.1994] EL5#,NL50 |
53825-16030 |
— | ||
|
53826A
|
53826A
53826-16030 Protector, Front Fender, Upper Lh[09.1994 - 10.1994] EL5#,NL50 |
53826-16030 |
US $4.89 |
||
|
53829A
|
53829A
53829-16010 Protector, Front Fender, Lower[09.1994 -] EL5#,NL50 |
53829-16010 |
US $9.61 |
||
|
53875A
|
53875A
53875-16080
Liner, Front Fender, Rh
[09.1994 -] EL5#,NL50 |
53875-16080 |
— | ||
|
53876A
|
53876A
53876-16080
Liner, Front Fender, Lh
[09.1994 -] EL5#,NL50 |
53876-16080 |
— | ||
|
53877A
|
53877A
53877-16010
Bracket, Front Fender Splash Shield
[09.1994 -] EL5#,NL50 |
53877-16010 |
— | ||
|
53879A
|
53879A
53879-16010 Retainer, Front Fender Liner[09.1994 -] EL5#,NL50 |
53879-16010 |
from US $1.95 |
||
|
53882C
|
53882C
53882-16030 Pad, Rear Bumper, Center[09.1994 -] EL5#,NL50 |
53882-16030 |
from US $0.96 |
||
|
82741A
|
82741A
85999-16140
Bracket, Engine Room Relay Block
[09.1994 -] EL5#,NL50 |
85999-16140 |
— | ||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.68 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9018905131
|
9018905131
90189-05131 WASHER |
90189-05131 |
US $1.05 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.76 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.31 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9046709032C0
|
9046709032C0
90467-09032-C0 Clip(For Hood Insulator) |
90467-09032-C0 |
US $4.16 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.13 |
||
