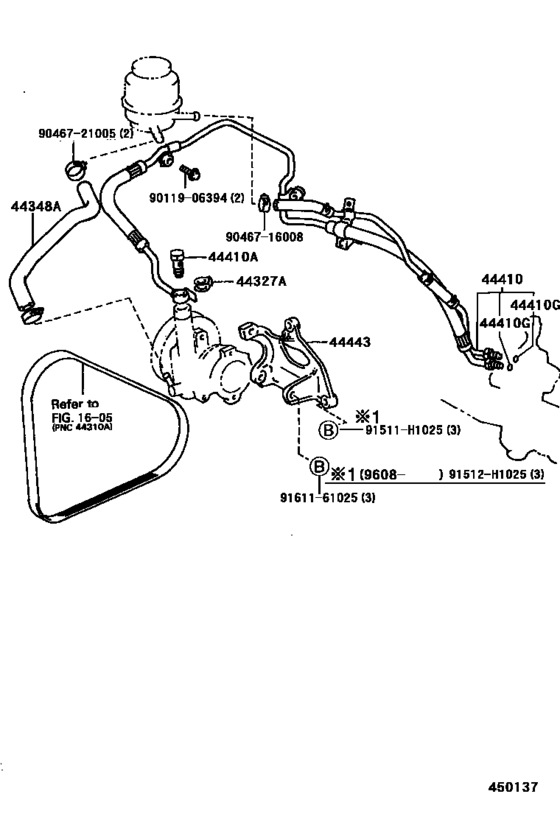

Power Steering Tube ([09.1994 - ] (9409- )NL50) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-12010 Gasket(For Pressure Hose)[09.1994 -] EL5#,NL50 |
44327-12010 |
US $4.16 |
||
|
44348A
|
44348A
44348-10071
Hose, Oil Reservoir To Pump, No.1
[09.1994 -] NL50 |
44348-10071 |
— | ||
|
44410
|
44410
44410-10151 Tube Assy, Pressure Feed[09.1994 -] NL50 |
44410-10151 |
US $324.69 |
||
|
44410A
|
44410A
90401-16012 Bolt, Union(For Pressure Feed Tube)[09.1994 -] EL5#,NL50 |
90401-16012 |
US $6.81 |
||
|
44410G
|
44410G
90301-07009 Ring, O(For Pressure Feed Tube)[09.1994 -] EL5#,NL50 |
90301-07009 |
from US $4.16 |
||
|
44443
|
44443
44443-16030
Bracket, Pump
[09.1994 -] NL50 |
44443-16030 |
— | ||
|
91511H1025
|
91511H1025
91511-H1025 New Genuine Part |
91511-H1025 |
US $2.48 |
||
|
91512H1025
|
91512H1025
91512-H1025 New Genuine Part |
91512-H1025 |
US $2.18 |
||
|
9011906394
|
9011906394
90119-06394 BOLT WWASHER |
90119-06394 |
US $2.56 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $3.33 |
||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
