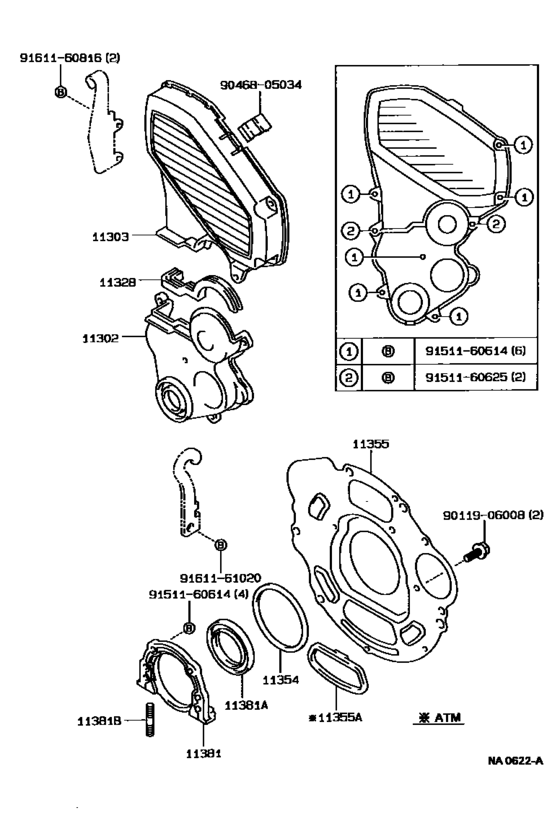

Timing Gear Cover & Rear End Plate ([09.1994 - ] (9409- )1NT) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-55011
Cover Sub-Assy, Timing Chain Or Belt
[09.1994 -] 1NT..NL50 |
11302-55011 |
— | ||
|
11303
|
11303
11303-55020 Cover Sub-Assy, Crankshaft Gear Or Pulley[09.1994 -] 1NT..NL50 |
11303-55020 |
US $66.25 |
||
|
11328
|
11328
11328-55010 Gasket, Timing Gear Or Chain Cover[09.1994 -] 1NT..NL50 |
11328-55010 |
US $10.05 |
||
|
11354
|
11354
11354-55010
Seal, Flywheel Housing Dust
[09.1994 -] 1NT..NL50 |
11354-55010 |
— | ||
|
11355
|
11355
11355-55012 Plate, Rear End[09.1994 -] 1NT..NL50..5F |
11355-55012 |
US $78.62 |
||
|
11381
|
11381
11381-55010 Retainer, Engine Rear Oil Seal[09.1994 - 11.1998] 1NT..NL50 |
11381-55010 |
US $49.94 |
||
| replacement | |||||
|
11381
|
11381
11381-55011 Retainer, Engine Rear Oil Seal[09.1994 - 11.1998] 1NT..NL50 |
11381-55011 |
US $49.36 |
||
|
11381
|
11381
11381-55011 Retainer, Engine Rear Oil Seal[11.1998 -] 1NT..NL50 |
11381-55011 |
US $49.36 |
||
|
11381A
|
11381A
90311-80009
Seal, Engine Rear Oil
[09.1994 - 12.1998] 1NT..NL50 |
90311-80009 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-80014 Seal, Engine Rear Oil[09.1994 - 12.1998] 1NT..NL50 |
90311-80014 |
from US $19.30 |
||
|
11381A
|
11381A
90311-80013 Seal, Engine Rear Oil[12.1998 - 02.1999] 1NT..NL50 |
90311-80013 |
US $18.49 |
||
| replacement | |||||
|
11381A
|
11381A
90311-80014 Seal, Engine Rear Oil[12.1998 - 02.1999] 1NT..NL50 |
90311-80014 |
from US $19.30 |
||
|
11381B
|
11381B
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[09.1994 - 11.1998] 1NT..NL50 S=8&8,L=18 |
90116-06022 |
from US $1.95 |
||
|
11381B
|
11381B
90116-06168 Bolt, Stud(For Engine Rear Oil Seal Retainer)[11.1998 -] 1NT..NL50 S=8&10,L=21.5 |
90116-06168 |
US $1.60 |
||
|
9011906008
|
9011906008
90119-06008 New Genuine Part |
90119-06008 |
US $1.46 |
||
|
9046805034
|
9046805034
90468-05034 Timing cover clip |
90468-05034 |
from US $1.07 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
9151160625
|
9151160625
91511-60625
Bolt(For Cylinder Head Cover)
|
91511-60625 |
— | ||
| replacement | |||||
|
9151160625
|
9151160625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.92 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
