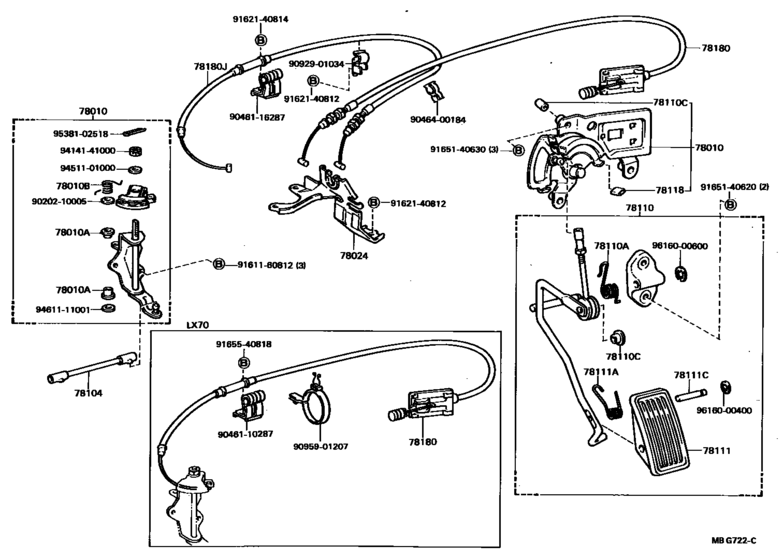

Accelerator Link ([08.1984 - ] (8408- )LX7#) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- Europe
- Frame
- LX70
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78100-22050 Link, AcceleratorACCELERATOR [08.1984 - 08.1986] GX71,LX7#,MX7#..GL..(EUR,GEN) |
78100-22050 |
US $48.63 |
||
|
78010
|
78010
78100-30470 Link, Accelerator[08.1984 - 08.1988] LX70..5F..GEN |
78100-30470 |
US $63.48 |
||
|
78010A
|
78010A
90386-10138 Bush (For Throttle Cam Shaft)[08.1984 - 08.1988] LX7# |
90386-10138 |
US $4.30 |
||
|
78010B
|
78010B
90508-16010 Spring, Torsion (For Accelerator Link)[08.1984 - 08.1988] LX7# |
90508-16010 |
US $5.39 |
||
|
78104
|
78104
78104-30120 Rod Sub-Assy, Accelerator Connecting, No.2[08.1984 - 08.1988] LX7# |
78104-30120 |
US $11.36 |
||
|
78110
|
78110
78120-22210 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1984 - 02.1985] GX71,LX7#..5F..GL..(EUR,GEN) |
78120-22210 |
US $37.13 |
||
| replacement | |||||
|
78110
|
78110
78120-22211 Rod Assy, Accelerator Pedal[08.1984 - 02.1985] GX71,LX7#..5F..GL..(EUR,GEN) |
78120-22211 |
US $37.13 |
||
|
78110
|
78110
78120-22250 Rod Assy, Accelerator PedalACCELERATOR PEDAL [02.1985 - 08.1986] LX7#..5F |
78120-22250 |
US $37.13 |
||
| replacement | |||||
|
78110
|
78110
78120-22251
Rod Assy, Accelerator Pedal
[02.1985 - 08.1986] LX7#..5F |
78120-22251 |
— | ||
|
78110A
|
78110A
90508-18060 Spring (For Accelerator Pedal Rod)[08.1984 - 08.1986] LX7#..5F |
90508-18060 |
US $1.44 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[08.1986 - 08.1988] LX70..5F |
90508-26054 |
US $6.99 |
||
|
78110C
|
78110C
90386-08050 Bush (For Accelerator Pedal Rod)[08.1984 - 08.1986] GX71,LX7#,MX7#..GL..(EUR,GEN) D=17 |
90386-08050 |
US $3.20 |
||
|
78110C
|
78110C
90386-08164 Bush (For Accelerator Pedal Rod)[08.1984 - 08.1986] GX71,LX7#,MX7#..GL..(EUR,GEN) D=14 |
90386-08164 |
US $2.77 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
78111-12100 |
from US $20.50 |
||
|
78111A
|
78111A
90508-23088 Spring (For Accelerator Pedal)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
90508-23088 |
US $1.40 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
90249-05001 |
US $3.32 |
||
|
78118
|
78118
78119-30050 Stopper (For Accelerator Pedal)[08.1984 - 08.1986] GX71,LX7#,MX7#..GL..(EUR,GEN) |
78119-30050 |
US $2.77 |
||
|
78180
|
78180
78180-22520 Wire Assy, AcceleratorACCELERATOR [08.1984 - 08.1988] LX70 |
78180-22520 |
US $78.62 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9046110287
|
9046110287
90461-10287
Clamp (For Accelerator Wire Set)
|
90461-10287 |
— | ||
|
9046116287
|
9046116287
90461-16287
New Genuine Part
|
90461-16287 |
— | ||
|
9046400184
|
9046400184
90464-00184 Clamp, Vacuum Tube |
90464-00184 |
US $6.27 |
||
|
9092901034
|
9092901034
90929-01034 New Genuine Part |
90929-01034 |
US $4.66 |
||
|
9095901207
|
9095901207
90959-01207 New Genuine Part |
90959-01207 |
US $3.64 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.43 |
||
|
9165540818
|
9165540818
91655-40818
New Genuine Part
|
91655-40818 |
— | ||
| replacement | |||||
|
9165540818
|
9165540818
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $3.23 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
