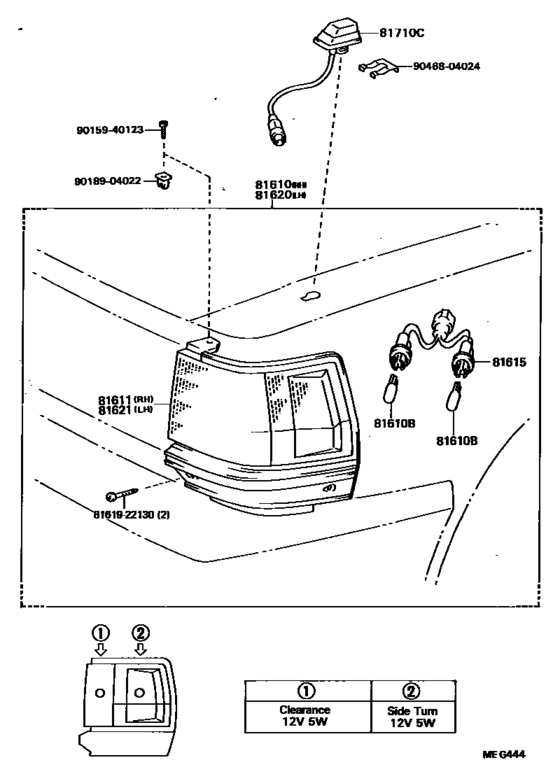

Front Clearance Lamp ([08.1986 - ] (8508-8608)SED,WG..ME ; (8608- )SED,WG..ARL,G EN,ME) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- Europe
- Frame
- LX70
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81610
|
81610
81610-22141
Lamp Assy, Parking & Clearance, Rh
[08.1985 - 08.1986] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81610-22141 |
— | ||
|
81610
|
81610
81610-22142 Lamp Assy, Parking & Clearance, RhPARKING & CLEARANCE, RH [08.1986 - 08.1988] GX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME) |
81610-22142 |
US $174.72 |
||
|
81610
|
81610
81610-29435
Lamp Assy, Parking & Clearance, Rh
[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81610-29435 |
— | ||
| replacements | |||||
|
81610
|
81610
81610-22141
Lamp Assy, Parking & Clearance, Rh
[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81610-22141 |
— | ||
|
81610
|
81610
90159-40123
New Genuine Part
[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
90159-40123 |
— | ||
|
81610
|
81610
90189-04022 CLIP[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
90189-04022 |
from US $1.25 |
||
|
81610B
|
81610B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[08.1986 - 08.1988] GX71,LX70,MX73,RX7#,YX70 12V 5W,12V 5W |
90981-12010 |
from US $1.97 |
||
|
81610B
|
81610B
99132-12050 Bulb (12V 5W)[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA 12V 5W,12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610B
|
81610B
90080-81053 Bulb(For Clearance Lamp)[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA 12V 5W,12V 5W |
90080-81053 |
US $1.01 |
||
|
81611
|
81611
81611-22130
Lens, Parking & Clearance Lamp, Rh
[08.1984 - 08.1985] GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA |
81611-22130 |
— | ||
|
81611
|
81611
81611-22141
Lens, Parking & Clearance Lamp, Rh
[08.1985 - 08.1986] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81611-22141 |
— | ||
|
81611
|
81611
81611-22142 Lens, Parking & Clearance Lamp, Rh[08.1986 - 08.1988] GX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME) |
81611-22142 |
US $114.85 |
||
|
81615
|
81615
81615-22140
Socket And Wire, Clearance Lamp
[08.1984 - 08.1986] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81615-22140 |
— | ||
|
81615
|
81615
81615-22142
Socket And Wire, Parking And Clearance Lamp
[08.1986 - 08.1988] GX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME) |
81615-22142 |
— | ||
|
81620
|
81620
81620-22141
Lamp Assy, Parking & Clearance, Lh
[08.1985 - 08.1986] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81620-22141 |
— | ||
|
81620
|
81620
81620-22142 Lamp Assy, Parking & Clearance, LhPARKING & CLEARANCE, LH [08.1986 - 08.1988] GX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME) |
81620-22142 |
US $174.72 |
||
|
81620
|
81620
81620-29425
Lamp Assy, Parking & Clearance, Lh
[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81620-29425 |
— | ||
| replacements | |||||
|
81620
|
81620
81620-22141
Lamp Assy, Parking & Clearance, Lh
[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81620-22141 |
— | ||
|
81620
|
81620
90159-40123
New Genuine Part
[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
90159-40123 |
— | ||
|
81620
|
81620
90189-04022 CLIP[08.1984 - 08.1985] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
90189-04022 |
from US $1.25 |
||
|
81621
|
81621
81621-22130
Lens, Parking & Clearance Lamp, Lh
[08.1984 - 08.1985] GX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA |
81621-22130 |
— | ||
|
81621
|
81621
81621-22141 Lens, Parking & Clearance Lamp, LhPARKING & CLEARANCE LAMP, LH [08.1985 - 08.1986] GX71,LX70,MX73,RX70,YX70..ARL,GEN,SA |
81621-22141 |
US $122.30 |
||
|
81621
|
81621
81621-22142
Lens, Parking & Clearance Lamp, Lh
[08.1986 - 08.1988] GX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME) |
81621-22142 |
— | ||
|
8161922130
|
8161922130
81619-22130 New Genuine Part |
81619-22130 |
US $1.46 |
||
|
9015940123
|
9015940123
90159-40123
New Genuine Part
|
90159-40123 |
— | ||
|
9018904022
|
9018904022
90189-04022 CLIP |
90189-04022 |
from US $1.25 |
||
|
9046804024
|
9046804024
90468-04024 New Genuine Part |
90468-04024 |
US $2.52 |
||
