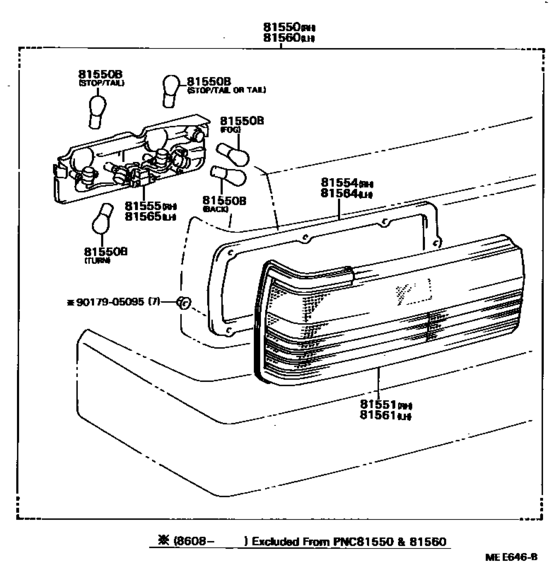

Rear Combination Lamp ([08.1984 - ] (8408- )SED..ARL,EUR,GEN,SA) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- Europe
- Frame
- LX70
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-22630 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1986 - 08.1988] GX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA) |
81550-22630 |
US $417.87 |
||
|
81550
|
81550
81550-80233 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1984 - 08.1986] GX71,LX70,MX73,RX70,YX70..SED..(ARL,GEN,SA) |
81550-80233 |
US $349.44 |
||
| replacement | |||||
|
81550
|
81550
81550-22630 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1984 - 08.1986] GX71,LX70,MX73,RX70,YX70..SED..(ARL,GEN,SA) |
81550-22630 |
US $417.87 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[06.1986 - 08.1988] GX71,MX73,RX70,72,YX70..SA 12V 21W,12V 21W(TURN OR BACK); GX71,LX70,MX73,RX7#..SED..(ARL,GEN) 12V 21W,12V 21W(TURN OR BACK) |
99132-11210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-11230 Bulb, Fog Lamp[08.1984 - 06.1986] GX71,LX70,MX73,RX70,YX70..ARL,GEN,ME,SA 12V 23W,12V 23W(TURN OR BACK) |
99132-11230 |
US $3.05 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 12V 21/5W,12V 21/5W(STOP/TAIL OR TAIL) |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-22630
Lens, Rear Combination Lamp, Rh
[08.1984 - 08.1988] GX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA) |
81551-22630 |
— | ||
|
81554
|
81554
81554-22620 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA) |
81554-22620 |
US $17.04 |
||
|
81555
|
81555
81555-22630 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1984 - 08.1988] GX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA) |
81555-22630 |
US $101.92 |
||
|
81560
|
81560
81560-22630 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1986 - 08.1988] GX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA) |
81560-22630 |
US $417.87 |
||
|
81560
|
81560
81560-80239 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1984 - 08.1986] GX71,LX70,MX73,RX70,YX70..SED..(ARL,GEN,SA) |
81560-80239 |
US $349.44 |
||
| replacement | |||||
|
81560
|
81560
81560-22630 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1984 - 08.1986] GX71,LX70,MX73,RX70,YX70..SED..(ARL,GEN,SA) |
81560-22630 |
US $417.87 |
||
|
81561
|
81561
81561-22630
Lens, Rear Combination Lamp, Lh
[08.1984 - 08.1988] GX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA) |
81561-22630 |
— | ||
|
81564
|
81564
81554-22620 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA) |
81554-22620 |
US $17.04 |
||
|
81565
|
81565
81565-22630 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1984 - 08.1988] GX71,LX70,MX73,RX7#,YX70..SED..(ARL,GEN,SA) |
81565-22630 |
US $101.92 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
