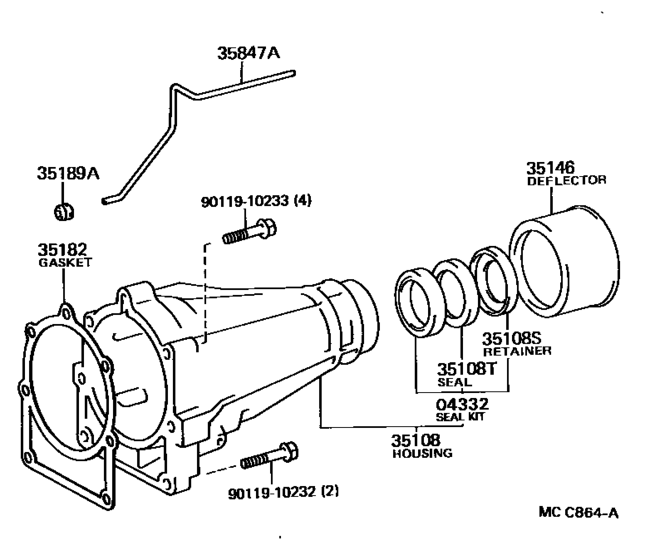

Extension Housing (Atm) ([08.1984 - ] (8408- )4FC) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- Europe
- Frame
- LX70
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04332
|
04332
04332-30020
Seal Kit, Oil(For Automatic Extention Housing)
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
04332-30020 |
— | ||
| replacement | |||||
|
04332
|
04332
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
04332-30030 |
from US $13.08 |
||
|
35108
|
35108
35108-30091 Housing Sub-Assy, Extension (Atm)[08.1984 - 10.1984] MX73..4FC..EFI; GX71,LX7#,RX70..4FC |
35108-30091 |
US $355.26 |
||
| replacement | |||||
|
35108
|
35108
35108-35040 Housing Sub-Assy, Extension (Atm)[08.1984 - 10.1984] MX73..4FC..EFI; GX71,LX7#,RX70..4FC |
35108-35040 |
US $375.65 |
||
|
35108
|
35108
35108-30092 Housing Sub-Assy, Extension (Atm)[10.1984 - 08.1988] GX71,LX7#,MX72,RX70,72..4FC |
35108-30092 |
US $355.26 |
||
| replacement | |||||
|
35108
|
35108
35108-35040 Housing Sub-Assy, Extension (Atm)[10.1984 - 08.1988] GX71,LX7#,MX72,RX70,72..4FC |
35108-35040 |
US $375.65 |
||
|
35108S
|
35108S
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
33145-30010 |
from US $2.30 |
||
|
35108T
|
35108T
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90303-38010 |
from US $1.91 |
||
|
35146
|
35146
33146-30010
Deflector, Extension Housing Dust(Mtm)
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
33146-30010 |
— | ||
| replacement | |||||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
33146-30020 |
from US $17.74 |
||
|
35182
|
35182
35182-22010
Gasket, Extension Housing (Atm)
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35182-22010 |
— | ||
| replacement | |||||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35182-28010 |
from US $7.14 |
||
|
35189A
|
35189A
35189-30010 Gasket, Extension Housing Bush Apply Tube[08.1986 - 08.1988] GX71,LX70,MX73,RX70,72..4FC |
35189-30010 |
US $5.77 |
||
|
35847A
|
35847A
35847-30020 Tube, Extension Housing Bush Apply[08.1986 - 08.1988] GX71,LX70,MX73,RX70,72..4FC |
35847-30020 |
US $5.42 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
