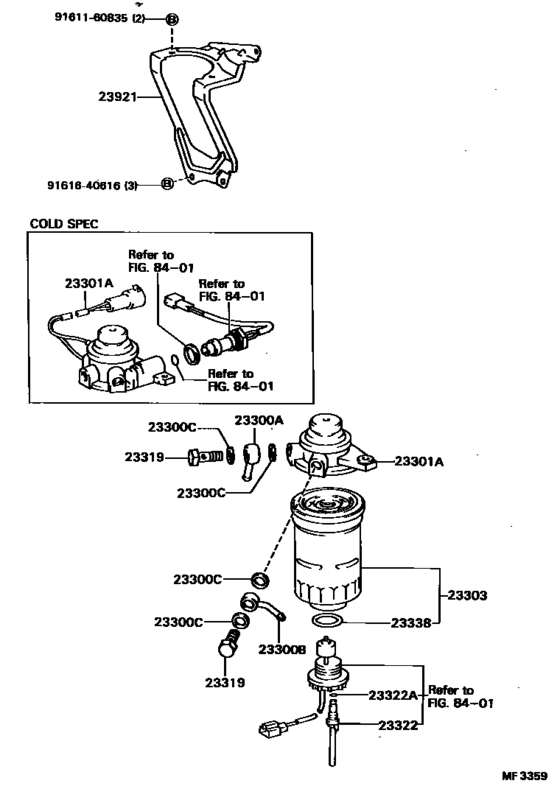

Fuel Filter ([08.1984 - 06.1986] (8408-8606)2L#) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- Europe
- Frame
- LX70
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300A
|
23300A
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[08.1984 - 06.1986] 2L#..LX7# |
90405-08016 |
— | ||
|
23300B
|
23300B
23323-54140 Union, Nipple(For Fuel Filter Outlet)[08.1984 - 06.1986] 2L#..LX7# |
23323-54140 |
US $23.44 |
||
|
23300C
|
23300C
22447-47030 Gasket, Nipple Union(For Fuel)[08.1984 - 06.1986] 2L#..LX7# |
22447-47030 |
US $0.84 |
||
|
23301A
|
23301A
23301-54280 Cap Assy, Fuel FilterFUEL FILTER [06.1986 - 08.1988] 2L#..LX7# |
23301-54280 |
US $183.46 |
||
|
23301A
|
23301A
23301-64020
Cap Assy, Fuel Filter
[08.1984 - 06.1986] 2L#..LX7# |
23301-64020 |
— | ||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[08.1984 - 08.1988] 2L#..LX7# |
23303-64010 |
from US $55.46 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[08.1984 - 08.1988] 2L#..LX7# |
23303-64010-00 |
— | ||
|
23319
|
23319
90099-18011
Screw, Fuel Pipe Follow
[08.1984 - 06.1986] 2L#..LX7# |
90099-18011 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[08.1984 - 08.1988] 2L#..LX7# |
23322-64010 |
from US $7.37 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[08.1984 - 08.1988] 2L#..LX7# |
23344-54010 |
from US $1.58 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[08.1984 - 08.1988] 2L#..LX7# |
23344-64010 |
from US $1.54 |
||
|
23921
|
23921
23921-54150 Support, Fuel FilterFUEL FILTER [08.1984 - 08.1988] 2L#..LX7# |
23921-54150 |
US $36.25 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161640616
|
9161640616
91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91616-40616 |
US $1.89 |
||
| replacement | |||||
|
9161640616
|
9161640616
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
