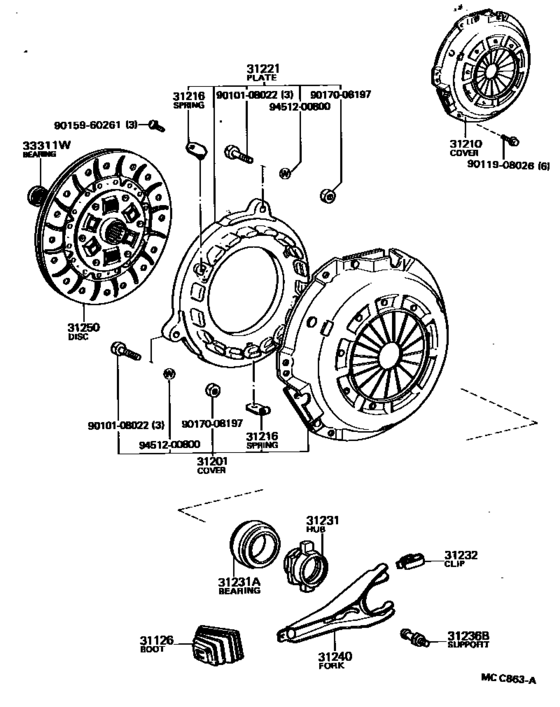

Clutch & Release Fork ([08.1984 - ] (8408- )GX71,LX7#,RX72..5F) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1986
- Sales region
- Europe
- Frame
- LX71
- grade
- GL
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1986
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- TD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1984 - 08.1988] GX71,LX7#,MX73..5F |
31126-20070 |
from US $12.69 |
||
|
31201
|
31201
31201-29115 Cover Sub-Assy, Clutch[08.1984 - 08.1986] LX7#..5F..EUG |
31201-29115 |
US $196.56 |
||
| replacement | |||||
|
31201
|
31201
31201-24010 Cover Sub-Assy, Clutch[08.1984 - 08.1986] LX7#..5F..EUG |
31201-24010 |
US $180.54 |
||
|
31210
|
31210
31210-24010
Cover Assy, Clutch
[08.1984 - 08.1986] LX7#..5F..EUG |
31210-24010 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-22161 Cover Assy, Clutch[08.1984 - 08.1986] LX7#..5F..EUG |
31210-22161 |
US $199.47 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[08.1984 - 08.1988] GX71,LX7#,RX7#,YX70..MTM |
31216-30010 |
— | ||
|
31221
|
31221
31221-39115
Plate, Clutch Pressure
[08.1984 - 08.1986] LX7#..5F..EUG |
31221-39115 |
— | ||
| replacement | |||||
|
31221
|
31221
31221-30100
Plate, Clutch Pressure
[08.1984 - 08.1986] LX7#..5F..EUG |
31221-30100 |
— | ||
|
31231
|
31231
31231-20090 Hub, Clutch Release Bearing[08.1984 - 08.1988] LX7#,RX7#..MTM |
31231-20090 |
US $21.77 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90363-40022 |
from US $40.89 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
31232-22010 |
from US $1.60 |
||
|
31236B
|
31236B
31236-30060 Ball, Release Fork[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20090 Fork Sub-Assy, Clutch Release[08.1984 - 08.1988] GX71,LX7#..5F |
31204-20090 |
US $37.97 |
||
|
31250
|
31250
31250-22180 Disc Assy, Clutch[08.1984 - 08.1986] LX7#..5F..EUG |
31250-22180 |
US $206.75 |
||
| replacement | |||||
|
31250
|
31250
31250-35222 Disc Assy, ClutchCLUTCH [08.1984 - 08.1986] LX7#..5F..EUG |
31250-35222 |
from US $238 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1984 - 08.1988] LX7#,MX73,RX7#,YX70..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1984 - 08.1988] LX7#,MX73,RX7#,YX70..MTM |
90363-12024 |
from US $5.67 |
||
|
9010108022
|
9010108022
90101-08022
Bolt, Clutch Pressure Plate
|
90101-08022 |
— | ||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9015960261
|
9015960261
90159-60261 New Genuine Part |
90159-60261 |
US $1.46 |
||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
