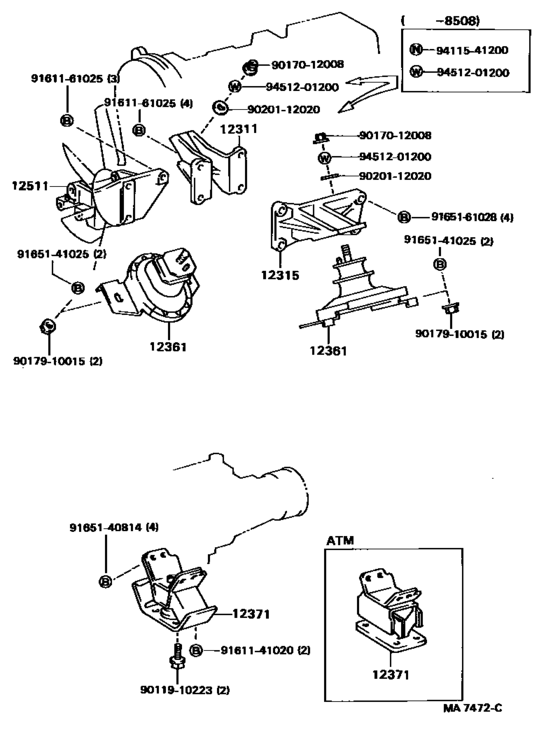

Mounting ([08.1984 - ] (8408- )2L#) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1986
- Sales region
- Europe
- Frame
- LX71
- grade
- GL
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1986
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- TD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-54070 Bracket, Engine Mounting, Front No.1 Rh[08.1984 - 08.1988] 2L#..LX7# |
12311-54070 |
US $43.24 |
||
|
12315
|
12315
12312-54040 Bracket, Engine Mounting, Front No.1 Lh[08.1984 - 08.1988] 2L#..LX7# |
12312-54040 |
US $55.62 |
||
|
12361
|
12361
12361-54150 Insulator, Engine Mounting, Front[08.1984 - 10.1984] 2L#..LX7# |
12361-54150 |
US $99.01 |
||
| replacement | |||||
|
12361
|
12361
12361-54181 Insulator, Engine Mounting, Front[08.1984 - 10.1984] 2L#..LX7# |
12361-54181 |
US $212.80 |
||
|
12361
|
12361
12361-54151 Insulator, Engine Mounting, Front[10.1984 - 07.1985] 2L#..LX7# |
12361-54151 |
US $99.01 |
||
| replacement | |||||
|
12361
|
12361
12361-54181 Insulator, Engine Mounting, Front[10.1984 - 07.1985] 2L#..LX7# |
12361-54181 |
US $212.80 |
||
|
12361
|
12361
12361-54152 Insulator, Engine Mounting, Front[07.1985 - 08.1988] 2L#..LX7# |
12361-54152 |
US $161.62 |
||
| replacement | |||||
|
12361
|
12361
12361-54181 Insulator, Engine Mounting, Front[07.1985 - 08.1988] 2L#..LX7# |
12361-54181 |
US $212.80 |
||
|
12371
|
12371
12371-34030 Insulator, Engine Mounting, Rear No.1[08.1984 - 08.1988] 21R,22R..RX7#; 2Y..YX70; 2L#..LX7#..5F |
12371-34030 |
from US $59.34 |
||
|
12511
|
12511
12511-54010 Bracket, Alternator, No.1[08.1984 - 08.1988] 2L#..LX7# |
12511-54010 |
US $117.94 |
||
|
9011910223
|
9011910223
90119-10223 Bolt(For Transaxle & Engine Setting) |
90119-10223 |
US $2.15 |
||
|
9017012008
|
9017012008
90170-12008 NUT |
90170-12008 |
US $2.87 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9020112020
|
9020112020
90201-12020 New Genuine Part |
90201-12020 |
US $2.87 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9165161028
|
9165161028
91651-61028 New Genuine Part |
91651-61028 |
US $1.31 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
