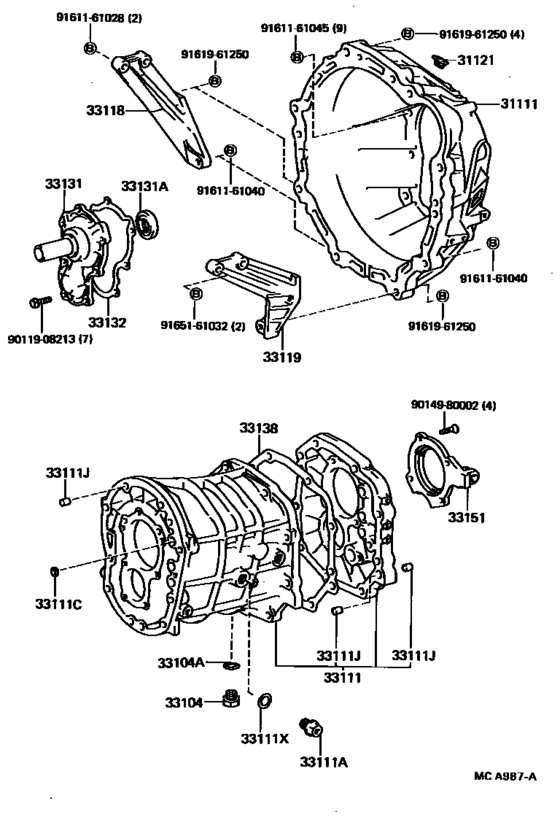

Clutch Housing & Transmission Case (Mtm) ([08.1984 - ] (8408- )LX7#..5F) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- LX71
- grade
- GL
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1986
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- TD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-22111 Housing, Clutch[08.1984 - 08.1988] LX7#..5F |
31111-22111 |
US $390.21 |
||
| replacement | |||||
|
31111
|
31111
31111-22114 Housing, Clutch[08.1984 - 08.1988] LX7#..5F |
31111-22114 |
US $266.45 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-22030 Case, Manual Transmission[08.1984 - 08.1988] LX7#,YX70..5F |
33101-22030 |
US $551.82 |
||
| replacements | |||||
|
33111
|
33111
33101-30070 Case, Manual Transmission[08.1984 - 08.1988] LX7#,YX70..5F |
33101-30070 |
US $624.62 |
||
|
33111
|
33111
33242-30080 Shaft, Gear Shift Fork, No.1[08.1984 - 08.1988] LX7#,YX70..5F |
33242-30080 |
US $56.78 |
||
|
33111A
|
33111A
90341-18002 Plug, No.1[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90341-18002 |
from US $3.59 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM OD=14 |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM L=16,OD=12 |
90250-12002 |
from US $1.27 |
||
|
33111X
|
33111X
90430-18008 Gasket[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90430-T0021 |
US $1.01 |
||
|
33118
|
33118
33118-25020 Plate, Stiffener, Rh(Mtm)[08.1984 - 08.1988] LX7#..5F |
33118-25020 |
US $22.01 |
||
|
33119
|
33119
33119-25020 Plate, Stiffener, Lh(Mtm)[08.1984 - 08.1988] LX7#..5F |
33119-25020 |
US $31.62 |
||
|
33131
|
33131
33131-22020 Retainer, Bearing, Front(Mtm)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
33131-22020 |
US $67.56 |
||
| replacement | |||||
|
33131
|
33131
33131-22021 Retainer, Bearing, Front(Mtm)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
33131-22021 |
US $64.79 |
||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
90311-30115 |
from US $3.94 |
||
|
33132
|
33132
33132-22010 Gasket, Front Bearing Retainer(Mtm)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
33132-22010 |
US $5.38 |
||
|
33138
|
33138
33142-22010 Gasket, Intermediate Plate[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
33142-22010 |
US $4.37 |
||
|
33151
|
33151
33107-22010 Retainer, Output Shaft Rear Bearing(Mtm)[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..MTM |
33107-22010 |
US $66.10 |
||
|
9011908213
|
9011908213
90119-08213 Bolt, W/washer(For Transmission Case Cover) |
90119-08213 |
US $3.23 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165161032
|
9165161032
91651-61032 BOLT |
91651-61032 |
US $2.06 |
||
