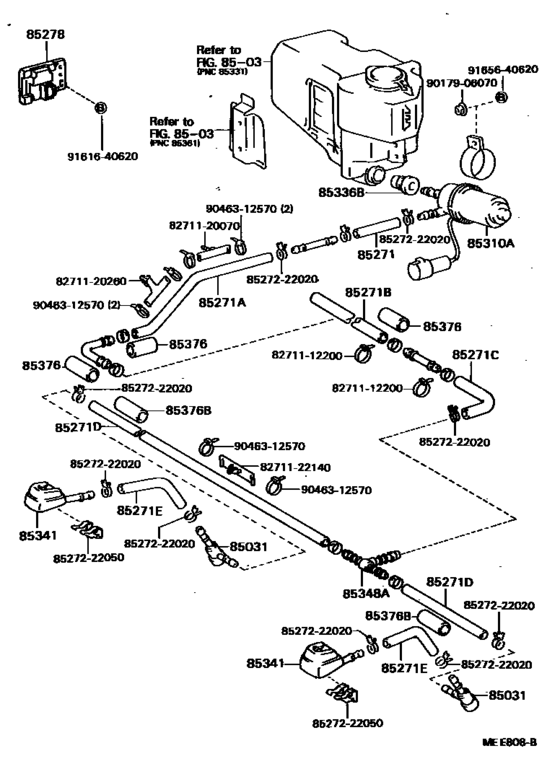

Headlamp Cleaner ([08.1984 - 08.1986] (8408-8608)LHD..EUR) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- LX71
- grade
- GL
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1986
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- TD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031
|
85031
85031-30020 Valve, Headlamp Cleaner Washer Hose[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85031-30020 |
from US $32.76 |
||
|
85271
|
85271
85375-20190 Hose, Headlamp Cleaner, No.2[08.1984 - 08.1986] GX71,LX7#,MX7#..LHD..EUR L=90 |
85375-20190 |
US $5.39 |
||
|
85271A
|
85271A
85375-22100 Hose, Headlamp Cleaner, No.3HEADLAMP CLEANER, NO.4 [08.1984 - 08.1986] GX71,LX7#,MX7#..LHD..EUR L=760 |
85375-22100 |
US $19.07 |
||
|
85271B
|
85271B
85375-22070 Hose, Headlamp Cleaner, No.3[08.1984 - 08.1986] GX71,LX7#,MX7#..LHD..EUR L=610 |
85375-22070 |
US $28.54 |
||
|
85271C
|
85271C
85271-22060 Hose, Headlamp Cleaner, No.3[08.1984 - 08.1986] GX71,LX7#,MX7#..LHD..EUR L=1070 |
85271-22060 |
US $11.07 |
||
|
85271D
|
85271D
85376-10150 Hose, Headlamp Cleaner, No.5[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR *H,L=750,L=750 |
85376-10150 |
US $26.06 |
||
| replacement | |||||
|
85271D
|
85271D
90445-14072 Hose, Headlamp Cleaner, No.1[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR *H,L=750,L=750 |
90445-14072 |
from US $18.82 |
||
|
85271D
|
85271D
85376-16020 Hose, Headlamp Cleaner, No.5[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR L=260 |
85376-16020 |
US $9.90 |
||
|
85271E
|
85271E
85271-22020 Hose, Headlamp Cleaner, No.6[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85271-22020 |
US $11.94 |
||
|
85278
|
85278
85276-22070 Relay, Cleaner ControlCLEANER CONTROL [08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85276-22070 |
US $189.28 |
||
|
85310A
|
85310A
85310-22100
Motor And Pump Assy, Headlamp Cleaner Washer
[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85310-22100 |
— | ||
| replacement | |||||
|
85310A
|
85310A
85310-95J02
Motor And Pump Assy, Headlamp Cleaner Washer
[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85310-95J02 |
— | ||
|
85336B
|
85336B
85336-10010 Bush, Windshield Washer Jar[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85336-10010 |
from US $3.71 |
||
|
85341
|
85341
85035-22120 Nozzle, Headlamp Cleaner WasherHEADLAMP CLEANER WASHER [08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85035-22120 |
US $43.68 |
||
|
85348A
|
85348A
85352-12010 Joint, Headlamp Cleaner Hose, No.1[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85352-12010 |
from US $5.87 |
||
|
85376
|
85376
85376-22140 Protector, Headlamp Cleaner Hose, No.1[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85376-22140 |
US $5.39 |
||
|
85376B
|
85376B
85376-22140 Protector, Headlamp Cleaner Hose, No.1[08.1984 - 08.1986] GX71,LX7#,MX7#..EUR |
85376-22140 |
US $5.39 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271120070
|
8271120070
82711-20070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20070 |
US $3.49 |
||
|
8271120260
|
8271120260
82711-20260 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20260 |
US $2.33 |
||
|
8271122140
|
8271122140
82711-22140 Wire, Fuse To Fuse(for Combustion Heater) |
82711-22140 |
US $3.84 |
||
|
8527222020
|
8527222020
85272-22020
Clamp, Headlamp Cleaner, No.1
|
85272-22020 |
— | ||
| replacement | |||||
|
8527222020
|
8527222020
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
from US $1.81 |
||
|
8527222050
|
8527222050
85272-22050 Cable Sub-assy, Headlamp Cleaner, Rh |
85272-22050 |
US $3.93 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
|
9161640620
|
9161640620
91616-40620 Bolt(For Oil Receiver Pipe) |
91616-40620 |
US $2.18 |
||
| replacement | |||||
|
9161640620
|
9161640620
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
