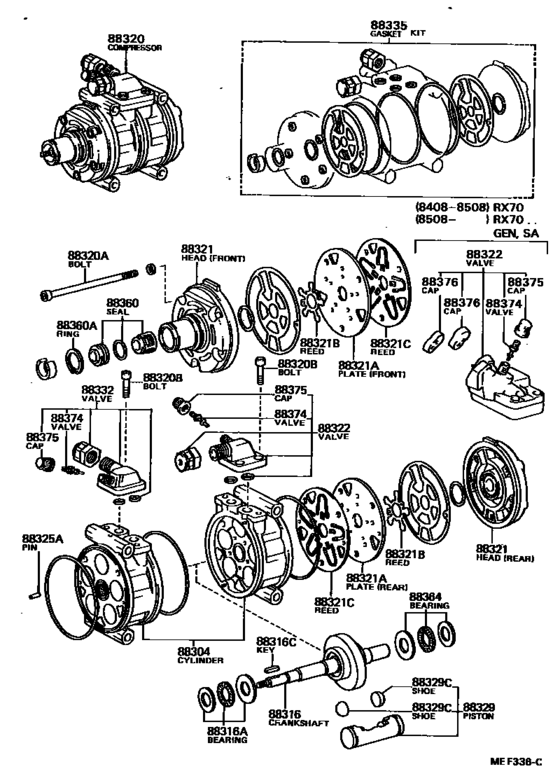

Heating & Air Conditioning - Compressor ([08.1984 - ] (8408-8608)RX70..ME ; (8408- )LX7#,RX7#..EUR, GEN,SA) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- LX71
- grade
- GL
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1986
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- TD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-14021
Cylinder Sub-Assy, Cooler Compressor
[08.1984 - 08.1988] LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
88304-14021 |
— | ||
|
88316
|
88316
88316-14011
Crankshaft, Cooler Compressor
[08.1984 - 08.1988] LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
88316-14011 |
— | ||
|
88316A
|
88316A
88366-14010
Bearing, Compressor Crankshaft, Front
[08.1984 - 08.1988] LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
88366-14010 |
— | ||
|
88316C
|
88316C
90099-13012
Key, Compressor Crankshaft
[08.1984 - 08.1988] LX7#,MX7#..(GL,GLX)..(ARL,EUR,GEN,SA) |
90099-13012 |
— | ||
|
88320
|
88320
88320-22330
Compressor Assy, Cooler
[08.1984 - 08.1988] LX7# 10P15C |
88320-22330 |
— | ||
|
88320A
|
88320A
90099-04958
Bolt, Through
[08.1984 - 08.1988] GX71,LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
90099-04958 |
— | ||
|
88320B
|
88320B
90099-04924
Bolt, Service Valve
[08.1984 - 08.1988] LX7# |
90099-04924 |
— | ||
|
88321
|
88321
88321-14011
Head, Cooler Compressor Cylinder
[08.1984 - 08.1988] GX71,LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) FR |
88321-14011 |
— | ||
|
88321
|
88321
88322-14011
Head, Cooler Compressor Cylinder
[08.1984 - 08.1988] GX71,LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) RR |
88322-14011 |
— | ||
|
88321A
|
88321A
88341-14010
Plate Sub-Assy, Valve
[08.1984 - 08.1988] GX71,LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) FR |
88341-14010 |
— | ||
|
88321A
|
88321A
88342-14010
Plate Sub-Assy, Valve
[08.1984 - 08.1988] GX71,LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) RR |
88342-14010 |
— | ||
|
88321B
|
88321B
88344-14011
Reed Sub-Assy, Valve
[08.1984 - 08.1988] GX71,LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
88344-14011 |
— | ||
|
88321C
|
88321C
88343-14011
Reed, Suction Valve
[08.1984 - 08.1988] GX71,LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
88343-14011 |
— | ||
|
88322
|
88322
88371-22150
Valve, Cooler Compressor Suction Service
[08.1984 - 08.1988] LX7# |
88371-22150 |
— | ||
|
88325A
|
88325A
90099-08058
Pin, Cylinder Block
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7# |
90099-08058 |
— | ||
|
88329
|
88329
88301-14020
Piston Sub-Assy, Cooler Compressor
[08.1984 - 08.1988] LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
88301-14020 |
— | ||
|
88329C
|
88329C
88313-14010
Shoe, Piston
[08.1984 - 08.1986] LX7#,MX7#,RX70 |
88313-14010 |
— | ||
|
88332
|
88332
88372-22130
Valve, Cooler Compressor Discharge Service
[08.1984 - 08.1988] LX7# |
88372-22130 |
— | ||
|
88335
|
88335
04881-10010
Gasket Kit, Cooler Compressor Overhaul
[08.1984 - 08.1988] LX7#,MX7#..(GL,GLX)..(ARL,EUR,GEN,SA) |
04881-10010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-28020
Gasket Kit, Overhaul
[08.1984 - 08.1988] LX7#,MX7#..(GL,GLX)..(ARL,EUR,GEN,SA) |
88335-28020 |
— | ||
|
88360
|
88360
88360-14020
Seal Assy, Cooler Compressor Shaft
[08.1984 - 01.1985] GX71..ME; GX71,LX7#,MX7#..ARL,EUR,GEN |
88360-14020 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-26020 Seal Assy, Cooler Compressor Shaft[08.1984 - 01.1985] GX71..ME; GX71,LX7#,MX7#..ARL,EUR,GEN |
88360-26020 |
US $128.54 |
||
|
88360
|
88360
88360-40010
Seal Assy, Cooler Compressor Shaft
[01.1985 - 08.1988] GX71,LX7#,MX7#..(GL,GLX)..(ARL,EUR,GEN,SA) |
88360-40010 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-26020 Seal Assy, Cooler Compressor Shaft[01.1985 - 08.1988] GX71,LX7#,MX7#..(GL,GLX)..(ARL,EUR,GEN,SA) |
88360-26020 |
US $128.54 |
||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
90096-90022 |
— | ||
|
88364
|
88364
88366-14010
Bearing, Compressor Crankshaft, Front
[08.1984 - 08.1988] LX7#,MX72,RX7#..EUR,GEN,SA;MX73..(GL,GLX)..(ARL,EUR,GEN,SA) |
88366-14010 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
88374-20020 |
US $5.73 |
||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[08.1984 - 08.1988] MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
88375-30270 |
— | ||
