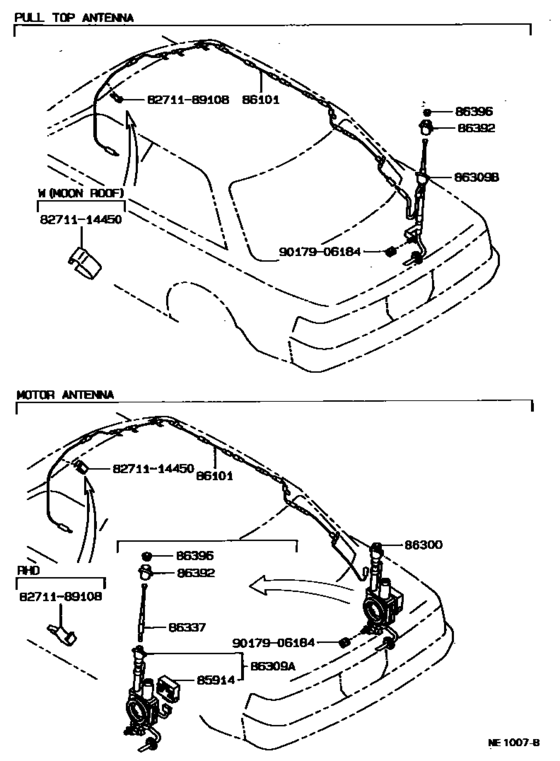

Antenna ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85914
|
85914
85914-30010 Relay, Motor Antenna Control[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
85914-30010 |
US $177.63 |
||
|
86101
|
86101
86101-22200 Cord Sub-Assy, AntennaANTENNA [08.1988 - 11.1988] GX81,LX80,MX81,RX8#..(GL,GLX)..GEN |
86101-22200 |
US $107.74 |
||
|
86101
|
86101
86101-22230 Cord Sub-Assy, AntennaANTENNA [08.1988 - 11.1988] GX81,LX80,MX81,RX8#..(GL,GLX)..GEN W(MOON ROOF) |
86101-22230 |
US $107.74 |
||
|
86300
|
86300
86300-22390 Antenna Assy, W/holderW/HOLDER [08.1988 - 02.1993] MX81..GD,GLX;GX81,LX80,MX83,RX8#..ARL,GEN; MX81,RX8#..(GL,XL)..V MOTOR ANTENNA |
86300-22390 |
US $413.50 |
||
| replacement | |||||
|
86300
|
86300
86300-22391
Antenna Assy, W/holder
[08.1988 - 02.1993] MX81..GD,GLX;GX81,LX80,MX83,RX8#..ARL,GEN; MX81,RX8#..(GL,XL)..V MOTOR ANTENNA |
86300-22391 |
— | ||
|
86309A
|
86309A
86309-22100
Pole Sub-Assy, Motor Antenna
[08.1988 - 03.1996] GX81,LX80,MX8#,RX8# |
86309-22100 |
— | ||
| replacement | |||||
|
86309A
|
86309A
86309-22101
Pole Sub-Assy, Motor Antenna
[08.1988 - 03.1996] GX81,LX80,MX8#,RX8# |
86309-22101 |
— | ||
|
86337
|
86337
86337-22390
Rod & Pipe, Sealed W/cable
[08.1988 - 03.1996] GX81,LX80,MX8#,RX8# |
86337-22390 |
— | ||
| replacement | |||||
|
86337
|
86337
86337-2B040
Rod, Antenna
[08.1988 - 03.1996] GX81,LX80,MX8#,RX8# |
86337-2B040 |
— | ||
|
86392
|
86392
86392-22040
Ornament, Antenna
[08.1988 - 02.1993] MX81..GD,GLX;GX81,LX80,MX83,RX8#..ARL,GEN; MX81,RX8#..(GL,XL)..V MOTOR ANTENNA |
86392-22040 |
— | ||
|
86396
|
86396
86396-89102 Nut, Antenna[08.1988 - 02.1993] MX81..GD,GLX;GX81,LX80,MX83,RX8#..ARL,GEN; MX81,RX8#..(GL,XL)..V MOTOR ANTENNA |
86396-89102 |
from US $3.32 |
||
|
8271114450
|
8271114450
82711-14450
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-14450 |
— | ||
|
8271189108
|
8271189108
82711-89108 Wire, Fuse To Fuse(for Combustion Heater) |
82711-89108 |
US $2.53 |
||
|
9017906184
|
9017906184
90179-06184 New Genuine Part |
90179-06184 |
US $1.02 |
||
