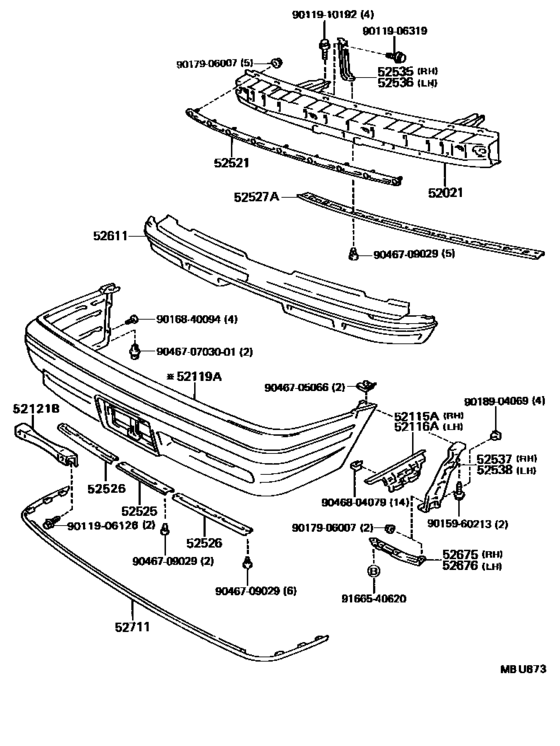

Front Bumper & Bumper Stay ([08.1990 - ] (9008- )GX81,LX80,MX83,RX80) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-22230 Reinforcement Sub-Assy, Front Bumper[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
52021-22230 |
US $477.57 |
||
|
52021
|
52021
52021-22260 Reinforcement Sub-Assy, Front Bumper[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52021-22260 |
US $473.20 |
||
|
52115A
|
52115A
52115-22140
Support, Front Bumper Side, Rh
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
52115-22140 |
— | ||
|
52115A
|
52115A
52115-22160 Support, Front Bumper Side, Rh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52115-22160 |
US $21.69 |
||
|
52116A
|
52116A
52116-22120
Support, Front Bumper Side, Lh
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
52116-22120 |
— | ||
|
52116A
|
52116A
52116-22130 Support, Front Bumper Side, Lh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52116-22130 |
US $21.69 |
||
|
52119A
|
52119A
52119-22360
Cover, Front Bumper
[08.1990 - 02.1993] LX80,RX80 |
52119-22360 |
— | ||
|
52119A
|
52119A
52119-22550 Cover, Front Bumper[08.1988 - 08.1990] LX80,MX83,RX8#..(GL,XL)..(ARL,GEN) |
52119-22550 |
US $554.74 |
||
| replacement | |||||
|
52119A
|
52119A
52119-22917 Cover, Front BumperFRONT BUMPER [08.1988 - 08.1990] LX80,MX83,RX8#..(GL,XL)..(ARL,GEN) |
52119-22917 |
US $653.74 |
||
|
52119A
|
52119A
52119-22917 Cover, Front BumperFRONT BUMPER [08.1988 - 08.1990] LX80,RX8#..GEN W/O(PAINTED); GX81,MX8#..GLX W/O(PAINTED) |
52119-22917 |
US $653.74 |
||
|
52119A
|
52119A
52119-22922 Cover, Front Bumper[08.1990 - 02.1993] GX81,MX83; LX80,RX80 W(PAINTED COLLOR BUMPER) |
52119-22922 |
US $860.50 |
||
|
52121B
|
52121B
52121-22110 Bracket, Front Licence Plate MountingFRONT LICENCE PLATE MOUNTING [08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52121-22110 |
US $28.54 |
||
|
52521
|
52521
52521-22100
Retainer, Front Bumper, Upper Center
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
52521-22100 |
— | ||
|
52525
|
52525
52525-22060 Retainer, Front Bumper, Lower Center[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
52525-22060 |
US $16.16 |
||
|
52525
|
52525
52525-22070 Retainer, Front Bumper, Lower Center[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52525-22070 |
US $22.86 |
||
|
52526
|
52526
52526-22060 Retainer, Front Bumper, Lower Side[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
52526-22060 |
US $22.86 |
||
|
52526
|
52526
52526-22070 Retainer, Front Bumper, Lower Side[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52526-22070 |
US $22.86 |
||
|
52527A
|
52527A
52527-22020
Retainer, Front Bumper, Lower Center No.2
[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52527-22020 |
— | ||
|
52535
|
52535
52535-22010 Retainer, Front Bumper Side, Rh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52535-22010 |
US $8.88 |
||
|
52535
|
52535
52535-22020 Retainer, Front Bumper Side, Rh[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
52535-22020 |
US $8.88 |
||
|
52536
|
52536
52536-22010 Retainer, Front Bumper Side, Lh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52536-22010 |
US $8.88 |
||
|
52536
|
52536
52536-22020 Retainer, Front Bumper Side, Lh[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
52536-22020 |
US $8.88 |
||
|
52537
|
52537
52537-22020 Retainer, Front Bumper End, Rh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52537-22020 |
US $37.42 |
||
|
52538
|
52538
52538-22020 Retainer, Front Bumper End, Lh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52538-22020 |
US $37.42 |
||
|
52611
|
52611
52611-22110 Absorber, Front Bumper Energy[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
52611-22110 |
US $230.05 |
||
|
52611
|
52611
52611-22150 Absorber, Front Bumper Energy[08.1990 - 08.1991] GX81,LX80,MX83,RX80 |
52611-22150 |
US $230.05 |
||
| replacement | |||||
|
52611
|
52611
52611-22151 Absorber, Front Bumper Energy[08.1990 - 08.1991] GX81,LX80,MX83,RX80 |
52611-22151 |
US $227.14 |
||
|
52611
|
52611
52611-22151 Absorber, Front Bumper Energy[08.1991 - 02.1993] GX81,LX80,MX83,RX80 |
52611-22151 |
US $227.14 |
||
|
52675
|
52675
52675-22010
Support, Front Bumper Lower Side, Rh
[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52675-22010 |
— | ||
|
52676
|
52676
52676-22010
Support, Front Bumper Lower Side, Lh
[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
52676-22010 |
— | ||
|
52711
|
52711
52711-22050
Moulding, Front Bumper
[08.1988 - 04.1989] GX81,LX80,MX8#,RX8#..ARL,GEN BLACK |
52711-22050 |
— | ||
| replacement | |||||
|
52711
|
52711
52711-22051 Moulding, Front Bumper[08.1988 - 04.1989] GX81,LX80,MX8#,RX8#..ARL,GEN BLACK |
52711-22051 |
US $74.26 |
||
|
52711
|
52711
52711-22051 Moulding, Front Bumper[04.1989 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN BLACK |
52711-22051 |
US $74.26 |
||
|
52711
|
52711
52711-22140 Moulding, Front Bumper[08.1990 - 03.1992] GX81,LX80,MX83,RX80 |
52711-22140 |
US $57.66 |
||
| replacement | |||||
|
52711
|
52711
52711-22141 Moulding, Front Bumper[08.1990 - 03.1992] GX81,LX80,MX83,RX80 |
52711-22141 |
from US $57.66 |
||
|
52711
|
52711
52711-22141 Moulding, Front Bumper[03.1992 - 02.1993] GX81,LX80,MX83,RX80 |
52711-22141 |
from US $57.66 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9011906319
|
9011906319
90119-06319 New Genuine Part |
90119-06319 |
US $1.60 |
||
| replacement | |||||
|
9011906319
|
9011906319
91611-F0612 New Genuine Part |
91611-F0612 |
US $1.60 |
||
|
9011910192
|
9011910192
90119-10192 New Genuine Part |
90119-10192 |
US $1.22 |
||
| replacement | |||||
|
9011910192
|
9011910192
90119-10185 Bolt |
90119-10185 |
from US $4.30 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9016840094
|
9016840094
90168-40094
New Genuine Part
|
90168-40094 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9018904069
|
9018904069
90189-04069 CLIP |
90189-04069 |
from US $0.70 |
||
|
9046705066
|
9046705066
90467-05066
CLIP
|
90467-05066 |
— | ||
|
9046709029
|
9046709029
90467-09029 Clip(For Front Bumper Retainer) |
90467-09029 |
US $2.33 |
||
|
9046804079
|
9046804079
90468-04079 Clip(For Front Bumper), No.2 |
90468-04079 |
US $2.87 |
||
|
9166540620
|
9166540620
91665-40620
New Genuine Part
|
91665-40620 |
— | ||
| replacement | |||||
|
9166540620
|
9166540620
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
904670703001
|
904670703001
90467-07030-01 Clip(For Radiator Sopport Extension) |
90467-07030-01 |
US $2.15 |
||
