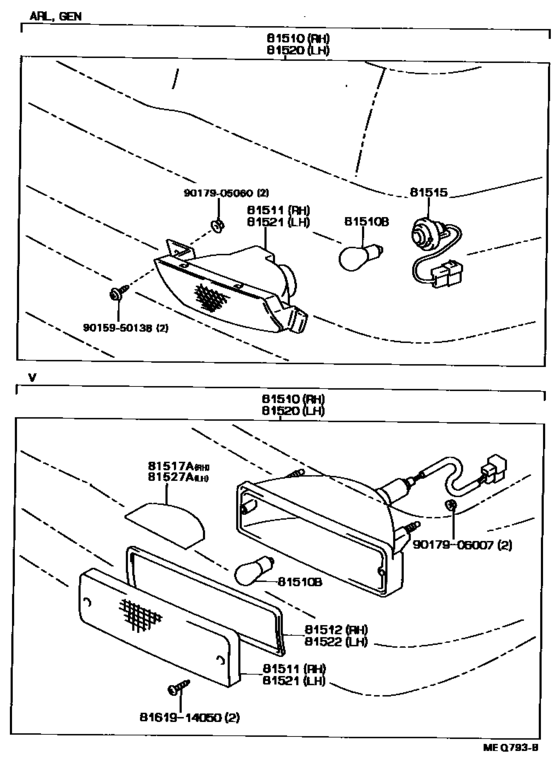

Front Turn Signal Lamp ([08.1990 - ] (9008- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81510
|
81510
81510-80062
Lamp Assy, Front Turn Signal, Rh
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
81510-80062 |
— | ||
|
81510
|
81510
81510-80078 Lamp Assy, Front Turn Signal, Rh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
81510-80078 |
US $67.70 |
||
|
81510B
|
81510B
99132-11210 Bulb (12V 21W)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 12V 21W |
99132-11210 |
from US $2.81 |
||
|
81511
|
81511
81511-22330 Lens, Front Turn Signal Lamp, Rh[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
81511-22330 |
US $43.53 |
||
|
81511
|
81511
81511-22331 Lens, Front Turn Signal Lamp, Rh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
81511-22331 |
US $53.73 |
||
|
81515
|
81515
81515-22330 Wire Sub-Assy, Front Turn Signal Lamp Body[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
81515-22330 |
US $19.36 |
||
|
81515
|
81515
81515-22331 Wire Sub-Assy, Front Turn Signal Lamp Body[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
81515-22331 |
US $19.36 |
||
|
81520
|
81520
81520-80062
Lamp Assy, Front Turn Signal, Lh
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
81520-80062 |
— | ||
|
81520
|
81520
81520-80078 Lamp Assy, Front Turn Signal, Lh[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
81520-80078 |
US $67.70 |
||
|
81521
|
81521
81521-22330
Lens, Front Turn Signal Lamp, Lh
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..ARL,GEN |
81521-22330 |
— | ||
|
81521
|
81521
81521-22331
Lens, Front Turn Signal Lamp, Lh
[08.1990 - 02.1993] GX81,LX80,MX83,RX80 |
81521-22331 |
— | ||
|
8161914050
|
8161914050
81619-14050 New Genuine Part |
81619-14050 |
US $3.94 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9017905060
|
9017905060
90179-05060 LEXNUT |
90179-05060 |
from US $0.78 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
