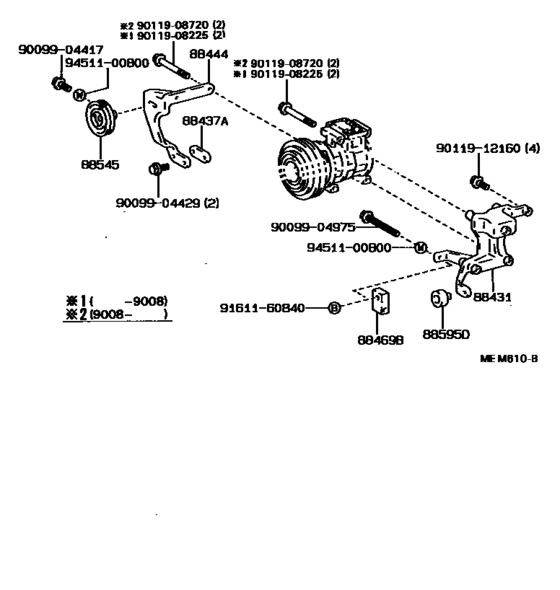

Heating & Air Conditioning - Compressor ([08.1988 - 02.1993] (8808-9302)LX80) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-22270
Bracket, Compressor Mounting, No.1
[08.1988 - 08.1990] LX80 |
88431-22270 |
— | ||
|
88431
|
88431
88431-22330
Bracket, Compressor Mounting, No.1
[08.1990 - 12.1991] LX80 |
88431-22330 |
— | ||
|
88431
|
88431
88431-22331
Bracket, Compressor Mounting, No.1
[12.1991 - 02.1993] LX80 |
88431-22331 |
— | ||
|
88437A
|
88437A
88437-22050
Bracket, Compressor Mounting, No.2
[08.1988 - 08.1990] LX80 |
88437-22050 |
— | ||
|
88444
|
88444
88444-22080
Bracket, Idle Pulley
[08.1988 - 08.1990] LX80 |
88444-22080 |
— | ||
|
88444
|
88444
88444-22100
Bracket, Idle Pulley
[12.1991 - 02.1993] LX80 LH |
88444-22100 |
— | ||
|
88444
|
88444
88444-30280
Bracket, Idle Pulley
[08.1990 - 12.1991] LX80 RH |
88444-30280 |
— | ||
|
88469B
|
88469B
88469-30280 Collar, Adjusting[08.1988 - 02.1993] LX80 |
88469-30280 |
from US $1.40 |
||
|
88545
|
88545
88440-35010 Pulley Assy, Idle[08.1988 - 08.1996] LX80,RX8#..LHD |
88440-35010 |
from US $59.98 |
||
|
88595D
|
88595D
88440-26070 Pulley Assy, Idle[08.1988 - 02.1993] LX80 |
88440-26070 |
from US $64.18 |
||
|
9009904417
|
9009904417
90099-04417
Bolt, Idle Pulley
|
90099-04417 |
— | ||
|
9009904429
|
9009904429
90099-04429
New Genuine Part
|
90099-04429 |
— | ||
|
9009904975
|
9009904975
90099-04975
New Genuine Part
|
90099-04975 |
— | ||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011908720
|
9011908720
90119-08720
BOLT WWASHER
|
90119-08720 |
— | ||
|
9011912160
|
9011912160
90119-12160 BOLT WWASHER |
90119-12160 |
US $2.69 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
