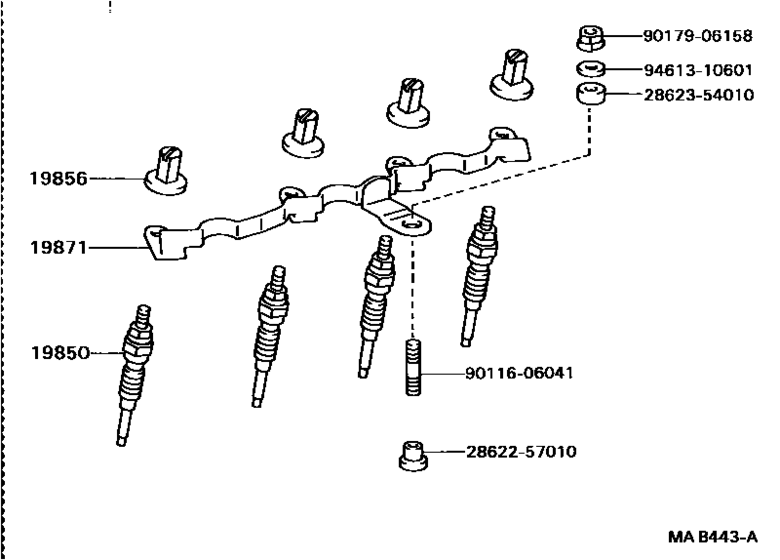

Ignition Coil & Spark Plug ([08.1988 - 02.1993] (8808-9302)2L) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19850
|
19850
19850-54090 Plug Assy, Glow[08.1988 - 02.1993] 2L..LX80 *BV-GV=12V-11V |
19850-54090 |
from US $25.35 |
||
|
19856
|
19856
90179-04019 Nut, Connecting(For Glow Plug)[08.1988 - 02.1993] 2L..LX80 |
90179-04019 |
US $2.15 |
||
|
19871
|
19871
19871-54020 Connector, Glow Plug No.1[08.1988 - 02.1993] 2L..LX80 |
19871-54020 |
from US $9.81 |
||
| replacement | |||||
|
19871
|
19871
19871-05010
Connector, Glow Plug No.1
[08.1988 - 02.1993] 2L..LX80 |
19871-05010 |
— | ||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9011606041
|
9011606041
90116-06041
Bolt, Stud(For Intake Manifold To Glow Plug Connector No.1)
|
90116-06041 |
— | ||
| replacement | |||||
|
9011606041
|
9011606041
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.61 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
