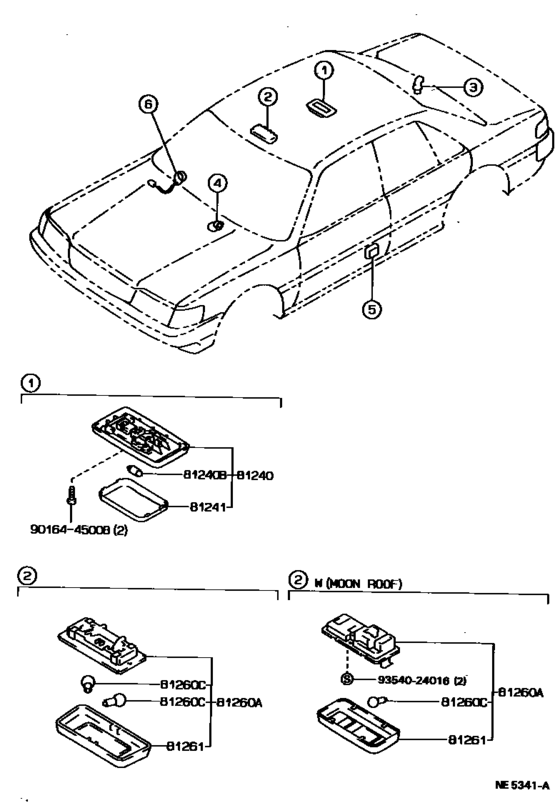

Interior Lamp ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81240
|
81240
81240-22100-02
Lamp Assy, Room, No.1
[08.1990 - 08.1996] GX81,LX80,MX8#,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
81240-22100-02 |
— | ||
| replacement | |||||
|
81240
|
81240
81240-22100-13
Lamp Assy, Room, No.1
[08.1990 - 08.1996] GX81,LX80,MX8#,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
81240-22100-13 |
— | ||
|
81240
|
81240
81240-22100-04 Lamp Assy, Room, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..GD,GL,GLX BLUE,TRIM8# |
81240-22100-04 |
US $41.93 |
||
| replacement | |||||
|
81240
|
81240
81240-22100-13
Lamp Assy, Room, No.1
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..GD,GL,GLX BLUE,TRIM8# |
81240-22100-13 |
— | ||
|
81240
|
81240
81240-22100-06
Lamp Assy, Room, No.1
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..GD,GL,GLX SABLE,TRIM3#,4# |
81240-22100-06 |
— | ||
| replacement | |||||
|
81240
|
81240
81240-22100-13
Lamp Assy, Room, No.1
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8#..GD,GL,GLX SABLE,TRIM3#,4# |
81240-22100-13 |
— | ||
|
81240
|
81240
81240-22100-13
Lamp Assy, Room, No.1
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX MEDIUM GRAY,TRIM1# |
81240-22100-13 |
— | ||
|
81240
|
81240
81240-22110-04 Lamp Assy, Room, No.1[08.1988 - 08.1990] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX W(MOON ROOF),BLUE,TRIM8# |
81240-22110-04 |
US $41.93 |
||
| replacement | |||||
|
81240
|
81240
81240-20090-B0
Lamp Assy, Room, No.1
[08.1988 - 08.1990] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX W(MOON ROOF),BLUE,TRIM8# |
81240-20090-B0 |
— | ||
|
81240
|
81240
81240-22110-06 Lamp Assy, Room, No.1[08.1988 - 08.1990] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX W(MOON ROOF),SABLE,TRIM3#,4# |
81240-22110-06 |
US $41.93 |
||
| replacement | |||||
|
81240
|
81240
81240-20090-B0
Lamp Assy, Room, No.1
[08.1988 - 08.1990] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX W(MOON ROOF),SABLE,TRIM3#,4# |
81240-20090-B0 |
— | ||
|
81240
|
81240
81240-22110-12
Lamp Assy, Room, No.1
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),NEW MAROON,TRIM3# |
81240-22110-12 |
— | ||
| replacement | |||||
|
81240
|
81240
81240-20090-B0
Lamp Assy, Room, No.1
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),NEW MAROON,TRIM3# |
81240-20090-B0 |
— | ||
|
81240
|
81240
81240-22110-13 Lamp Assy, Room, No.1[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),MEDIUM GRAY,TRIM1# |
81240-22110-13 |
US $41.93 |
||
| replacement | |||||
|
81240
|
81240
81240-20090-B0
Lamp Assy, Room, No.1
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),MEDIUM GRAY,TRIM1# |
81240-20090-B0 |
— | ||
|
81240B
|
81240B
99132-12100 Bulb, Room Lamp, No.1[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 12V 10W |
99132-12100 |
from US $2.03 |
||
| replacement | |||||
|
81240B
|
81240B
99132121001 99132121001[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 12V 10W |
99132121001 |
from US $1.79 |
||
|
81241
|
81241
81241-22110
Lens, Room Lamp, No.1
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..GD,GL,GLX |
81241-22110 |
— | ||
|
81260A
|
81260A
81260-22100-02 Lamp Assy, Map[08.1990 - 08.1996] GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
81260-22100-02 |
US $115.02 |
||
| replacement | |||||
|
81260A
|
81260A
81260-43030-B0 Lamp Assy, Map[08.1990 - 08.1996] GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
81260-43030-B0 |
US $92.60 |
||
|
81260A
|
81260A
81260-22100-03 Lamp Assy, Map[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# MEDIUM GRAY,TRIM1# |
81260-22100-03 |
US $116.48 |
||
| replacement | |||||
|
81260A
|
81260A
81260-43030-B0 Lamp Assy, Map[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# MEDIUM GRAY,TRIM1# |
81260-43030-B0 |
US $92.60 |
||
|
81260A
|
81260A
81260-22100-06 Lamp Assy, Map[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# LIGHT SABLE,TRIM4# |
81260-22100-06 |
US $116.48 |
||
| replacement | |||||
|
81260A
|
81260A
81260-43030-B0 Lamp Assy, Map[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# LIGHT SABLE,TRIM4# |
81260-43030-B0 |
US $92.60 |
||
|
81260A
|
81260A
81260-22130-04 Lamp Assy, Map[08.1988 - 08.1990] LX80,MX81,RX8#..GL BLUE,TRIM8#; GX81,MX8#..GD,GLX W(MOON ROOF),BLUE,TRIM8# |
81260-22130-04 |
US $198.02 |
||
| replacement | |||||
|
81260A
|
81260A
81260-22130-B0
Lamp Assy, Map
[08.1988 - 08.1990] LX80,MX81,RX8#..GL BLUE,TRIM8#; GX81,MX8#..GD,GLX W(MOON ROOF),BLUE,TRIM8# |
81260-22130-B0 |
— | ||
|
81260A
|
81260A
81260-22130-06 Lamp Assy, Map[08.1988 - 08.1990] LX80,MX81,RX8#..GL LIGHT SABLE,TRIM3#,4#; GX81,MX8#..GD,GLX W(MOON ROOF),LIGHT SABLE,TRIM3#,4# |
81260-22130-06 |
US $196.56 |
||
| replacement | |||||
|
81260A
|
81260A
81260-22130-B0
Lamp Assy, Map
[08.1988 - 08.1990] LX80,MX81,RX8#..GL LIGHT SABLE,TRIM3#,4#; GX81,MX8#..GD,GLX W(MOON ROOF),LIGHT SABLE,TRIM3#,4# |
81260-22130-B0 |
— | ||
|
81260A
|
81260A
81260-22130-23 Lamp Assy, Map[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),MEDIUM GRAY,TRIM1# |
81260-22130-23 |
US $196.56 |
||
| replacement | |||||
|
81260A
|
81260A
81260-22130-B0
Lamp Assy, Map
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),MEDIUM GRAY,TRIM1# |
81260-22130-B0 |
— | ||
|
81260A
|
81260A
81260-22130-32
Lamp Assy, Map
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),NEW MAROON,TRIM3# |
81260-22130-32 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-22130-B0
Lamp Assy, Map
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),NEW MAROON,TRIM3# |
81260-22130-B0 |
— | ||
|
81260C
|
81260C
90981-12014 Bulb, Room Lamp, No.1[08.1988 - 08.1990] GX81,MX8#..GD,GLX 12V 10W,W(MOON ROOF); LX80,MX81,RX8#..GL 12V 10W,W(MOON ROOF) |
90981-12014 |
from US $3.05 |
||
|
81261
|
81261
81261-22100-06 Lens And Cover, Map Lamp[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# LIGHT SABLE,TRIM4# |
81261-22100-06 |
US $40.48 |
||
|
81261
|
81261
81261-22100-B0
Lens And Cover, Map Lamp
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# MIDIUM GRAY,TRIM1# |
81261-22100-B0 |
— | ||
| replacement | |||||
|
81261
|
81261
81261-22100-B1 Lens And Cover, Map Lamp[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# MIDIUM GRAY,TRIM1# |
81261-22100-B1 |
US $32.85 |
||
|
81261
|
81261
81261-22100-D0 Lens And Cover, Map Lamp[08.1990 - 08.1996] GX81,LX80,MX81,RX8# NEW MAROON,TRIM3# |
81261-22100-D0 |
US $40.33 |
||
| replacement | |||||
|
81261
|
81261
81261-22100-B1 Lens And Cover, Map Lamp[08.1990 - 08.1996] GX81,LX80,MX81,RX8# NEW MAROON,TRIM3# |
81261-22100-B1 |
US $32.85 |
||
|
81261
|
81261
81261-22130-04 Lens And Cover, Map Lamp[08.1988 - 08.1990] LX80,MX81,RX8#..GL LIGHT BLUE,TRIM8#; GX81,MX8#..GD,GLX W(MOON ROOF),LIGHT BLUE,TRIM8# |
81261-22130-04 |
US $33.63 |
||
|
81261
|
81261
81261-22130-06 Lens And Cover, Map Lamp[08.1988 - 08.1990] LX80,MX81,RX8#..GL LIGHT SABLE,TRIM3#,4#; GX81,MX8#..GD,GLX W(MOON ROOF),LIGHT SABLE,TRIM3#,4# |
81261-22130-06 |
US $33.63 |
||
| replacement | |||||
|
81261
|
81261
81261-22130-B0 Lens And Cover, Map Lamp[08.1988 - 08.1990] LX80,MX81,RX8#..GL LIGHT SABLE,TRIM3#,4#; GX81,MX8#..GD,GLX W(MOON ROOF),LIGHT SABLE,TRIM3#,4# |
81261-22130-B0 |
US $33.63 |
||
|
81261
|
81261
81261-22130-23 Lens And Cover, Map Lamp[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),MIDIUM GRAY,TRIM1# |
81261-22130-23 |
US $33.63 |
||
| replacement | |||||
|
81261
|
81261
81261-22130-B0 Lens And Cover, Map Lamp[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),MIDIUM GRAY,TRIM1# |
81261-22130-B0 |
US $33.63 |
||
|
81261
|
81261
81261-22130-32 Lens And Cover, Map Lamp[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX W(MOON ROOF),NEW MAROON,TRIM3# |
81261-22130-32 |
US $33.63 |
||
|
9016445008
|
9016445008
90164-45008 New Genuine Part |
90164-45008 |
US $1.46 |
||
|
9354024016
|
9354024016
93540-24016 New Genuine Part |
93540-24016 |
US $2.33 |
||
