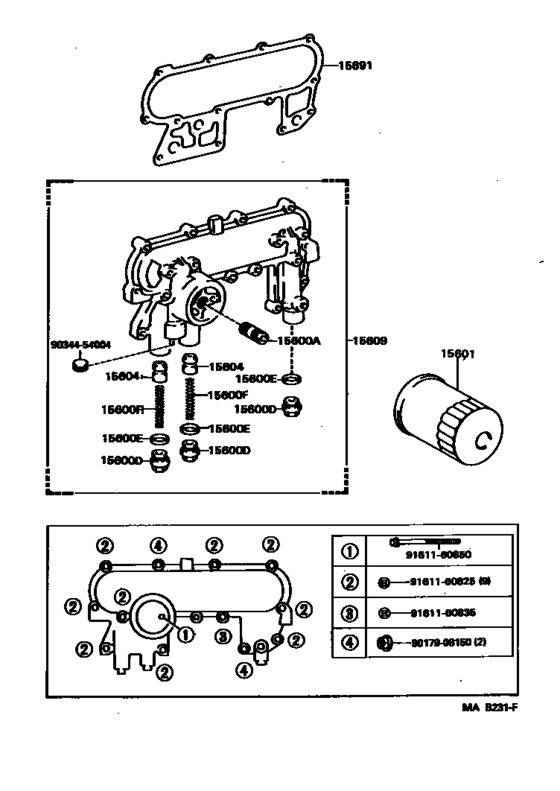

Oil Filter ([08.1988 - 02.1993] (8808-9302)2L) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
15116-54010
Screw, Oil Cooler Set
[08.1988 - 10.1989] 2L..LX80 |
15116-54010 |
— | ||
|
15600A
|
15600A
90404-19011 Union(For Oil Filter)[10.1989 - 02.1993] 2L..LX80 |
90404-19011 |
US $4.54 |
||
|
15600D
|
15600D
90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)[08.1988 - 02.1993] 2L..LX80 |
90341-18015 |
US $2.62 |
||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[07.1989 - 12.1991] 2L..LX80 |
90430-18001 |
US $3.05 |
||
|
15600E
|
15600E
90430-18011 Washer(For Oil Filter)[08.1988 - 07.1989] 2L..LX80 |
90430-18011 |
US $2.33 |
||
| replacement | |||||
|
15600E
|
15600E
90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)[08.1988 - 07.1989] 2L..LX80 |
90430-18001 |
US $3.05 |
||
|
15600E
|
15600E
90430-18021 Washer(For Oil Filter)[12.1991 - 02.1993] 2L..LX80 |
90430-18021 |
US $0.96 |
||
|
15600F
|
15600F
90501-16026 Spring, Compression(For Oil Filter)[08.1988 - 02.1993] 2L..LX80 |
90501-16026 |
from US $0.96 |
||
|
15601
|
15601
15600-41010
Filter Assy, Oil
[08.1988 - 02.1993] 2L..LX80 |
15600-41010 |
— | ||
| replacement | |||||
|
15601
|
15601
90915-40002 Filter Assy, Oil[08.1988 - 02.1993] 2L..LX80 |
90915-40002 |
US $24.70 |
||
|
15604
|
15604
15131-54010 Valve, Oil Pump Relief[08.1988 - 02.1993] 2L..LX80 |
15131-54010 |
from US $5.07 |
||
|
15609
|
15609
15609-54042
Bracket Sub-Assy, Oil Filter
[08.1988 - 02.1993] 2L..LX80 |
15609-54042 |
— | ||
|
15691
|
15691
15692-54030
Gasket, Oil Filter
[08.1988 - 02.1993] 2L..LX80 |
15692-54030 |
— | ||
| replacement | |||||
|
15691
|
15691
15692-54050 Gasket, Oil Filter[08.1988 - 02.1993] 2L..LX80 |
15692-54050 |
from US $8.33 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9034454004
|
9034454004
90344-54004 Plug, Taper Screw(For Oil Filter Bracket) |
90344-54004 |
US $4.80 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
