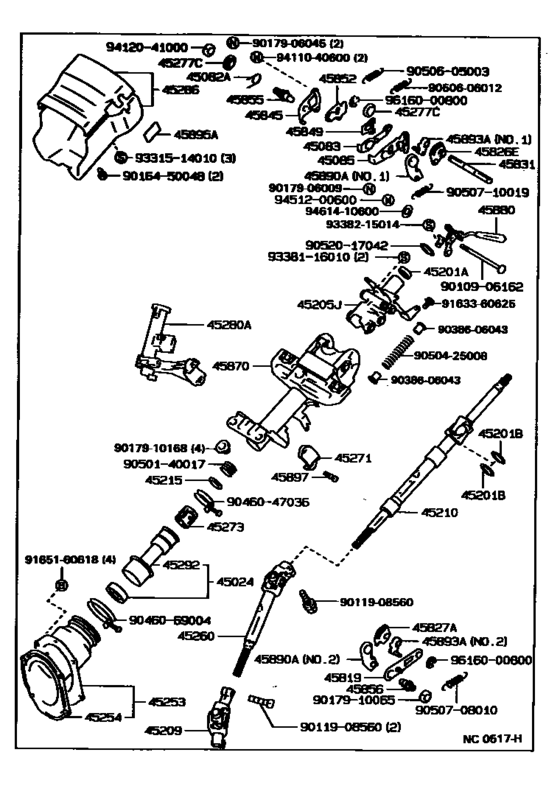

Steering Column & Shaft ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45024
|
45024
45024-22010 Cover Sub-Assy, Steering Column, Lower[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45024-22010 |
US $15.29 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
90363-18005 |
from US $5.75 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# T=1.20 |
90520-17042 |
from US $0.82 |
||
|
45205J
|
45205J
45205-22250
Tube Sub-Assy, Steering Column, Upper
[08.1988 - 09.1988] GX81,LX80,MX81,RX8#..LHD |
45205-22250 |
— | ||
| replacement | |||||
|
45205J
|
45205J
45205-22251 Tube Sub-Assy, Steering Column, UpperSTEERING COLUMN, UPPER [08.1988 - 09.1988] GX81,LX80,MX81,RX8#..LHD |
45205-22251 |
US $63.04 |
||
|
45205J
|
45205J
45205-22251 Tube Sub-Assy, Steering Column, UpperSTEERING COLUMN, UPPER [09.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45205-22251 |
US $63.04 |
||
|
45209
|
45209
45209-32020
Yoke Sub-Assy, Steering Sliding
[08.1988 - 11.1993] GX81,LX80,MX81,RX8# |
45209-32020 |
— | ||
| replacement | |||||
|
45209
|
45209
45209-16010 Yoke Sub-Assy, Steering Sliding[08.1988 - 11.1993] GX81,LX80,MX81,RX8# |
45209-16010 |
US $152.52 |
||
|
45210
|
45210
45210-22160
Shaft Assy, Steering Main
[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45210-22160 |
— | ||
| replacements | |||||
|
45210
|
45210
45203-22150 Shaft Sub-assy, Steering Intermediate, No.2[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45203-22150 |
US $160.16 |
||
|
45210
|
45210
45865-12060 Collar, Steering Main Shaft[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45865-12060 |
US $17.47 |
||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45215-12010 |
from US $1.54 |
||
|
45253
|
45253
45025-22100 Cover, Steering Column HoleSTEERING COLUMN HOLE [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45025-22100 |
US $55.62 |
||
|
45254
|
45254
45254-22080 Shield, Steering Column HoleSTEERING COLUMN HOLE [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45254-22080 |
US $25.48 |
||
|
45260
|
45260
45260-22140 Shaft Assy, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45260-22140 |
US $171.81 |
||
|
45271
|
45271
45271-12060 Clamp, Steering Column, Upper[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45271-12060 |
US $15.05 |
||
|
45273
|
45273
45273-22010 Bush, Steering Main Shaft[08.1988 - 09.1989] GX81,LX80,MX8#,RX8# |
45273-22010 |
US $7.13 |
||
|
45273
|
45273
45273-22020 Bush, Steering Main Shaft[09.1989 - 08.1996] GX81,LX80,MX8#,RX8# |
45273-22020 |
from US $6.14 |
||
|
45280A
|
45280A
45280-22480 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [08.1988 - 09.1989] GX81,MX81,RX8#..LHD..(GD,GL,GLX); LX80 W(POWER WINDOW) |
45280-22480 |
US $208.21 |
||
|
45280A
|
45280A
45280-22481 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [09.1989 - 02.1993] LX80 W(POWER WINDOW) |
45280-22481 |
US $205.30 |
||
|
45280A
|
45280A
45280-22490
Bracket Assy, Steering Column, Upper
[08.1988 - 09.1989] LX80;MX81,RX80..LHD..XL |
45280-22490 |
— | ||
| replacement | |||||
|
45280A
|
45280A
45280-22480 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [08.1988 - 09.1989] LX80;MX81,RX80..LHD..XL |
45280-22480 |
US $208.21 |
||
|
45280A
|
45280A
45280-22491
Bracket Assy, Steering Column, Upper
[09.1989 - 08.1993] LX80;MX81,RX8#..LHD..XL |
45280-22491 |
— | ||
| replacement | |||||
|
45280A
|
45280A
45280-22481 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [09.1989 - 08.1993] LX80;MX81,RX8#..LHD..XL |
45280-22481 |
US $205.30 |
||
|
45286
|
45286
45286-22937-02
Cover, Steering Column
[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
45286-22937-02 |
— | ||
|
45286
|
45286
45286-22937-03
Cover, Steering Column
[08.1990 - 02.1993] GX81,LX80,MX81,RX8#..LHD MEDIUM GRAY,TRIM1# |
45286-22937-03 |
— | ||
|
45286
|
45286
45286-22937-04
Cover, Steering Column
[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
45286-22937-04 |
— | ||
| replacement | |||||
|
45286
|
45286
45286-22937-03
Cover, Steering Column
[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
45286-22937-03 |
— | ||
|
45286
|
45286
45286-22937-06
Cover, Steering Column
[08.1988 - 02.1993] GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
45286-22937-06 |
— | ||
| replacement | |||||
|
45286
|
45286
45286-22937-03
Cover, Steering Column
[08.1988 - 02.1993] GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
45286-22937-03 |
— | ||
|
45292
|
45292
45292-22100 Seal, Main Shaft Lower Dust[08.1990 - 08.1996] GX81,LX80,MX8#,RX8# |
45292-22100 |
US $15.14 |
||
|
45292
|
45292
45292-22110 Seal, Main Shaft Lower DustMAIN SHAFT LOWER DUST [08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
45292-22110 |
US $9.03 |
||
|
45819
|
45819
45819-22040 Retainer, Tilt Lever[08.1988 - 02.1993] GX81,LX80,MX81,RX8#..LHD |
45819-22040 |
US $5.39 |
||
|
45826E
|
45826E
45826-22050 Lever, Steering Tilt[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45826-22050 |
US $3.84 |
||
|
45827A
|
45827A
45827-22030 Lever, Steering Tilt Sub[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45827-22030 |
US $3.84 |
||
|
45831
|
45831
45831-22020 Bolt, Tilt Lever Lock, No.1[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45831-22020 |
US $4.89 |
||
|
45855
|
45855
45855-22010 Bolt, Tilt Steering, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# OD=9.989-9.998 |
45855-22010 |
US $8.15 |
||
|
45855
|
45855
45855-22020 Bolt, Tilt Steering, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# OD=9.998-10.007 |
45855-22020 |
US $8.15 |
||
|
45855
|
45855
45856-22010 Bolt, Tilt Steering, No.1[08.1990 - 08.1996] GX81,LX80,MX81,RX8#..LHD OD=9.989-9.998 |
45856-22010 |
US $5.42 |
||
|
45856
|
45856
45856-22010 Bolt, Tilt Steering, No.1[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# OD=9.989-9.998 |
45856-22010 |
US $5.42 |
||
|
45870
|
45870
45870-22250
Tube Assy, Steering Column
[08.1988 - 09.1989] GX81,LX80,MX81,RX8#..LHD |
45870-22250 |
— | ||
| replacements | |||||
|
45870
|
45870
45870-22370 Tube Assy, Steering Column[08.1988 - 09.1989] GX81,LX80,MX81,RX8#..LHD |
45870-22370 |
US $107.74 |
||
|
45870
|
45870
45273-22020 Bush, Steering Main Shaft[08.1988 - 09.1989] GX81,LX80,MX81,RX8#..LHD |
45273-22020 |
from US $6.14 |
||
|
45870
|
45870
45870-22252
Tube Assy, Steering Column
[09.1989 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45870-22252 |
— | ||
| replacement | |||||
|
45870
|
45870
45870-22370 Tube Assy, Steering Column[09.1989 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45870-22370 |
US $107.74 |
||
|
45880
|
45880
45880-22010 Lever Assy, Steering Tilt[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
45880-22010 |
US $38.29 |
||
|
45890A
|
45890A
45890-20110 Pawl Assy, Tilt Steering[09.1989 - 08.1996] GX81,LX80,MX8#,RX8# NO.1 |
45890-20110 |
US $8.74 |
||
|
45890A
|
45890A
45890-22080
Pawl Assy, Tilt Steering
[08.1988 - 09.1989] GX81,LX80,MX8#,RX8# NO.1 |
45890-22080 |
— | ||
| replacement | |||||
|
45890A
|
45890A
45890-20110 Pawl Assy, Tilt Steering[08.1988 - 09.1989] GX81,LX80,MX8#,RX8# NO.1 |
45890-20110 |
US $8.74 |
||
|
45890A
|
45890A
45890-22090 Pawl Assy, Tilt Steering[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# NO.2 |
45890-22090 |
US $11.53 |
||
|
45893A
|
45893A
45893-22030 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK 1 |
45893-22030 |
US $7.13 |
||
|
45893A
|
45893A
45893-22040 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK 2 |
45893-22040 |
US $7.13 |
||
|
45893A
|
45893A
45893-22050 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK 3 |
45893-22050 |
US $7.13 |
||
|
45893A
|
45893A
45893-22060 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK 4 |
45893-22060 |
from US $5.62 |
||
|
45893A
|
45893A
45893-22070 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK 5 |
45893-22070 |
US $7.13 |
||
|
45893A
|
45893A
45893-22080 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK A |
45893-22080 |
US $7.13 |
||
|
45893A
|
45893A
45893-22090 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK B |
45893-22090 |
US $7.13 |
||
|
45893A
|
45893A
45893-22100 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK C |
45893-22100 |
US $7.13 |
||
|
45893A
|
45893A
45893-22110 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK D |
45893-22110 |
from US $5.62 |
||
|
45893A
|
45893A
45893-22120 Stopper, Tilt Steering Pawl[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# MARK E |
45893-22120 |
US $7.13 |
||
|
45895A
|
45895A
45895-22110
Plate, Tilt Steering Caution
[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
45895-22110 |
— | ||
|
45897
|
45897
45897-22080 Bolt, Steering Lock Set[08.1988 - 02.1993] GX81,LX80,MX8#,RX8# |
45897-22080 |
US $10.63 |
||
|
9010906162
|
9010906162
90109-06162 Bolt(For Steering Tilt Lever) |
90109-06162 |
US $1.75 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.47 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.86 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
|
9017910168
|
9017910168
90179-10168 New Genuine Part |
90179-10168 |
US $1.75 |
||
|
9038606043
|
9038606043
90386-06043 Bush(For Steering Column Tube) |
90386-06043 |
US $0.96 |
||
|
9046047036
|
9046047036
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet) |
90460-47036 |
US $3.94 |
||
|
9046069004
|
9046069004
90460-69004 New Genuine Part |
90460-69004 |
US $3.06 |
||
|
9050140017
|
9050140017
90501-40017 Spring, Compression(For Steering Main Shaft) |
90501-40017 |
from US $3.32 |
||
|
9050425008
|
9050425008
90504-25008 Spring(For Steering Column Tube) |
90504-25008 |
US $5.82 |
||
|
9050605003
|
9050605003
90506-05003 Spring, Tension(For Tilt Memory Plate Sub-Assy No.1) |
90506-05003 |
US $1.89 |
||
|
9050606012
|
9050606012
90506-06012 Spring, Tension(For Tilt Memory Plate Sub-Assy No.1) |
90506-06012 |
US $2.33 |
||
|
9050708010
|
9050708010
90507-08010 Spring, Tension(For Steering Tilt Lever) |
90507-08010 |
US $1.16 |
||
|
9050710019
|
9050710019
90507-10019 Spring, Tension(For Tilt Steering Pawl Stopper) |
90507-10019 |
US $1.89 |
||
|
9052017042
|
9052017042
90520-17042 Ring, Shaft Snap(For Steering Main Shaft) |
90520-17042 |
from US $0.82 |
||
|
9163360625
|
9163360625
91633-60625
Screw(For Steering Column Tube)
|
91633-60625 |
— | ||
| replacement | |||||
|
9163360625
|
9163360625
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
|
9338215014
|
9338215014
93382-15014
Screw(For Steering Tilt Lever)
|
93382-15014 |
— | ||
| replacement | |||||
|
9338215014
|
9338215014
93383-55014 Screw(For Steering Tilt Lever) |
93383-55014 |
US $1.16 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.88 |
||
