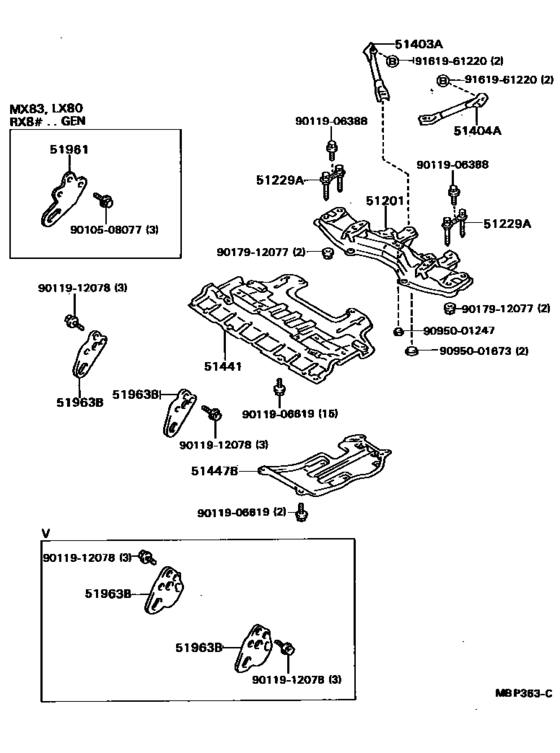

Suspension Crossmember & Under Cover ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-22500 Crossmember Sub-Assy, Front SuspensionFRONT SUSPENSION [08.1988 - 02.1993] LX80 |
51201-22500 |
US $678.50 |
||
|
51229A
|
51229A
51229-22050 Bolt, Front Suspension Member Mounting[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
51229-22050 |
US $8.21 |
||
|
51403A
|
51403A
51403-22010 Brace Sub-Assy, Front Suspention Member, RhFRONT SUSPENTION MEMBER, RH [08.1988 - 08.1996] LX80,RX8#..LHD |
51403-22010 |
US $24.32 |
||
|
51404A
|
51404A
51404-22010 Brace Sub-Assy, Front Suspention Member, LhFRONT SUSPENTION MEMBER, LH [08.1988 - 08.1996] LX80,RX8#..LHD |
51404-22010 |
US $24.32 |
||
|
51441
|
51441
51405-22040 Cover, Engine Under, No.1[08.1988 - 02.1993] LX80 |
51405-22040 |
US $173.26 |
||
|
51447B
|
51447B
51447-22050 Protector, Oil Pan[08.1988 - 02.1993] LX80..5F; LX80..4FC |
51447-22050 |
US $104.83 |
||
|
51963B
|
51963B
51963-22040 Hook, No.1[08.1988 - 02.1993] GX81,LX80,MX8#,RX8#..ARL,GEN |
51963-22040 |
US $9.61 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.97 |
||
|
9011906388
|
9011906388
90119-06388
BOLT
|
90119-06388 |
— | ||
| replacement | |||||
|
9011906388
|
9011906388
90119-06492 BOLT |
90119-06492 |
from US $0.78 |
||
|
9011906619
|
9011906619
90119-06619 BOLT WWASHER |
90119-06619 |
US $1.61 |
||
|
9011912078
|
9011912078
90119-12078 New Genuine Part |
90119-12078 |
US $1.18 |
||
|
9017912077
|
9017912077
90179-12077 Nut(For Front Lower Ball Joint Attachment Rh) |
90179-12077 |
US $2.87 |
||
|
9095001247
|
9095001247
90950-01247 New Genuine Part |
90950-01247 |
US $2.06 |
||
|
9095001673
|
9095001673
90950-01673
New Genuine Part
|
90950-01673 |
— | ||
|
9161961220
|
9161961220
91619-61220 Bolt, Stud |
91619-61220 |
US $4.48 |
||
