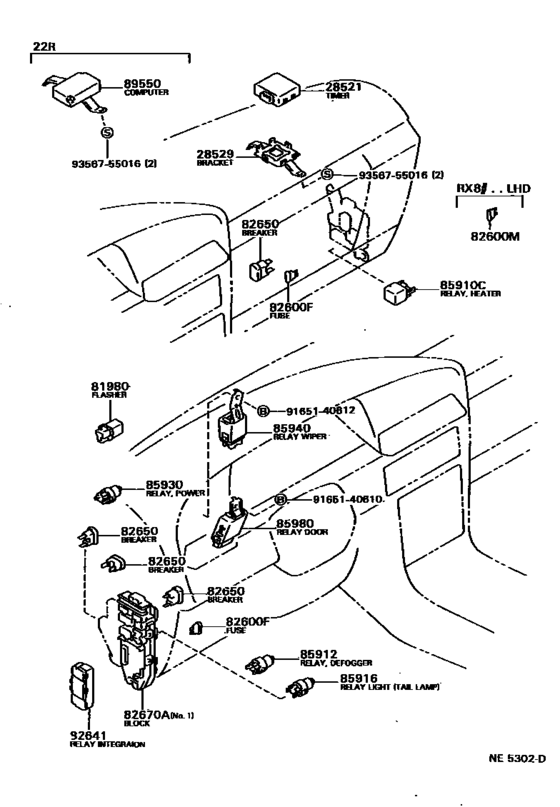

Switch & Relay & Computer ([08.1988 - ] (8808- )LHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28521
|
28521
28521-54370 Timer, PreheatingPREHEATING [08.1988 - 08.1990] 2L..LX80 |
28521-54370 |
US $355.26 |
||
| replacement | |||||
|
28521
|
28521
28521-54420
Timer, Preheating
[08.1988 - 08.1990] 2L..LX80 |
28521-54420 |
— | ||
|
28521
|
28521
28521-54420
Timer, Preheating
[08.1990 - 02.1993] 2L..LX80 |
28521-54420 |
— | ||
|
28529
|
28529
28529-54180 Bracket, Preheating Timer, No.1PREHEATING TIMER, NO.1 [08.1988 - 02.1993] 2L..LX80 |
28529-54180 |
US $16.45 |
||
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1988 - 02.1993] LX80,MX8# |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1988 - 02.1993] LX80,MX8# |
81980-32010 |
from US $53.92 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 10A,COWL SIDE |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1988 - 08.1990] LX80 15A,E/G ROOM J/B |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 20A,COWL SIDE |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1990 - 08.1996] GX81,LX80,MX8#,RX8# 7.5A,COWL SIDE |
90982-09005 |
from US $0.99 |
||
|
82641
|
82641
82641-24010 Relay, Integration No.1[08.1988 - 02.1993] LX80,RX8#..GEN |
82641-24010 |
US $147.06 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# 30A |
82650-20011 |
US $15.77 |
||
|
82650
|
82650
82650-20020 Breaker Assy, Wiring Circuit, No.1[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# 40A |
82650-20020 |
US $17.04 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[08.1988 - 08.1990] RX80..GL;RX80..LHD..XL;GX81,LX80,MX8#,RX81 20A |
82650-35010 |
US $14 |
||
|
82670A
|
82670A
82670-22060 Block Assy, Junction, No.1[08.1988 - 08.1990] LX80 ENGINE ROOM |
82670-22060 |
US $243.15 |
||
|
82670A
|
82670A
82670-22070 Block Assy, Junction, No.1[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# NO.1 |
82670-22070 |
US $262.08 |
||
|
82670A
|
82670A
82670-22090 Block Assy, Junction, No.1[08.1990 - 08.1996] GX81,LX80,MX8#,RX80 NO.1; RX81 NO.1 |
82670-22090 |
US $173.26 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
90987-04002 |
from US $24.32 |
||
|
85912
|
85912
90987-02002
Relay, Ignition, No.1
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02004 Relay Assy, Starter[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# MARUKO |
90987-02004 |
from US $28.10 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# NIPPONDENSO |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# MARUKO,TAIL LAMP |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# *ND,TAIL LAMP |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02006 Relay[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# HEADLAMP |
90987-02006 |
from US $26.75 |
||
|
85930
|
85930
90987-02002
Relay, Ignition, No.1
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..GD,GL,GLX MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85930
|
85930
90987-02004 Relay Assy, Starter[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..GD,GL,GLX MARUKO |
90987-02004 |
from US $28.10 |
||
|
85930
|
85930
90987-02004 Relay Assy, Starter[08.1988 - 08.1996] GX81,LX80,MX8#,RX8#..GD,GL,GLX NIPPONDENSO |
90987-02004 |
from US $28.10 |
||
|
85940
|
85940
85940-22130 Relay Assy, Windshield WiperWINDSHIELD WIPER [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
85940-22130 |
US $199.47 |
||
|
85980
|
85980
85980-22180 Relay Assy, Door ControlDOOR CONTROL [08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) |
85980-22180 |
US $365.46 |
||
|
85980
|
85980
85980-22200 Relay Assy, Door ControlDOOR CONTROL [08.1990 - 08.1996] GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) TOYOTA |
85980-22200 |
US $362.54 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
