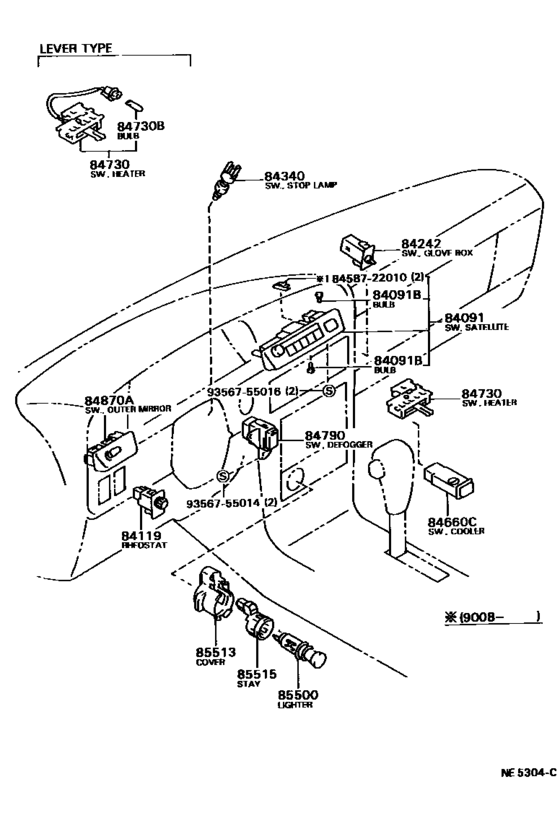

Switch & Relay & Computer ([08.1988 - ] (8808- )LHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84091
|
84091
84091-22280 Switch Set, SatelliteSATELLITE [08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) W(RADIO SWITCH) |
84091-22280 |
US $282.46 |
||
| replacement | |||||
|
84091
|
84091
84091-22281 Switch Set, Satellite[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) W(RADIO SWITCH) |
84091-22281 |
US $216.94 |
||
|
84091
|
84091
84091-22310 Switch Set, SatelliteSATELLITE [08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD |
84091-22310 |
US $115.02 |
||
| replacement | |||||
|
84091
|
84091
84091-22311 Switch Set, Satellite[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD |
84091-22311 |
US $85.90 |
||
|
84091
|
84091
84091-22380 Switch Set, SatelliteSATELLITE [08.1990 - 06.1991] GX81,LX80,MX81,RX8#..LHD |
84091-22380 |
US $115.02 |
||
| replacement | |||||
|
84091
|
84091
84091-22381
Switch Set, Satellite
[08.1990 - 06.1991] GX81,LX80,MX81,RX8#..LHD |
84091-22381 |
— | ||
|
84091
|
84091
84091-22381
Switch Set, Satellite
[06.1991 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84091-22381 |
— | ||
|
84091B
|
84091B
84999-10320 Bulb, Satellite Switch[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# HAZARD |
84999-10320 |
from US $4.30 |
||
|
84091B
|
84091B
84999-10350
Bulb, Satellite Switch
[08.1988 - 08.1990] MX83..GLX SATELLITE; GX81,LX80,MX81,RX8#..GD,GL,GLX SATELLITE |
84999-10350 |
— | ||
|
84091B
|
84091B
84999-10420 Bulb, Satellite Switch[08.1990 - 09.1990] GX81,MX83,RX80..RHD HAZARD; GX81,LX80,MX81,RX8#..LHD; GX81,MX81,RX8#..LHD..(GD,GL,GLX) HAZARD |
84999-10420 |
from US $5.67 |
||
|
84119
|
84119
84119-22200 Rheostat, Light ControlLIGHT CONTROL [08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
84119-22200 |
US $122.30 |
||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
84242-20030 |
US $18.35 |
||
|
84340
|
84340
84340-22080 Switch Assy, Stop Lamp[01.1990 - 08.1990] GX81,LX80,MX8#,RX8# MATSUSHITA |
84340-22080 |
US $30.43 |
||
|
84340
|
84340
84340-28010 Switch Assy, Stop Lamp[01.1990 - 08.1990] GX81,LX80,MX8#,RX8# TOKAIRIKA |
84340-28010 |
US $37.63 |
||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[08.1988 - 03.1989] GX81,LX80,MX8#,RX8# MATSUSHITA |
84340-30030 |
from US $29.29 |
||
|
84340
|
84340
84340-30040 Switch Assy, Stop Lamp[08.1988 - 03.1989] GX81,LX80,MX8#,RX8# TOKAIRIKA |
84340-30040 |
US $30.28 |
||
| replacement | |||||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[08.1988 - 03.1989] GX81,LX80,MX8#,RX8# TOKAIRIKA |
84340-30030 |
from US $29.29 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[08.1990 - 08.1996] GX81,LX80,MX81,RX8# |
84340-32050 |
from US $18.82 |
||
|
84660C
|
84660C
84660-22080 Switch, Cooler[08.1988 - 08.1996] GX81..RHD;LX80,MX81,RX8#..GD,GL,XL |
84660-22080 |
from US $74.95 |
||
|
84730
|
84730
84732-22140 Switch Assy, Heater Blower[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD |
84732-22140 |
US $62.03 |
||
| replacement | |||||
|
84730
|
84730
84732-22141 Switch Assy, Heater Blower[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD |
84732-22141 |
from US $62.03 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[08.1988 - 08.1990] GX81,LX80,MX81,RX8# 14V 1.4W |
90981-11014 |
from US $2.15 |
||
|
84790
|
84790
84790-22160 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84790-22160 |
US $99.01 |
||
|
84870A
|
84870A
84870-22110
Switch Assy, Outer Mirror
[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD |
84870-22110 |
— | ||
|
84870A
|
84870A
84870-22160 Switch Assy, Outer MirrorOUTER MIRROR [08.1990 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84870-22160 |
US $80.08 |
||
|
85500
|
85500
85500-22120 Lighter Assy, Cigarette[08.1988 - 05.1993] GX81,LX80,MX8#,RX8# |
85500-22120 |
US $51.54 |
||
| replacement | |||||
|
85500
|
85500
85500-17060 Lighter Assy, Cigarette[08.1988 - 05.1993] GX81,LX80,MX8#,RX8# |
85500-17060 |
from US $29.97 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[03.1991 - 08.1996] GX81,LX80,MX8#,RX8# |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-22020 Stay, Cigarette Lighter BezelCIGARETTE LIGHTER BEZEL [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
85515-22020 |
US $14.71 |
||
|
8458722010
|
8458722010
84587-22010 New Genuine Part |
84587-22010 |
US $1.89 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
