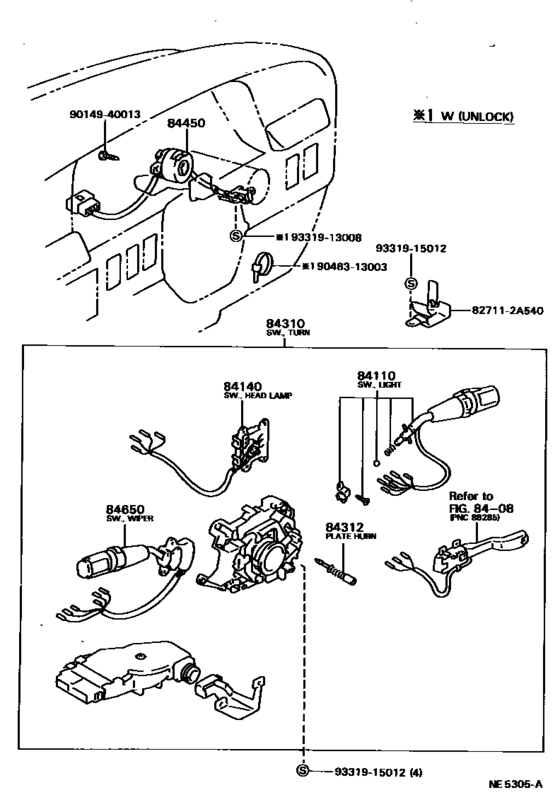

Switch & Relay & Computer ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80014 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [08.1988 - 05.1992] GX81,LX80,MX81,RX8#..LHD |
84112-80014 |
US $69.60 |
||
| replacement | |||||
|
84110
|
84110
84112-80016
Switch Assy, Light Control, No.1
[08.1988 - 05.1992] GX81,LX80,MX81,RX8#..LHD |
84112-80016 |
— | ||
|
84110
|
84110
84112-80135 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [05.1992 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84112-80135 |
US $90.27 |
||
| replacement | |||||
|
84110
|
84110
84112-80137 Switch Assy, Light Control, No.1[05.1992 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84112-80137 |
US $70.91 |
||
|
84140
|
84140
84140-22070
Switch Assy, Headlamp Dimmer
[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84140-22070 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-26100
Switch Assy, Headlamp Dimmer
[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84140-26100 |
— | ||
|
84310
|
84310
84310-22730 Switch Assy, Turn SignalTURN SIGNAL [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD W(INTERMITTENT WIPER) |
84310-22730 |
US $283.92 |
||
|
84310
|
84310
84310-22740 Switch Assy, Turn SignalTURN SIGNAL [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84310-22740 |
US $253.34 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
84312-12040 |
from US $6.49 |
||
|
84450
|
84450
84450-22180 Switch Assy, Ignition Or Starter[08.1988 - 08.1990] LX80;MX81,RX8#..XL |
84450-22180 |
from US $59.55 |
||
|
84450
|
84450
84450-22190 Switch Assy, Ignition Or Starter[08.1988 - 08.1990] GX81,MX8#,RX8#..GD,GL,GLX; LX80 W(POWER WINDOW) |
84450-22190 |
US $64.79 |
||
|
84450
|
84450
84450-22210 Switch Assy, Ignition Or StarterIGNITION OR STARTER [08.1990 - 09.1993] LX80;MX81,RX8#..XL |
84450-22210 |
US $69.45 |
||
| replacement | |||||
|
84450
|
84450
84450-33020 Switch Assy, Ignition Or StarterIGNITION OR STARTER [08.1990 - 09.1993] LX80;MX81,RX8#..XL |
84450-33020 |
US $75.71 |
||
|
84450
|
84450
84450-22220 Switch Assy, Ignition Or Starter[08.1990 - 02.1993] LX80 W(POWER WINDOW) |
84450-22220 |
US $75.71 |
||
|
84650
|
84650
84652-22460 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD W(INTERMITTENT WIPER) |
84652-22460 |
US $136.86 |
||
| replacement | |||||
|
84650
|
84650
84652-22490 Switch Assy, Windshield Wiper[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD W(INTERMITTENT WIPER) |
84652-22490 |
US $136.86 |
||
|
84650
|
84650
84652-22470 Switch Assy, Windshield WiperWINDSHIELD WIPER [08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD |
84652-22470 |
US $99.01 |
||
|
827112A540
|
827112A540
82711-2A540 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2A540 |
US $15.43 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.25 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
