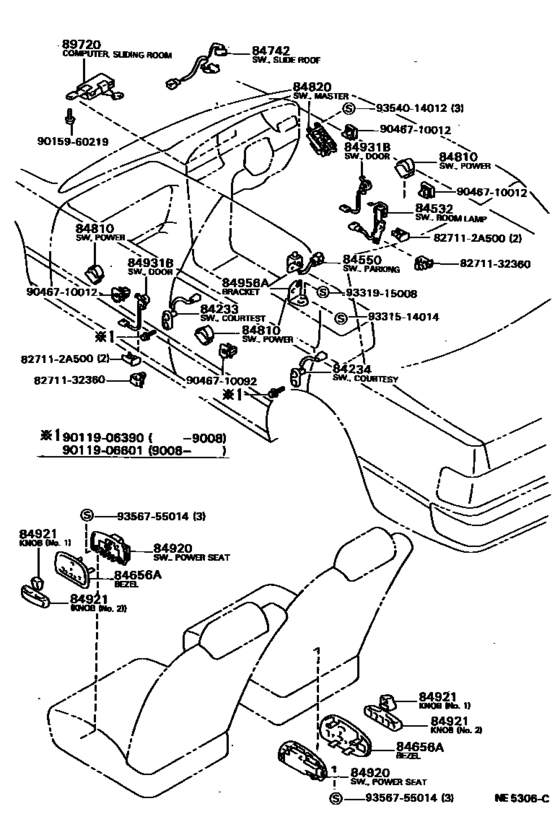

Switch & Relay & Computer ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- LX80
- grade
- GL
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-12060
Switch Assy, Courtesy Lamp (For Front Door)
[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# |
84231-12060 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# |
84231-12070 |
from US $17.16 |
||
|
84233
|
84233
84231-16060 Switch Assy, Courtesy Lamp (For Front Door)[11.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
84231-16060 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[11.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
84231-12070 |
from US $17.16 |
||
|
84233
|
84233
84231-22040 Switch Assy, Courtesy Lamp (For Front Door)[08.1988 - 11.1988] GX81,LX80,MX8#,RX8# |
84231-22040 |
US $14.56 |
||
| replacement | |||||
|
84233
|
84233
84231-12070 Switch Assy, Courtesy Lamp (For Front Door)[08.1988 - 11.1988] GX81,LX80,MX8#,RX8# |
84231-12070 |
from US $17.16 |
||
|
84234
|
84234
84231-22030 Switch Assy, Courtesy Lamp (For Rear Door)[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
84231-22030 |
US $14.56 |
||
| replacement | |||||
|
84234
|
84234
84231-60080 Switch Assy, Courtesy Lamp (For Rear Door)COURTESY LAMP (FOR FRONT DOOR) [08.1988 - 08.1990] GX81,LX80,MX8#,RX8# |
84231-60080 |
from US $11.83 |
||
|
84234
|
84234
84231-22070 Switch Assy, Courtesy Lamp (For Rear Door)[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# |
84231-22070 |
US $14.41 |
||
| replacement | |||||
|
84234
|
84234
84231-60080 Switch Assy, Courtesy Lamp (For Rear Door)COURTESY LAMP (FOR FRONT DOOR) [08.1990 - 02.1993] GX81,LX80,MX8#,RX8# |
84231-60080 |
from US $11.83 |
||
|
84550
|
84550
84550-24010
Switch Assy, Brake Warning Test
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
84550-24010 |
— | ||
|
84742
|
84742
84742-22020 Switch, Slide Roof Limit[08.1988 - 02.1993] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
84742-22020 |
US $51.25 |
||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[08.1990 - 02.1993] GX81,LX80,MX8#,RX8#..GD,GL,GLX FRONT DOOR |
84810-32070 |
from US $39.48 |
||
|
84820
|
84820
84820-22290
Master Switch Assy, Power Window Regulator
[08.1988 - 08.1994] GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) |
84820-22290 |
— | ||
|
84931B
|
84931B
84931-22081 Switch, Door Control[08.1988 - 12.1991] GX81,LX80,MX8#,RX8#..GD,GL,GLX RH |
84931-22081 |
US $49.21 |
||
|
84931B
|
84931B
84931-22091 Switch, Door ControlDOOR CONTROL [08.1988 - 12.1991] GX81,LX80,MX8#,RX8#..GD,GL,GLX LH |
84931-22091 |
US $49.21 |
||
| replacement | |||||
|
84931B
|
84931B
84931-22120 Switch, Door ControlDOOR CONTROL [08.1988 - 12.1991] GX81,LX80,MX8#,RX8#..GD,GL,GLX LH |
84931-22120 |
US $48.34 |
||
|
84931B
|
84931B
84931-22110 Switch, Door Control[12.1991 - 09.1995] GX81,LX80,MX8#,RX8#..GD,GL,GLX RH |
84931-22110 |
US $48.34 |
||
| replacement | |||||
|
84931B
|
84931B
84931-22111
Switch, Door Control
[12.1991 - 09.1995] GX81,LX80,MX8#,RX8#..GD,GL,GLX RH |
84931-22111 |
— | ||
|
84931B
|
84931B
84931-22120 Switch, Door ControlDOOR CONTROL [12.1991 - 08.1996] GX81,LX80,MX8#,RX8#..GD,GL,GLX LH |
84931-22120 |
US $48.34 |
||
|
84956A
|
84956A
84956-22070 Bracket, Hand Brake Signal Switch[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
84956-22070 |
US $12.19 |
||
|
89720
|
89720
89720-22020 Computer Assy, Sliding Roof Control[08.1988 - 09.1989] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
89720-22020 |
US $870.69 |
||
| replacement | |||||
|
89720
|
89720
89720-22021 Computer Assy, Sliding Roof ControlSLIDING ROOF CONTROL [08.1988 - 09.1989] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
89720-22021 |
US $861.95 |
||
|
89720
|
89720
89720-22021 Computer Assy, Sliding Roof ControlSLIDING ROOF CONTROL [09.1989 - 02.1993] MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
89720-22021 |
US $861.95 |
||
|
827112A500
|
827112A500
82711-2A500 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2A500 |
US $4.08 |
||
|
8271132360
|
8271132360
82711-32360
Clamp, Hood Lock Control Wire
|
82711-32360 |
— | ||
| replacement | |||||
|
8271132360
|
8271132360
82711-16820 Clamp, Hood Lock Control Wire |
82711-16820 |
from US $1.17 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9015960219
|
9015960219
90159-60219
New Genuine Part
|
90159-60219 |
— | ||
|
9046710012
|
9046710012
90467-10012 CLIP |
90467-10012 |
from US $0.96 |
||
|
9046710092
|
9046710092
90467-10092 New Genuine Part |
90467-10092 |
US $1.60 |
||
| replacement | |||||
|
9046710092
|
9046710092
90469-01002 New Genuine Part |
90469-01002 |
US $1.46 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
