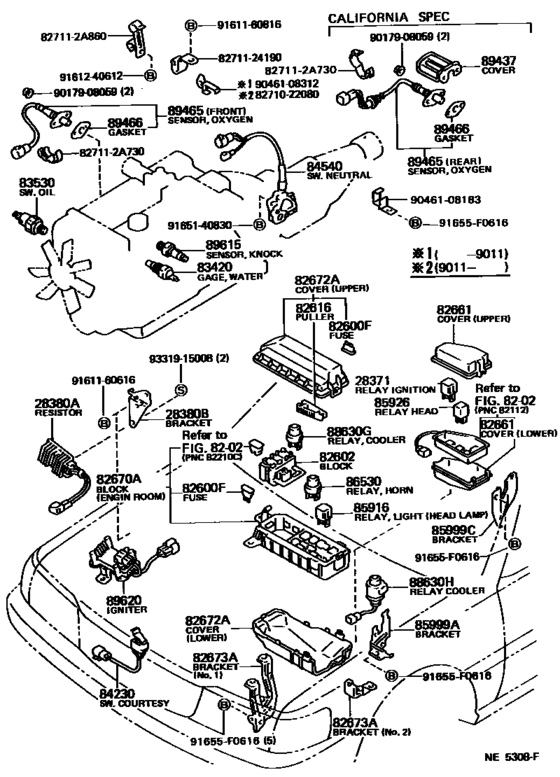

Switch & Relay & Computer ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[08.1990 - 07.1992] 7MGE..MX83..CND |
90987-04002 |
from US $24.32 |
||
|
28380A
|
28380A
23285-70010 Resister, Fuel Pump[08.1988 - 07.1992] 7MGE..MX83 |
23285-70010 |
US $90.27 |
||
|
28380B
|
28380B
23286-70040 Bracket, Fuel Pump Resister[08.1988 - 07.1992] 7MGE..MX83 |
23286-70040 |
US $8.59 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1988 - 08.1990] MX83 10A,COWL SIDE |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1990 - 07.1992] MX83..CND 15A,COWL SIDE |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 07.1992] MX83 20A,COWL SIDE |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1990 - 07.1992] MX83 7.5A,COWL SIDE |
90982-09005 |
from US $0.99 |
||
|
82602
|
82602
82602-22260
Block Sub-Assy, Relay
[08.1988 - 07.1992] MX83 |
82602-22260 |
— | ||
|
82616
|
82616
82616-12020 Puller, Fuse[08.1988 - 07.1992] MX83 |
82616-12020 |
US $4.19 |
||
|
82661
|
82661
82661-22180 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [08.1989 - 07.1992] MX83..CND UPPER |
82661-22180 |
US $12.23 |
||
|
82661
|
82661
82661-22190 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [08.1989 - 07.1992] MX83..CND LOWER |
82661-22190 |
US $9.61 |
||
|
82670A
|
82670A
82670-22040 Block Assy, Junction, No.1[08.1988 - 08.1989] MX83 ENGINE ROOM |
82670-22040 |
US $244.61 |
||
|
82670A
|
82670A
82670-22070 Block Assy, Junction, No.1[08.1988 - 08.1990] MX83 NO.1 |
82670-22070 |
US $262.08 |
||
|
82670A
|
82670A
82670-22080 Block Assy, Junction, No.1JUNCTION, NO.1 [08.1989 - 07.1992] MX83..CND ENGINE ROOM |
82670-22080 |
US $260.62 |
||
|
82670A
|
82670A
82670-22090 Block Assy, Junction, No.1[08.1990 - 07.1992] MX83 NO.1 |
82670-22090 |
US $173.26 |
||
|
82672A
|
82672A
82672-22070 Cover, Junction Block[08.1988 - 07.1992] MX83 LOWER |
82672-22070 |
US $15.43 |
||
|
82672A
|
82672A
82672-22120 Cover, Junction Block[08.1988 - 08.1989] MX83 UPPER |
82672-22120 |
US $38.44 |
||
|
82672A
|
82672A
82672-22130 Cover, Junction BlockJUNCTION BLOCK [08.1989 - 07.1992] MX83..CND UPPER |
82672-22130 |
US $41.35 |
||
|
82673A
|
82673A
82673-22010 Bracket, Junction Block[08.1988 - 09.1990] MX83 NO.1 |
82673-22010 |
US $24.75 |
||
|
82673A
|
82673A
82673-22030 Bracket, Junction Block[08.1988 - 09.1990] MX83 NO.2 |
82673-22030 |
US $6.84 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1988 - 09.1990] MX83 |
83420-20020 |
from US $29.21 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[08.1988 - 04.1991] MX83 |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[08.1988 - 04.1991] MX83 |
83530-60050 |
from US $29.06 |
||
|
84540
|
84540
84540-30240
Switch Assy, Neutral Start
[08.1988 - 02.1992] MX83 |
84540-30240 |
— | ||
| replacement | |||||
|
84540
|
84540
84540-30241
Switch Assy, Neutral Start
[08.1988 - 02.1992] MX83 |
84540-30241 |
— | ||
|
84540
|
84540
84540-30241
Switch Assy, Neutral Start
[02.1992 - 07.1992] MX83 |
84540-30241 |
— | ||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[08.1988 - 07.1992] MX83 MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 MARUKO,TAIL LAMP |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 *ND,TAIL LAMP |
90987-02004 |
from US $28.10 |
||
|
85916
|
85916
90987-02006 Relay[08.1988 - 07.1992] MX83 HEADLAMP |
90987-02006 |
from US $26.75 |
||
|
85926
|
85926
85926-30020 Relay, Headlamp Dimmer[08.1989 - 07.1992] MX83..CND |
85926-30020 |
from US $44.58 |
||
|
85999A
|
85999A
85999-22360 Bracket, Relay, No.2[08.1988 - 09.1990] MX83 |
85999-22360 |
US $9.90 |
||
|
85999C
|
85999C
85999-22420 Bracket, Relay, No.3RELAY, NO.3 [08.1989 - 07.1992] MX83..CND |
85999-22420 |
US $14.12 |
||
|
86530
|
86530
90987-02002
Relay, Ignition, No.1
[08.1988 - 07.1992] MX83 MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 MARUKO |
90987-02004 |
from US $28.10 |
||
|
86530
|
86530
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 NIPPONDENSO |
90987-02004 |
from US $28.10 |
||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 |
90987-02004 |
from US $28.10 |
||
|
88630H
|
88630H
88630-22070 Relay Assy, Cooler[08.1988 - 07.1992] MX83 |
88630-22070 |
US $35.12 |
||
|
89465
|
89465
89465-29315
Sensor, Oxygen
[08.1988 - 08.1989] MX83; MX83..USA CALIFORNIA SPEC,FRONT |
89465-29315 |
— | ||
| replacement | |||||
|
89465
|
89465
89465-29316
Sensor, Oxygen
[08.1988 - 08.1989] MX83; MX83..USA CALIFORNIA SPEC,FRONT |
89465-29316 |
— | ||
|
89465
|
89465
89465-29316
Sensor, Oxygen
[08.1989 - 07.1992] MX83; MX83..USA CALIFORNIA SPEC,FRONT |
89465-29316 |
— | ||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 07.1992] MX83 |
89466-20020 |
from US $12.77 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[08.1988 - 10.1988] MX83 |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[08.1988 - 10.1988] MX83 |
89466-20020 |
from US $12.77 |
||
|
89615
|
89615
89615-30020 Sensor, Knock Control[08.1988 - 08.1991] MX83 |
89615-30020 |
US $212.16 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[08.1991 - 07.1992] MX83 |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[08.1991 - 07.1992] MX83 |
89615-32030 |
from US $133.34 |
||
|
89620
|
89620
89620-14430 Igniter Assy[08.1988 - 01.1989] MX83 |
89620-14430 |
US $438.26 |
||
|
89620
|
89620
89620-22480 Igniter Assy[01.1989 - 08.1990] MX83 |
89620-22480 |
US $441.17 |
||
| replacement | |||||
|
89620
|
89620
89620-14430 Igniter Assy[01.1989 - 08.1990] MX83 |
89620-14430 |
US $438.26 |
||
|
91655F0616
|
91655F0616
91655-F0616 New Genuine Part |
91655-F0616 |
US $1.60 |
||
| replacement | |||||
|
91655F0616
|
91655F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
827112A730
|
827112A730
82711-2A730 Clamp, Throttle Cable, No.1 |
82711-2A730 |
US $5.91 |
||
|
827112A860
|
827112A860
82711-2A860 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2A860 |
US $9.90 |
||
|
8271022080
|
8271022080
82710-22080 Harness Assy, Oil Heater |
82710-22080 |
US $10.92 |
||
|
8271124190
|
8271124190
82711-24190 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24190 |
US $7.72 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9046108183
|
9046108183
90461-08183
Wire, Fuse To Fuse(for Combustion Heater)
|
90461-08183 |
— | ||
| replacement | |||||
|
9046108183
|
9046108183
82711-37250
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-37250 |
— | ||
|
9046108312
|
9046108312
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161240612
|
9161240612
91612-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91612-40612 |
US $2.18 |
||
| replacement | |||||
|
9161240612
|
9161240612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
