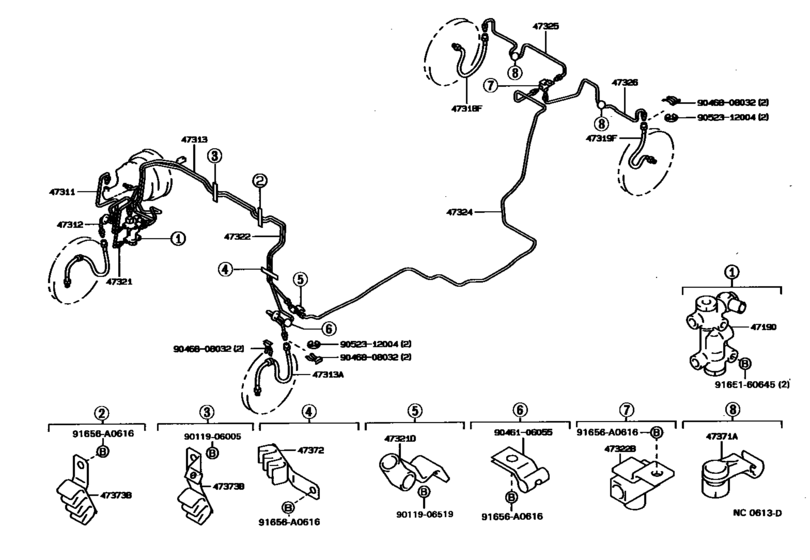

Brake Tube & Clamp ([08.1988 - ] (8808- )MX83) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47190
|
47190
47190-14020 Valve Assy, Proportioning & By-Pass[08.1989 - 02.1993] MX83..GLX W(*66) |
47190-14020 |
US $240 |
||
|
47190
|
47190
47190-22080
Valve Assy, Proportioning & By-Pass
[08.1988 - 02.1993] MX83 |
47190-22080 |
— | ||
|
47311
|
47311
47311-22390 Tube, Front Brake, No.1[08.1988 - 02.1993] MX83 |
47311-22390 |
US $7.72 |
||
|
47311
|
47311
47311-22480 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1989 - 08.1990] MX83..GLX W(*66) |
47311-22480 |
US $7.72 |
||
|
47312
|
47312
47312-22180 Tube, Front Brake, No.2[08.1988 - 02.1993] GX81,MX83,RX80..RHD |
47312-22180 |
US $7.72 |
||
|
47312
|
47312
47312-22220 Tube, Front Brake, No.2FRONT BRAKE, NO.2 [08.1989 - 08.1990] MX83..GLX W(*66) |
47312-22220 |
US $14.71 |
||
|
47313
|
47313
47313-22350 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1988 - 02.1993] MX83 |
47313-22350 |
US $24.46 |
||
|
47313
|
47313
47313-22370 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1989 - 08.1990] MX83..GLX W(*66) |
47313-22370 |
US $18.05 |
||
|
47313
|
47313
47313-22430 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1990 - 02.1993] MX83 AUSTRALIA PACKAGE |
47313-22430 |
US $17.76 |
||
|
47313A
|
47313A
90947-02570 Hose, Flexible, No.1(For Front)[08.1988 - 02.1993] GX81,LX80,MX8#,RX8#..ARL,GEN |
90947-02570 |
US $41.50 |
||
|
47313A
|
47313A
90947-02571 Hose, Flexible, No.1(For Front)[08.1989 - 08.1990] MX83..GLX W(*66) |
90947-02571 |
US $41.64 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02570 Hose, Flexible, No.1(For Front)[08.1989 - 08.1990] MX83..GLX W(*66) |
90947-02570 |
US $41.50 |
||
|
47318F
|
47318F
90947-02568 Hose, Flexible(For Rear Rh)[08.1988 - 02.1993] GX81,MX8#,RX81..ARL,GEN |
90947-02568 |
US $28.22 |
||
|
47318F
|
47318F
90947-02569 Hose, Flexible(For Rear Rh)[08.1989 - 08.1990] MX83..GLX W(*66) |
90947-02569 |
US $28.54 |
||
| replacement | |||||
|
47318F
|
47318F
90947-02568 Hose, Flexible(For Rear Rh)[08.1989 - 08.1990] MX83..GLX W(*66) |
90947-02568 |
US $28.22 |
||
|
47319F
|
47319F
90947-02568 Hose, Flexible(For Rear Rh)[08.1988 - 02.1993] GX81,MX8#,RX81..ARL,GEN |
90947-02568 |
US $28.22 |
||
|
47319F
|
47319F
90947-02569 Hose, Flexible(For Rear Rh)[08.1989 - 08.1990] MX83..GLX W(*66) |
90947-02569 |
US $28.54 |
||
| replacement | |||||
|
47319F
|
47319F
90947-02568 Hose, Flexible(For Rear Rh)[08.1989 - 08.1990] MX83..GLX W(*66) |
90947-02568 |
US $28.22 |
||
|
47321
|
47321
47321-22190 Tube, Rear Brake, No.1[08.1988 - 02.1993] MX83 |
47321-22190 |
US $7.72 |
||
|
47321
|
47321
47321-22210 Tube, Rear Brake, No.1[08.1989 - 08.1990] MX83..GLX W(*66) |
47321-22210 |
US $9.90 |
||
|
47321D
|
47321D
90412-10118 Way, 2(For Rear Brake Tube)[08.1988 - 02.1993] GX81,LX80,MX8# |
90412-10118 |
US $7.28 |
||
|
47322
|
47322
47322-22210 Tube, Rear Brake, No.2[08.1988 - 02.1993] GX81,MX83..RHD |
47322-22210 |
US $19.66 |
||
|
47322
|
47322
47322-22280 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [08.1989 - 08.1990] MX83..GLX W(*66) |
47322-22280 |
US $14.71 |
||
|
47322B
|
47322B
90413-10228 Way, No.2(For Rear Brake Tube)[08.1988 - 08.1996] GX81,MX8#,RX81 |
90413-10228 |
US $6.55 |
||
|
47324
|
47324
47324-22240 Tube, Rear Brake, No.4[08.1988 - 02.1993] MX83 |
47324-22240 |
US $55.04 |
||
|
47325
|
47325
47325-22060 Tube, Rear Brake, No.5[08.1988 - 08.1996] GX81,MX8#,RX81 |
47325-22060 |
US $14.56 |
||
|
47326
|
47326
47326-22070
Tube, Rear Brake, No.6
[08.1988 - 08.1996] GX81,MX8#,RX81 |
47326-22070 |
— | ||
|
47371A
|
47371A
47371-22310 Clamp, Brake Tube, No.1[08.1988 - 08.1996] GX81,MX8#,RX81 |
47371-22310 |
US $1.75 |
||
|
47372
|
47372
47371-20070 Clamp, Brake Tube, No.4[08.1990 - 02.1993] MX83 AUSTRALIA PACKAGE |
47371-20070 |
US $5.24 |
||
|
47372
|
47372
47371-22230 Clamp, Brake Tube, No.2BRAKE TUBE, NO.2 [08.1988 - 02.1993] MX83 |
47371-22230 |
US $9.76 |
||
|
47373B
|
47373B
47371-22220 Clamp, Brake Tube, No.6BRAKE TUBE, NO.6 [08.1988 - 02.1993] MX83 LH |
47371-22220 |
US $9.03 |
||
|
47373B
|
47373B
47371-22330 Clamp, Brake Tube, No.3[08.1989 - 08.1990] MX83..GLX W(*66) |
47371-22330 |
US $9.76 |
||
|
47373B
|
47373B
47371-22380 Clamp, Brake Tube, No.3BRAKE TUBE, NO.3 [08.1988 - 02.1993] MX83 RH |
47371-22380 |
US $12.23 |
||
|
91656A0616
|
91656A0616
91656-A0616 New Genuine Part |
91656-A0616 |
US $1.60 |
||
| replacement | |||||
|
91656A0616
|
91656A0616
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.79 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906519
|
9011906519
90119-06519 New Genuine Part |
90119-06519 |
US $2.61 |
||
|
9046106055
|
9046106055
90461-06055 Clamp, Brake Tube, No.1 |
90461-06055 |
US $2.20 |
||
|
9046808032
|
9046808032
90468-08032 CLIP |
90468-08032 |
US $4.12 |
||
|
9052312004
|
9052312004
90523-12004 New Genuine Part |
90523-12004 |
US $1.97 |
||
|
9165160645
|
9165160645
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
