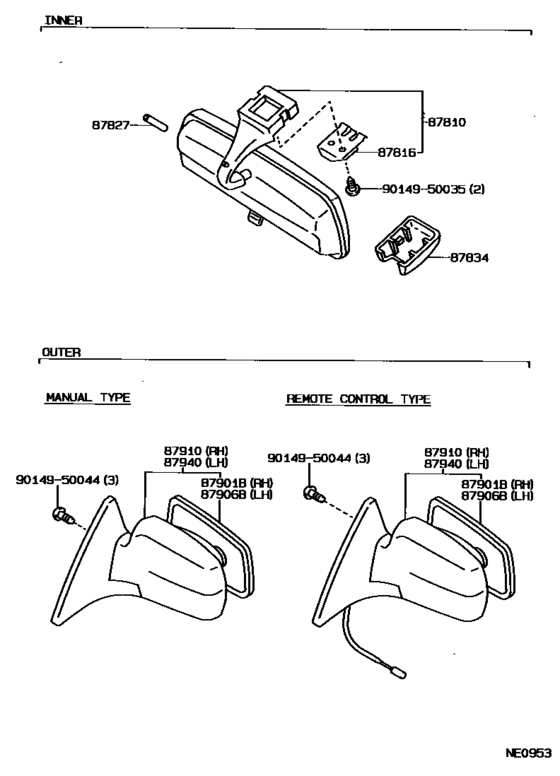

Mirror ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-22200-12 Mirror Assy, Inner Rear View[08.1990 - 09.1995] GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
87810-22200-12 |
US $109.20 |
||
| replacement | |||||
|
87810
|
87810
87810-22200-13 Mirror Assy, Inner Rear View[08.1990 - 09.1995] GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
87810-22200-13 |
US $109.20 |
||
|
87810
|
87810
87810-22200-13 Mirror Assy, Inner Rear View[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# MEDIUM GRAY,TRIM1# |
87810-22200-13 |
US $109.20 |
||
|
87810
|
87810
87810-22200-14 Mirror Assy, Inner Rear View[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# LIGHT BLUE,TRIM8# |
87810-22200-14 |
US $100.46 |
||
| replacement | |||||
|
87810
|
87810
87810-22200-13 Mirror Assy, Inner Rear View[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# LIGHT BLUE,TRIM8# |
87810-22200-13 |
US $109.20 |
||
|
87810
|
87810
87810-22200-16 Mirror Assy, Inner Rear View[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# LIGHT SABLE,TRIM3#,4# |
87810-22200-16 |
US $100.46 |
||
| replacement | |||||
|
87810
|
87810
87810-22200-13 Mirror Assy, Inner Rear View[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# LIGHT SABLE,TRIM3#,4# |
87810-22200-13 |
US $109.20 |
||
|
87816
|
87816
74372-30030 Spring, Inner Rear View Mirror[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
74372-30030 |
US $2.34 |
||
|
87827
|
87827
87828-22050
Absorber, Inner Rear View Mirror
[08.1988 - 09.1993] GX81,LX80,MX8#,RX8# |
87828-22050 |
— | ||
|
87834
|
87834
87834-22050-04
Cover, Inner Rear View Mirror Stay Holder
[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# BLUE,TRIM8# |
87834-22050-04 |
— | ||
|
87834
|
87834
87834-22050-06 Cover, Inner Rear View Mirror Stay Holder[08.1988 - 08.1990] GX81,LX80,MX8#,RX8# SABLE,TRIM3#,4# |
87834-22050-06 |
US $4.95 |
||
|
87834
|
87834
87834-22050-12
Cover, Inner Rear View Mirror Stay Holder
[08.1990 - 08.1996] GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
87834-22050-12 |
— | ||
|
87834
|
87834
87834-22050-13 Cover, Inner Rear View Mirror Stay Holder[08.1990 - 02.1993] GX81,LX80,MX8#,RX8# MEDIUM GRAY,TRIM1# |
87834-22050-13 |
US $4.95 |
||
|
87901B
|
87901B
87931-22860 Mirror Sub-Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 02.1993] MX83 |
87931-22860 |
US $29.12 |
||
|
87906B
|
87906B
87961-2A030
Mirror Sub-Assy, Outer Rear View, Lh
[08.1988 - 02.1993] MX83 |
87961-2A030 |
— | ||
|
87910
|
87910
87910-22860-01 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 08.1990] MX83..GLX BLACK,202 |
87910-22860-01 |
US $334.88 |
||
|
87910
|
87910
87910-22860-02 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 08.1990] MX83..GLX RED MICA,3H4 |
87910-22860-02 |
US $334.88 |
||
|
87910
|
87910
87910-22860-03 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 02.1993] MX83..GLX SUPER SILVER METALLI,176 |
87910-22860-03 |
US $334.88 |
||
| replacement | |||||
|
87910
|
87910
87910-22860-B0
Mirror Assy, Outer Rear View, Rh
[08.1988 - 02.1993] MX83..GLX SUPER SILVER METALLI,176 |
87910-22860-B0 |
— | ||
|
87910
|
87910
87910-22860-04 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 02.1993] MX83..GLX LIGHT BLUE MICA META,8G2 |
87910-22860-04 |
US $334.88 |
||
|
87910
|
87910
87910-22860-05 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 08.1989] MX83..GLX SABLE MICA METALLIC,4K2 |
87910-22860-05 |
US $334.88 |
||
|
87910
|
87910
87910-22860-06 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1989 - 08.1990] MX83..GLX DARK BROWN MICA M,4L4 |
87910-22860-06 |
US $334.88 |
||
|
87910
|
87910
87910-22860-08 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 02.1993] MX83..GLX SUPER WHITE,050 |
87910-22860-08 |
US $334.88 |
||
|
87910
|
87910
87910-22860-12 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1990 - 02.1993] MX83 RED M M,3J9 |
87910-22860-12 |
US $334.88 |
||
|
87910
|
87910
87910-22860-13 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1988 - 08.1990] MX83..GLX GRAY MICA METALLIC,170 |
87910-22860-13 |
US $334.88 |
||
|
87910
|
87910
87910-22860-14 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1990 - 02.1993] MX83 BLUE M,869 |
87910-22860-14 |
US $334.88 |
||
|
87910
|
87910
87910-22860-15 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [08.1990 - 02.1993] MX83 BEIGE M M,4J1 |
87910-22860-15 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-01 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1988 - 08.1990] MX83..GLX BLACK,202 |
87940-2A030-01 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-02 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1988 - 08.1990] MX83..GLX RED MICA,3H4 |
87940-2A030-02 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-03 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1988 - 02.1993] MX83..GLX SUPER SILVER METALLI,176 |
87940-2A030-03 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-04 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1988 - 02.1993] MX83..GLX LIGHT BLUE MICA META,8G2 |
87940-2A030-04 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-05 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1988 - 08.1989] MX83..GLX SABLE MICA METALLIC,4K2 |
87940-2A030-05 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-06 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1989 - 08.1990] MX83..GLX DARK BROWN MICA M,4L4 |
87940-2A030-06 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-08 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1988 - 02.1993] MX83..GLX SUPER WHITE,050 |
87940-2A030-08 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-12 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1990 - 02.1993] MX83 RED M M,3J9 |
87940-2A030-12 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-13 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1988 - 08.1990] MX83..GLX GRAY MICA METALLIC,170 |
87940-2A030-13 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-14 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1990 - 02.1993] MX83 BLUE M,869 |
87940-2A030-14 |
US $334.88 |
||
|
87940
|
87940
87940-2A030-15 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [08.1990 - 02.1993] MX83 BEIGE M M,4J1 |
87940-2A030-15 |
US $334.88 |
||
|
9014950035
|
9014950035
90149-50035 New Genuine Part |
90149-50035 |
US $1.02 |
||
|
9014950044
|
9014950044
90149-50044 New Genuine Part |
90149-50044 |
US $1.60 |
||
