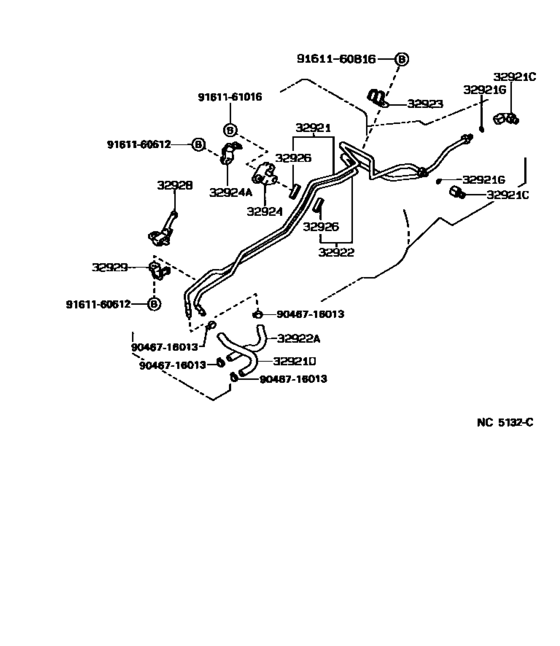

Oil Cooler & Tube (Atm) ([08.1988 - 02.1993] (8808-9302)MX83) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-22400 Tube, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [08.1988 - 07.1989] MX83 |
32921-22400 |
US $25.63 |
||
|
32921
|
32921
32921-22401 Tube, Oil Cooler Inlet, No.1[07.1989 - 02.1993] MX83 |
32921-22401 |
US $25.48 |
||
|
32921C
|
32921C
90404-16020 Union(For Oil Cooler Tube)[08.1988 - 07.1990] MX83 FR |
90404-16020 |
US $7.72 |
||
| replacement | |||||
|
32921C
|
32921C
90404-16029 Union(For Oil Cooler Tube)[08.1988 - 07.1990] MX83 FR |
90404-16029 |
US $7.71 |
||
|
32921C
|
32921C
90404-16029 Union(For Oil Cooler Tube)[07.1990 - 02.1993] MX83 FR |
90404-16029 |
US $7.71 |
||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[08.1988 - 02.1993] MX83 RR |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
32941-22200 Hose(For Oil Cooler Inlet)[08.1988 - 07.1989] MX83 |
32941-22200 |
US $25.77 |
||
| replacement | |||||
|
32921D
|
32921D
32941-22201 Hose(For Oil Cooler Inlet)[08.1988 - 07.1989] MX83 |
32941-22201 |
US $25.33 |
||
|
32921D
|
32921D
32941-22201 Hose(For Oil Cooler Inlet)[07.1989 - 02.1993] MX83 |
32941-22201 |
US $25.33 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.1988 - 02.1993] MX83 |
90301-11006 |
from US $2.50 |
||
|
32922
|
32922
32922-22420 Tube, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [08.1988 - 07.1989] MX83 |
32922-22420 |
US $25.63 |
||
|
32922
|
32922
32922-22421 Tube, Oil Cooler Outlet, No.1[07.1989 - 02.1993] MX83 |
32922-22421 |
US $28.25 |
||
|
32922A
|
32922A
32941-22180 Hose(For Oil Cooler Inlet)[08.1988 - 07.1989] MX83 TOYODA GOSEI |
32941-22180 |
US $40.33 |
||
| replacement | |||||
|
32922A
|
32922A
32941-22181 Hose(For Oil Cooler Inlet)[08.1988 - 07.1989] MX83 TOYODA GOSEI |
32941-22181 |
US $35.51 |
||
|
32922A
|
32922A
32941-22181 Hose(For Oil Cooler Inlet)[08.1988 - 08.1990] MX83 MARUYASU |
32941-22181 |
US $35.51 |
||
|
32923
|
32923
32923-30110
Clamp, Automatic Transmission Oil Cooler Tube
[08.1988 - 02.1993] MX83 |
32923-30110 |
— | ||
|
32924
|
32924
32924-30160 Clamp, Oil Cooler Tube, No.2[08.1988 - 02.1993] MX8#..4FC |
32924-30160 |
US $9.90 |
||
|
32924A
|
32924A
32929-22050 Clamp, Automatic Transmission Oil Cooler Tube[08.1988 - 02.1993] MX8#..4FC |
32929-22050 |
US $5.74 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1988 - 02.1993] MX8#..4FC L=35,ID=10 |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
32928-30090 Clamp, Flexible Hose, No.1[08.1988 - 02.1993] MX83 |
32928-30090 |
US $11.50 |
||
|
32929
|
32929
32929-24040 Clamp, Automatic Transmission Oil Cooler Tube[08.1988 - 02.1993] MX83 |
32929-24040 |
US $9.03 |
||
| replacement | |||||
|
32929
|
32929
32929-35050 Clamp, Automatic Transmission Oil Cooler TubeFLEXIBLE HOSE, NO.2 [08.1988 - 02.1993] MX83 |
32929-35050 |
US $5.39 |
||
|
9046716013
|
9046716013
90467-16013
Clip(For Oil Return Hose)
|
90467-16013 |
— | ||
| replacement | |||||
|
9046716013
|
9046716013
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.32 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
