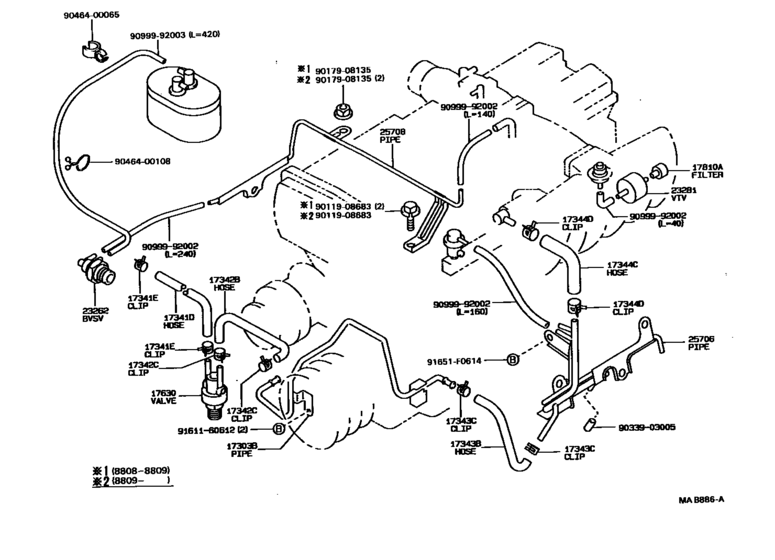

Vacuum Piping ([08.1988 - 02.1993] (8808-9302)7MGE) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-42020 Pipe Sub-Assy, Air, No.1[08.1988 - 02.1993] 7MGE..MX83 |
17303-42020 |
US $58.39 |
||
|
17341D
|
17341D
90910-05197
Hose, No.1(For Idle-Up)
[08.1988 - 02.1993] 7MGE..MX83 |
90910-05197 |
— | ||
|
17341E
|
17341E
96132-41000 Clip, No.1(For Idle-Up Hose)[08.1988 - 02.1993] 7MGE..MX83 |
96132-41000 |
from US $1.43 |
||
|
17342B
|
17342B
90910-05186
Hose, No.1(For Idle-Up)
[08.1988 - 02.1993] 7MGE..MX83 |
90910-05186 |
— | ||
|
17342C
|
17342C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1988 - 02.1993] 7MGE..MX83 |
96132-30400 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1988 - 02.1993] 7MGE..MX83 |
96132-51000 |
from US $1.48 |
||
|
17343B
|
17343B
90910-05185
Hose, No.3(For Idle-Up)
[08.1988 - 02.1993] 7MGE..MX83 |
90910-05185 |
— | ||
|
17343C
|
17343C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1988 - 02.1993] 7MGE..MX83 |
96132-30400 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1988 - 02.1993] 7MGE..MX83 |
96132-51000 |
from US $1.48 |
||
|
17344C
|
17344C
90910-05190
Hose, No.4(For Idle-Up)
[08.1988 - 02.1993] 7MGE..MX83 |
90910-05190 |
— | ||
|
17344D
|
17344D
96132-40800 Clip, No.4(For Idle-Up Hose)[08.1988 - 03.1989] 7MGE..MX83 |
96132-40800 |
US $2.18 |
||
|
17344D
|
17344D
96132-41300
Clip, No.4(For Idle-Up Hose)
[03.1989 - 02.1993] 7MGE..MX83 |
96132-41300 |
— | ||
| replacement | |||||
|
17344D
|
17344D
96132-51300 Clip(For Ventilation Hose No.2)[03.1989 - 02.1993] 7MGE..MX83 |
96132-51300 |
from US $1.48 |
||
|
17630
|
17630
17630-70020
Valve Assy, Air Control
[08.1988 - 02.1993] 7MGE..MX83 |
17630-70020 |
— | ||
| replacement | |||||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[08.1988 - 02.1993] 7MGE..MX83 |
17630-16040 |
from US $78.92 |
||
|
17810A
|
17810A
90925-06006
Filter Assy, Air
[08.1988 - 02.1993] 5ME,7MGE..MX8# |
90925-06006 |
— | ||
|
23262
|
23262
90925-05068 Valve, Bimetal Vacuum Switching, No.1BIMETAL VACUUM SWITCHING, NO.1 [08.1988 - 02.1993] 7MGE..MX83 |
90925-05068 |
from US $59.09 |
||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1988 - 02.1993] 7MGE..MX83 |
90925-01014 |
— | ||
|
25706
|
25706
25706-42030 Pipe Sub-Assy, Vacuum Transmitting, No.1[08.1988 - 02.1993] 7MGE..MX83 |
25706-42030 |
US $65.67 |
||
|
25708
|
25708
25708-42020 Pipe Sub-Assy, Vacuum Transmitting, No.3VACUUM TRANSMITTING, NO.3 [08.1988 - 02.1993] 7MGE..MX83 |
25708-42020 |
US $122.30 |
||
|
91651F0614
|
91651F0614
91651-F0614 New Genuine Part |
91651-F0614 |
US $1.46 |
||
|
9011908683
|
9011908683
90119-08683
New Genuine Part
|
90119-08683 |
— | ||
|
9017908135
|
9017908135
90179-08135
New Genuine Part
|
90179-08135 |
— | ||
| replacement | |||||
|
9017908135
|
9017908135
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9046400065
|
9046400065
90464-00065 Clamp, Throttle Cable |
90464-00065 |
US $3.14 |
||
|
9046400108
|
9046400108
90464-00108 New Genuine Part |
90464-00108 |
from US $2.43 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
