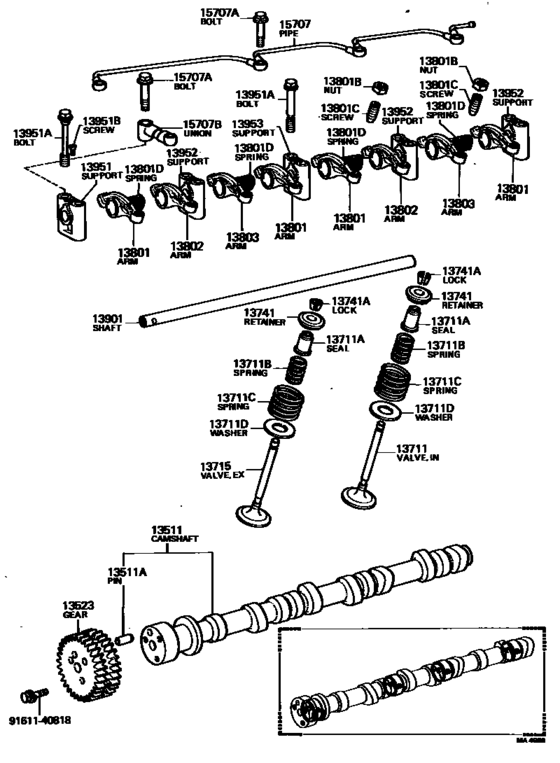

Camshaft & Valve ([07.1981 - 08.1982] (8107-8208)18R) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1981 - 1982
- Sales region
- Europe
- Frame
- RX62
- grade
- XL
- body
- WG
- ENGINE
- 18R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1981
- To
- 08.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13511
|
13511
13511-33906
Camshaft
[07.1981 - 08.1982] 18R..RX62 |
13511-33906 |
— | ||
|
13511A
|
13511A
90250-08074 Pin, Straight(For Timing Gear Case)[07.1981 - 08.1982] 18R..RX62 L=15,OD=8,L=15,OD=8 |
90250-08074 |
US $1.79 |
||
|
13523
|
13523
13523-33010
Gear Or Sprocket, Camshaft Timing
[07.1981 - 08.1982] 18R..RX62 N=24 |
13523-33010 |
— | ||
|
13711
|
13711
13711-36021 Valve, Intake[07.1981 - 08.1982] 18R..RX62 |
13711-36021 |
US $33.20 |
||
|
13711A
|
13711A
90913-02054 Seal Or Ring, O(For Valve Stem Oil)[07.1981 - 08.1982] 18R..RX62 |
90913-02054 |
US $7.16 |
||
|
13711B
|
13711B
90501-26398 Spring, Compression(For Inner)[07.1981 - 08.1982] 18R..RX62 WD=2.6,CW=7.5 |
90501-26398 |
US $3.06 |
||
|
13711C
|
13711C
90501-45012 Spring, Compression(For Outer)[07.1981 - 08.1982] 18R..RX62 WD=4.5,CW=6.5 |
90501-45012 |
US $9.32 |
||
|
13711D
|
13711D
90201-13308 Washer, Plate(For Valve Spring Seat)[07.1981 - 08.1982] 18R..RX62 |
90201-13308 |
US $2.33 |
||
| replacement | |||||
|
13711D
|
13711D
90201-13366 Washer, Plate(For Valve Spring Seat)[07.1981 - 08.1982] 18R..RX62 |
90201-13366 |
US $2.33 |
||
|
13715
|
13715
13715-34013
Valve, Exhaust
[07.1981 - 08.1982] 18R..RX62 |
13715-34013 |
— | ||
|
13741
|
13741
13741-33010 Retainer, Valve Spring[07.1981 - 08.1982] 18R..RX62 |
13741-33010 |
US $4.08 |
||
|
13741A
|
13741A
90913-03005 Lock, Valve Spring Retainer[09.1980 - 04.1985] 5ME..MX6#; 21R#,18R..RX6#; 3T..TX62 |
90913-03005 |
US $3.84 |
||
|
13801
|
13801
13811-33014 Arm Sub-Assy, Valve Rocker, No.1VALVE ROCKER, NO.1 [07.1981 - 03.1982] 18R..RX62 |
13811-33014 |
US $46.30 |
||
| replacement | |||||
|
13801
|
13801
13811-33020
Arm Sub-Assy, Valve Rocker, No.1
[07.1981 - 03.1982] 18R..RX62 |
13811-33020 |
— | ||
|
13801
|
13801
13811-33020
Arm Sub-Assy, Valve Rocker, No.1
[03.1982 - 08.1982] 18R..RX62 |
13811-33020 |
— | ||
|
13801B
|
13801B
90170-10116 Nut, Hexagon(For Valve Adjusting)[07.1981 - 08.1982] 18R..RX62 |
90170-10116 |
US $3.06 |
||
|
13801C
|
13801C
90913-05011
Screw, Valve Adjusting
[07.1981 - 08.1982] 18R..RX62 |
90913-05011 |
— | ||
|
13801D
|
13801D
90501-16163
Spring, Compression(For Rocker Arm)
[09.1980 - 07.1984] L..LX60; 18R..RX62 |
90501-16163 |
— | ||
|
13802
|
13802
13812-33014 Arm Sub-Assy, Valve Rocker, No.2VALVE ROCKER, NO.2 [07.1981 - 03.1982] 18R..RX62 |
13812-33014 |
US $46.30 |
||
| replacement | |||||
|
13802
|
13802
13812-33020
Arm Sub-Assy, Valve Rocker, No.2
[07.1981 - 03.1982] 18R..RX62 |
13812-33020 |
— | ||
|
13802
|
13802
13812-33020
Arm Sub-Assy, Valve Rocker, No.2
[03.1982 - 08.1982] 18R..RX62 |
13812-33020 |
— | ||
|
13803
|
13803
13813-33014 Arm Sub-Assy, Valve Rocker, No.3VALVE ROCKER, NO.3 [07.1981 - 03.1982] 18R..RX62 |
13813-33014 |
US $33.92 |
||
| replacement | |||||
|
13803
|
13803
13813-33020
Arm Sub-Assy, Valve Rocker, No.3
[07.1981 - 03.1982] 18R..RX62 |
13813-33020 |
— | ||
|
13803
|
13803
13813-33020
Arm Sub-Assy, Valve Rocker, No.3
[03.1982 - 08.1982] 18R..RX62 |
13813-33020 |
— | ||
|
13901
|
13901
13901-33011 Shaft Sub-Assy, Valve Rocker, No.1[07.1981 - 08.1982] 18R..RX62 |
13901-33011 |
US $54.45 |
||
|
13951
|
13951
13951-36010 Support, Valve Rocker, No.1[07.1981 - 08.1982] 18R..RX62 |
13951-36010 |
US $22.86 |
||
|
13951A
|
13951A
90105-08016 Bolt(For Rocker Support Set)[07.1981 - 08.1982] 18R..RX62 *8-1.25PX65-16 |
90105-08016 |
US $1.75 |
||
|
13951A
|
13951A
90910-01007
Bolt(For Rocker Support Set)
[07.1981 - 08.1982] 18R..RX62 *8-1.25PX75-16 |
90910-01007 |
— | ||
|
13951B
|
13951B
90151-40010 Screw Or Bolt(For Valve Rocker Shaft Lock)[07.1981 - 08.1982] 18R..RX62 |
90151-40010 |
US $2.18 |
||
|
13952
|
13952
13952-36010 Support, Valve Rocker, No.2[07.1981 - 08.1982] 18R..RX62 |
13952-36010 |
US $22.86 |
||
| replacement | |||||
|
13952
|
13952
13951-36010 Support, Valve Rocker, No.1[07.1981 - 08.1982] 18R..RX62 |
13951-36010 |
US $22.86 |
||
|
13953
|
13953
13953-36010
Support, Valve Rocker, No.3
[07.1981 - 08.1982] 18R..RX62 |
13953-36010 |
— | ||
|
15707
|
15707
15707-33010 Pipe Sub-Assy, Oil[07.1981 - 08.1982] 18R..RX62 |
15707-33010 |
US $50.38 |
||
|
15707A
|
15707A
90401-10050 Bolt, Union(For Oil Pipe)[07.1981 - 08.1982] 18R..RX62 L=37 |
90401-10050 |
US $4.95 |
||
|
15707A
|
15707A
90401-10051 Bolt, Union(For Oil Filter Cap)[07.1981 - 08.1982] 18R..RX62 L=19 |
90401-10051 |
US $4.22 |
||
|
15707B
|
15707B
90406-08008 Union(For Oil Pipe)[07.1981 - 08.1982] 18R..RX62 |
90406-08008 |
US $7.13 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
