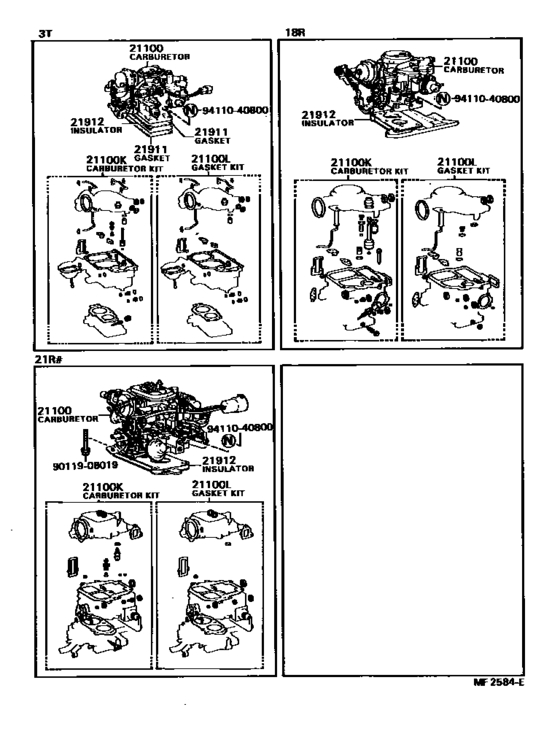

Carburetor Assembly ([09.1980 - ] (8009- )21R#,18R) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1981 - 1982
- Sales region
- Europe
- Frame
- RX62
- grade
- XL
- body
- WG
- ENGINE
- 18R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1981
- To
- 08.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21100
|
21100
21100-34691
Carburetor Assy
[07.1981 - 03.1982] 18R..RX62..3FC |
21100-34691 |
— | ||
| replacement | |||||
|
21100
|
21100
21100-34692
Carburetor Assy
[07.1981 - 03.1982] 18R..RX62..3FC |
21100-34692 |
— | ||
|
21100
|
21100
21100-34692
Carburetor Assy
[03.1982 - 08.1982] 18R..RX62..3FC |
21100-34692 |
— | ||
|
21100K
|
21100K
04211-34260 Carburetor Kit[07.1981 - 03.1982] 18R..RX62 |
04211-34260 |
US $123.76 |
||
|
21100K
|
21100K
04211-34300
Carburetor Kit
[03.1982 - 08.1982] 18R..RX62 |
04211-34300 |
— | ||
|
21100L
|
21100L
04212-34071 Gasket Kit, Carburetor[07.1981 - 03.1982] 18R..RX62 |
04212-34071 |
US $32.18 |
||
| replacement | |||||
|
21100L
|
21100L
04212-34072 Gasket Kit, Carburetor[07.1981 - 03.1982] 18R..RX62 |
04212-34072 |
US $52.42 |
||
|
21100L
|
21100L
04212-34072 Gasket Kit, Carburetor[03.1982 - 08.1982] 18R..RX62 |
04212-34072 |
US $52.42 |
||
|
21912
|
21912
21912-34062
Insulator, Carburetor Heat
[07.1981 - 08.1982] 18R..RX62 |
21912-34062 |
— | ||
|
9011908019
|
9011908019
90119-08019 Bolt, Stud(For Manifold To Carburetor) |
90119-08019 |
US $3.06 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
