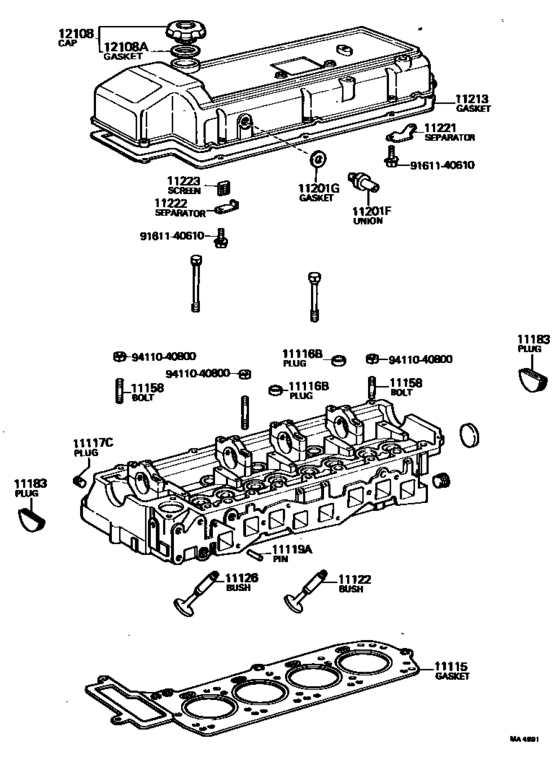

Cylinder Head ([07.1981 - 08.1982] (8107-8208)18R) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1981 - 1982
- Sales region
- Europe
- Frame
- RX62
- grade
- XL
- body
- WG
- ENGINE
- 18R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1981
- To
- 08.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11115
|
11115
11115-36020
Gasket, Cylinder Head
[07.1981 - 08.1982] 18R..RX62 |
11115-36020 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-36021
Gasket, Cylinder Head
[07.1981 - 08.1982] 18R..RX62 |
11115-36021 |
— | ||
|
11116B
|
11116B
96411-42000 Plug, Tight, No.1[07.1981 - 08.1982] 18R..RX62 |
96411-42000 |
from US $2.73 |
||
|
11117C
|
11117C
90344-51014 Plug, W/head Taper Screw, No.2[07.1981 - 08.1982] 18R..RX62 |
90344-51014 |
US $2.62 |
||
|
11119A
|
11119A
90250-08054 Pin, Straight[07.1981 - 08.1982] 18R..RX62 L=23,OD=8 |
90250-08054 |
from US $0.98 |
||
|
11122
|
11122
11122-34010 Bush, Intake Valve Guide[07.1981 - 08.1982] 18R..RX62 STD |
11122-34010 |
US $10.92 |
||
|
11122
|
11122
11123-34010
Bush, Intake Valve Guide
[07.1981 - 08.1982] 18R..RX62 O/S 0.05 |
11123-34010 |
— | ||
|
11126
|
11126
11122-34010 Bush, Intake Valve Guide[07.1981 - 08.1982] 18R..RX62 STD |
11122-34010 |
US $10.92 |
||
|
11126
|
11126
11123-34010
Bush, Intake Valve Guide
[07.1981 - 08.1982] 18R..RX62 O/S 0.05 |
11123-34010 |
— | ||
|
11158
|
11158
90116-08084 Bolt, Stud(For Head To Cylinder Head Cover)[07.1981 - 08.1982] 18R..RX62 L=32,S=7&14 |
90116-08084 |
US $2.04 |
||
|
11183
|
11183
11183-33010
Plug, Semicircular
[07.1981 - 08.1982] 18R..RX62 |
11183-33010 |
— | ||
|
11201F
|
11201F
90404-16108 Union(For Positive Crankcase Ventilation)[07.1981 - 08.1982] 18R..RX62 |
90404-16108 |
US $7.13 |
||
|
11201G
|
11201G
90430-16175
Gasket(For Positive Crankcase Ventilation)
[07.1981 - 08.1982] 18R..RX62 |
90430-16175 |
— | ||
|
11213
|
11213
11213-33010
Gasket, Cylinder Head Cover
[07.1981 - 08.1982] 18R..RX62 |
11213-33010 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-34020
Gasket, Cylinder Head Cover
[07.1981 - 08.1982] 18R..RX62 |
11213-34020 |
— | ||
|
11221
|
11221
11221-34010
Separator, Cylinder Head Cover, No.1
[07.1981 - 08.1982] 18R..RX62 |
11221-34010 |
— | ||
|
11222
|
11222
11222-34010
Separator, Cylinder Head Cover, No.2
[07.1981 - 08.1982] 18R..RX62 |
11222-34010 |
— | ||
|
11223
|
11223
11223-33010 Screen,cylinder Head Cover[07.1981 - 08.1982] 18R..RX62 |
11223-33010 |
US $5.10 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[09.1980 - 06.1983] 1GE..GX6#; L..LX60; 21R#,18R..RX6#; 3T..TX62; 5ME..MX62 |
12180-13010 |
from US $16.54 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1980 - 04.1985] 1GE..GX6#; L..LX60; 5ME..MX6#; 21R#,18R..RX6#; 3T..TX62 |
90430-37140 |
from US $1.17 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
