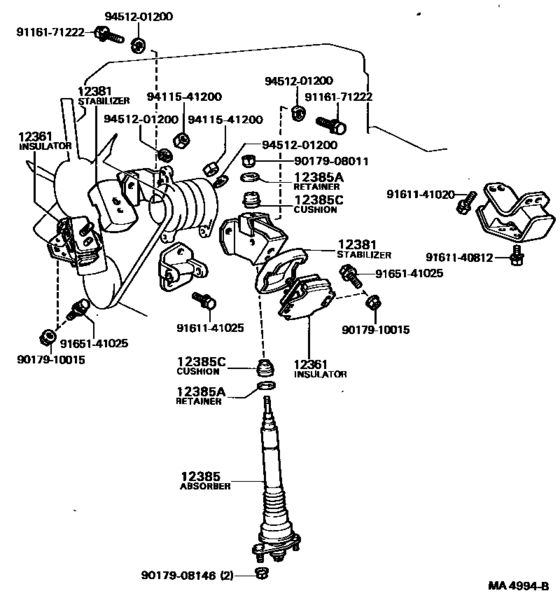

Mounting ([07.1981 - 08.1982] (8107-8208)18R) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1981 - 1982
- Sales region
- Europe
- Frame
- RX62
- grade
- XL
- body
- WG
- ENGINE
- 18R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1981
- To
- 08.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12361
|
12361
12361-38120 Insulator, Engine Mounting, Front[07.1981 - 08.1982] 18R..RX62 RH |
12361-38120 |
US $59.70 |
||
| replacement | |||||
|
12361
|
12361
12361-38130 Insulator, Engine Mounting, Front[07.1981 - 08.1982] 18R..RX62 RH |
12361-38130 |
from US $66.09 |
||
|
12361
|
12361
12362-34071 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [07.1981 - 08.1982] 18R..RX62 LH |
12362-34071 |
US $65.08 |
||
|
12381
|
12381
12381-34021 Stabilizer, Engine MountingENGINE MOUNTING [07.1981 - 08.1982] 18R..RX62 |
12381-34021 |
US $21.26 |
||
|
12385
|
12385
12308-34010
Absorber, Engine Mounting, No.1
[07.1981 - 08.1982] 18R..RX62 |
12308-34010 |
— | ||
|
12385A
|
12385A
90948-02003
Retainer, Steering Damper Cushion
[07.1981 - 08.1982] 18R..RX62 |
90948-02003 |
— | ||
|
12385C
|
12385C
90948-01012 Cushion, Shock AbsorberSHOCK ABSORBER [07.1981 - 08.1982] 18R..RX62 UPR |
90948-01012 |
US $3.93 |
||
|
12385C
|
12385C
90948-01013 Cushion, Shock AbsorberSHOCK ABSORBER [07.1981 - 08.1982] 18R..RX62 LWR |
90948-01013 |
US $3.93 |
||
|
9017908011
|
9017908011
90179-08011 New Genuine Part |
90179-08011 |
US $1.75 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.05 |
||
|
9116171222
|
9116171222
91161-71222
Bolt, Hexagon(For Drive Plate Setting)
|
91161-71222 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
