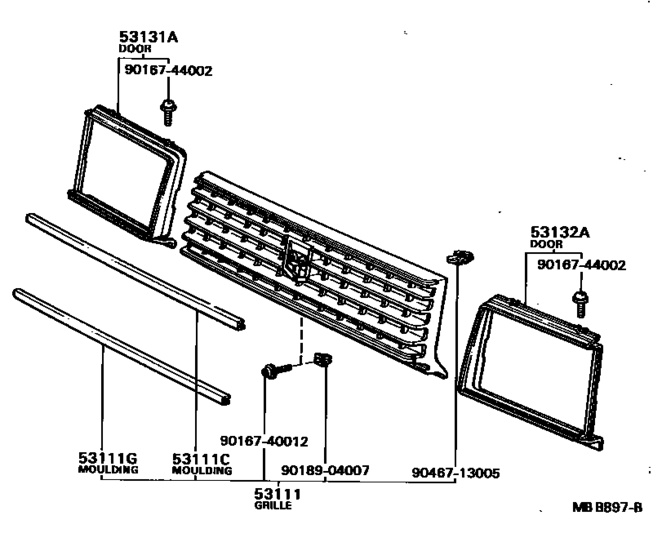

Radiator Grille ([09.1980 - 08.1982] (8009-8208)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1981 - 1982
- Sales region
- Europe
- Frame
- RX62
- grade
- XL
- body
- WG
- ENGINE
- 18R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1981
- To
- 08.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53111
|
53111
53100-29145 Grille, RadiatorRADIATOR [09.1980 - 08.1982] LX60,MX62,RX6#,TX62 |
53100-29145 |
US $352.35 |
||
| replacement | |||||
|
53111
|
53111
53100-22100 Grille, Radiator[09.1980 - 08.1982] LX60,MX62,RX6#,TX62 |
53100-22100 |
US $334.88 |
||
|
53111C
|
53111C
53121-22070
Moulding, Radiator Grille, Upper
[09.1980 - 08.1982] LX60,MX62,RX6#,TX62 |
53121-22070 |
— | ||
|
53111G
|
53111G
53122-22080
Moulding, Radiator Grille, Lower
[09.1980 - 08.1982] LX60,MX62,RX6#,TX62 |
53122-22080 |
— | ||
|
53131A
|
53131A
53131-29265 Door, Headlamp, RhHEADLAMP, RH [09.1980 - 08.1982] RX60..RHD;RX60..WG..LHD;LX60,MX62,RX62,TX62;RX60..SED..LHD..EUG;RX60..SED..LHD..(G EN,ME,SAA) |
53131-29265 |
US $136.86 |
||
| replacement | |||||
|
53131A
|
53131A
53131-29305 Door, Headlamp, Rh[09.1980 - 08.1982] RX60..RHD;RX60..WG..LHD;LX60,MX62,RX62,TX62;RX60..SED..LHD..EUG;RX60..SED..LHD..(G EN,ME,SAA) |
53131-29305 |
US $133.95 |
||
|
53132A
|
53132A
53132-29245 Door, Headlamp, LhHEADLAMP, LH [09.1980 - 08.1982] RX60..RHD;RX60..WG..LHD;LX60,MX62,RX62,TX62;RX60..SED..LHD..EUG;RX60..SED..LHD..(G EN,ME,SAA) |
53132-29245 |
US $136.86 |
||
| replacement | |||||
|
53132A
|
53132A
53132-29285 Door, Headlamp, Lh[09.1980 - 08.1982] RX60..RHD;RX60..WG..LHD;LX60,MX62,RX62,TX62;RX60..SED..LHD..EUG;RX60..SED..LHD..(G EN,ME,SAA) |
53132-29285 |
US $133.95 |
||
|
9016740012
|
9016740012
90167-40012
New Genuine Part
|
90167-40012 |
— | ||
|
9016744002
|
9016744002
90167-44002
New Genuine Part
|
90167-44002 |
— | ||
|
9018904007
|
9018904007
90189-04007 CLIP |
90189-04007 |
US $4.48 |
||
|
9046713005
|
9046713005
90467-13005 New Genuine Part |
90467-13005 |
US $3.23 |
||
