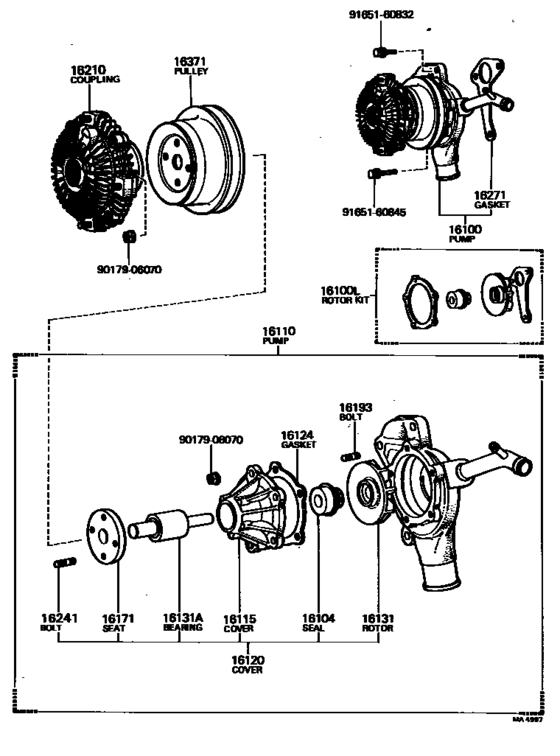

Water Pump ([07.1981 - 08.1982] (8107-8208)18R) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1981 - 1982
- Sales region
- Europe
- Frame
- RX62
- grade
- XL
- body
- WG
- ENGINE
- 18R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1981
- To
- 08.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39236
Pump Assy, Engine Water
[07.1981 - 08.1982] 18R..RX62 |
16100-39236 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-39237
Pump Assy, Engine Water
[07.1981 - 08.1982] 18R..RX62 |
16100-39237 |
— | ||
|
16100L
|
16100L
04162-34010 Rotor Kit, Water Pump[07.1981 - 08.1982] 18R..RX62 |
04162-34010 |
US $36.11 |
||
| replacement | |||||
|
16100L
|
16100L
04162-34011
Rotor Kit, Water Pump
[07.1981 - 08.1982] 18R..RX62 |
04162-34011 |
— | ||
|
16104
|
16104
16104-41111
Seal Set, Water Pump
[09.1980 - 09.1984] 21R#,18R..RX6#; 3T..TX62 |
16104-41111 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[09.1980 - 09.1984] 21R#,18R..RX6#; 3T..TX62 |
16104-15020 |
US $21.82 |
||
|
16110
|
16110
16110-34100 Pump Assy, Water, W/o Coupling[07.1981 - 08.1982] 18R..RX62 |
16110-34100 |
US $227.14 |
||
| replacement | |||||
|
16110
|
16110
16110-34140
Pump Assy, Water, W/o Coupling
[07.1981 - 08.1982] 18R..RX62 |
16110-34140 |
— | ||
|
16115
|
16115
16115-41110
Cover, Water Pump
[07.1981 - 08.1982] 18R..RX62 |
16115-41110 |
— | ||
|
16120
|
16120
16120-34100
Cover Assy, Water Pump
[07.1981 - 08.1982] 18R..RX62 |
16120-34100 |
— | ||
| replacement | |||||
|
16120
|
16120
16120-34140
Cover Assy, Water Pump
[07.1981 - 08.1982] 18R..RX62 |
16120-34140 |
— | ||
|
16124
|
16124
16129-33030
Gasket, Water Pump Cover
[09.1980 - 04.1985] 5ME..MX6#; 18R..RX62 |
16129-33030 |
— | ||
| replacement | |||||
|
16124
|
16124
16129-33031 Gasket, Water Pump Cover[09.1980 - 04.1985] 5ME..MX6#; 18R..RX62 |
16129-33031 |
US $7.72 |
||
|
16131
|
16131
16131-41110 Rotor, Water Pump[07.1981 - 08.1982] 18R..RX62 |
16131-41110 |
US $13.25 |
||
| replacement | |||||
|
16131
|
16131
16131-41130
Rotor, Water Pump
[07.1981 - 08.1982] 18R..RX62 |
16131-41130 |
— | ||
|
16131A
|
16131A
90369-30005
Bearing, Water Pump
[07.1981 - 08.1982] 18R..RX62 WPB 16112R-4RS |
90369-30005 |
— | ||
| replacement | |||||
|
16131A
|
16131A
90029-36837
Bearing, Water Pump
[07.1981 - 08.1982] 18R..RX62 WPB 16112R-4RS |
90029-36837 |
— | ||
|
16171
|
16171
16171-24030 Seat, Water Pump Pulley[07.1981 - 08.1982] 18R..RX62 |
16171-24030 |
US $14.41 |
||
|
16193
|
16193
16193-33030 Bolt, Stud(For Water Pump Cover)[09.1980 - 08.1983] 18R..RX62 L=20.5,S=5.5&9; 5ME..MX62 L=20.5,S=5.5&9 |
16193-33030 |
US $5.24 |
||
|
16210
|
16210
16210-34102
Coupling Assy, Fluid
[07.1981 - 08.1982] 18R..RX62 |
16210-34102 |
— | ||
|
16241
|
16241
16193-33030 Bolt, Stud(For Water Pump Cover)[09.1980 - 07.1984] 21R#,18R..RX6# |
16193-33030 |
US $5.24 |
||
|
16271
|
16271
16271-33010
Gasket, Water Pump
[07.1981 - 08.1982] 18R..RX62 |
16271-33010 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-33011
Gasket, Water Pump
[07.1981 - 08.1982] 18R..RX62 |
16271-33011 |
— | ||
|
16371
|
16371
16173-34100 Pulley, Fan[07.1981 - 08.1982] 18R..RX62 |
16173-34100 |
US $42.52 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165160832
|
9165160832
91651-60832 New Genuine Part |
91651-60832 |
US $1.46 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.79 |
||
