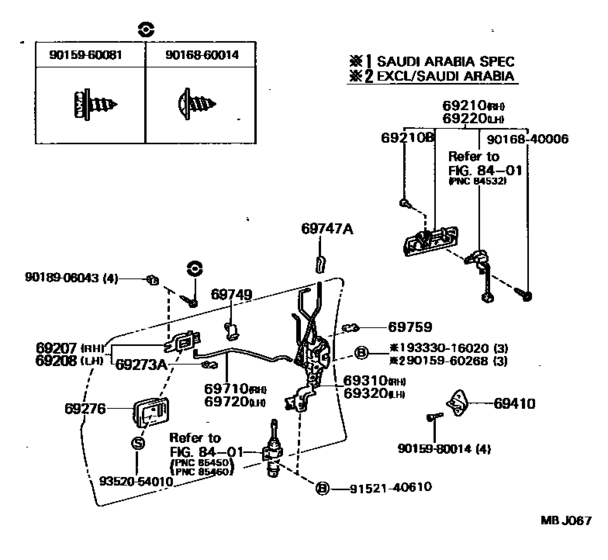

Front Door Lock & Handle ([04.1985 - ] (8504- )HT) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1985 - 1986
- Sales region
- General
- Frame
- RX70
- grade
- GL
- body
- HT
- ENGINE
- 21R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 04.1985
- To
- 08.1986
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Destination
- ME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69205-22030 Handle Sub-Assy, Front Door Inside, Rh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX |
69205-22030 |
US $20.82 |
||
|
69208
|
69208
69206-22030 Handle Sub-Assy, Front Door Inside, Lh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX |
69206-22030 |
US $20.82 |
||
|
69210
|
69210
69210-22080 Handle Assy, Front Door, Outside Rh[08.1984 - 08.1986] RX70,YX70;MX73..EUR,ME;GX71,LX7#,MX72..LHD |
69210-22080 |
US $53.87 |
||
|
69210B
|
69210B
90541-03021 Cushion(For Front Door Outside Handle)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
90541-03021 |
US $5.56 |
||
|
69220
|
69220
69220-22070 Handle Assy, Front Door Outside, Lh[08.1984 - 08.1988] LX7#,MX7#,RX7#,YX70..GL,GLX,GT,STD,XL; GX71..GL;GX71..RHD |
69220-22070 |
US $53.87 |
||
|
69273A
|
69273A
69759-22060 Snap, Door Inside Handle Rod(For Front Door)[10.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX RH |
69759-22060 |
US $3.64 |
||
|
69273A
|
69273A
69759-22070 Snap, Door Inside Handle Rod(For Front Door)[10.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX LH |
69759-22070 |
US $3.64 |
||
|
69276
|
69276
69277-22050-02
Bezel, Front Door Inside Handle
[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70 MAROON,RED |
69277-22050-02 |
— | ||
| replacement | |||||
|
69276
|
69276
69277-22050-13 Bezel, Front Door Inside Handle, Rh[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70 MAROON,RED |
69277-22050-13 |
US $9.26 |
||
|
69276
|
69276
69277-22050-03 Bezel, Front Door Inside Handle[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70,YX70 GRAY,COOL GRAY |
69277-22050-03 |
US $7.43 |
||
| replacement | |||||
|
69276
|
69276
69277-22050-13 Bezel, Front Door Inside Handle, Rh[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70,YX70 GRAY,COOL GRAY |
69277-22050-13 |
US $9.26 |
||
|
69276
|
69276
69277-22050-04 Bezel, Front Door Inside Handle[08.1986 - 08.1988] GX71,LX70,MX73,RX7#..ARL,GEN,ME BLUE,DARK BLUE |
69277-22050-04 |
US $8.88 |
||
| replacement | |||||
|
69276
|
69276
69277-22050-14 Bezel, Front Door Inside Handle, Rh[08.1986 - 08.1988] GX71,LX70,MX73,RX7#..ARL,GEN,ME BLUE,DARK BLUE |
69277-22050-14 |
US $8.88 |
||
|
69276
|
69276
69277-22050-05 Bezel, Front Door Inside Handle[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70,YX70 BEIGE,BEIGE |
69277-22050-05 |
US $8.88 |
||
| replacement | |||||
|
69276
|
69276
69277-22050-13 Bezel, Front Door Inside Handle, Rh[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70,YX70 BEIGE,BEIGE |
69277-22050-13 |
US $9.26 |
||
|
69276
|
69276
69277-22050-12 Bezel, Front Door Inside Handle[08.1986 - 08.1988] GX71,LX70,MX73,RX7#..ARL,GEN,ME MAROON,MAROON |
69277-22050-12 |
US $8.88 |
||
| replacement | |||||
|
69276
|
69276
69277-22050-13 Bezel, Front Door Inside Handle, Rh[08.1986 - 08.1988] GX71,LX70,MX73,RX7#..ARL,GEN,ME MAROON,MAROON |
69277-22050-13 |
US $9.26 |
||
|
69276
|
69276
69277-22050-15 Bezel, Front Door Inside Handle[08.1986 - 12.1986] RX72..ME;GX71,LX70,MX73,RX70,71..ARL,GEN,ME BEIGE,DARK BEIGE |
69277-22050-15 |
US $8.88 |
||
| replacement | |||||
|
69276
|
69276
69277-22050-13 Bezel, Front Door Inside Handle, Rh[08.1986 - 12.1986] RX72..ME;GX71,LX70,MX73,RX70,71..ARL,GEN,ME BEIGE,DARK BEIGE |
69277-22050-13 |
US $9.26 |
||
|
69310
|
69310
69310-22290 Lock Assy, Front Door, RhFRONT DOOR, RH [04.1985 - 08.1985] GX71,MX73,RX70..HT SAUDI ARABIA SPEC |
69310-22290 |
US $109.20 |
||
| replacement | |||||
|
69310
|
69310
69310-22291 Lock Assy, Front Door, RhFRONT DOOR, RH [04.1985 - 08.1985] GX71,MX73,RX70..HT SAUDI ARABIA SPEC |
69310-22291 |
US $110.66 |
||
|
69310
|
69310
69310-22291 Lock Assy, Front Door, RhFRONT DOOR, RH [08.1985 - 08.1988] GX71,MX73,RX70,72..HT |
69310-22291 |
US $110.66 |
||
|
69310
|
69310
69310-22300
Lock Assy, Front Door, Rh
[04.1985 - 08.1985] GX71,MX73,RX70..HT EXCL/SAUDI ARABIA |
69310-22300 |
— | ||
| replacement | |||||
|
69310
|
69310
69310-22301
Lock Assy, Front Door, Rh
[04.1985 - 08.1985] GX71,MX73,RX70..HT EXCL/SAUDI ARABIA |
69310-22301 |
— | ||
|
69320
|
69320
69320-22280
Lock Assy, Front Door, Lh
[04.1985 - 08.1985] GX71,MX73,RX70..HT SAUDI ARABIA SPEC |
69320-22280 |
— | ||
| replacement | |||||
|
69320
|
69320
69320-22281 Lock Assy, Front Door, LhFRONT DOOR, LH [04.1985 - 08.1985] GX71,MX73,RX70..HT SAUDI ARABIA SPEC |
69320-22281 |
US $110.66 |
||
|
69320
|
69320
69320-22281 Lock Assy, Front Door, LhFRONT DOOR, LH [08.1985 - 08.1988] GX71,MX73,RX70,72..HT |
69320-22281 |
US $110.66 |
||
|
69320
|
69320
69320-22290
Lock Assy, Front Door, Lh
[04.1985 - 08.1985] GX71,MX73,RX70..HT EXCL/SAUDI ARABIA |
69320-22290 |
— | ||
| replacement | |||||
|
69320
|
69320
69320-22291
Lock Assy, Front Door, Lh
[04.1985 - 08.1985] GX71,MX73,RX70..HT EXCL/SAUDI ARABIA |
69320-22291 |
— | ||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
69410-87001 |
from US $9.50 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
69410-AA020 |
US $50.37 |
||
|
69710
|
69710
69711-22050 Link Assy, Front Door Open Control, Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
69711-22050 |
US $8.01 |
||
|
69720
|
69720
69712-22050 Link Assy, Front Door Open Control, Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
69712-22050 |
US $8.01 |
||
|
69747A
|
69747A
69741-22010
Button, Door Locking(For Front Door)
[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
69741-22010 |
— | ||
|
69749
|
69749
69749-20010 Clamp, Front Door Lock Link[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
69749-20010 |
from US $3.23 |
||
|
69759
|
69759
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 LH |
69759-20040 |
from US $1.58 |
||
|
69759
|
69759
69759-20050 Snap(For Rear Door Lock)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 RH |
69759-20050 |
US $1.93 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9015960268
|
9015960268
90159-60268 Screw |
90159-60268 |
US $2.33 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $2.15 |
||
|
9016840006
|
9016840006
90168-40006 New Genuine Part |
90168-40006 |
US $0.87 |
||
|
9016860014
|
9016860014
90168-60014 New Genuine Part |
90168-60014 |
US $1.60 |
||
|
9018906843
|
9018906843
90189-06843
New Genuine Part
|
90189-06843 |
— | ||
|
9152140610
|
9152140610
91521-40610
New Genuine Part
|
91521-40610 |
— | ||
|
9333016020
|
9333016020
93330-16020
New Genuine Part
|
93330-16020 |
— | ||
|
9352054010
|
9352054010
93520-54010 Screw |
93520-54010 |
from US $1.44 |
||
