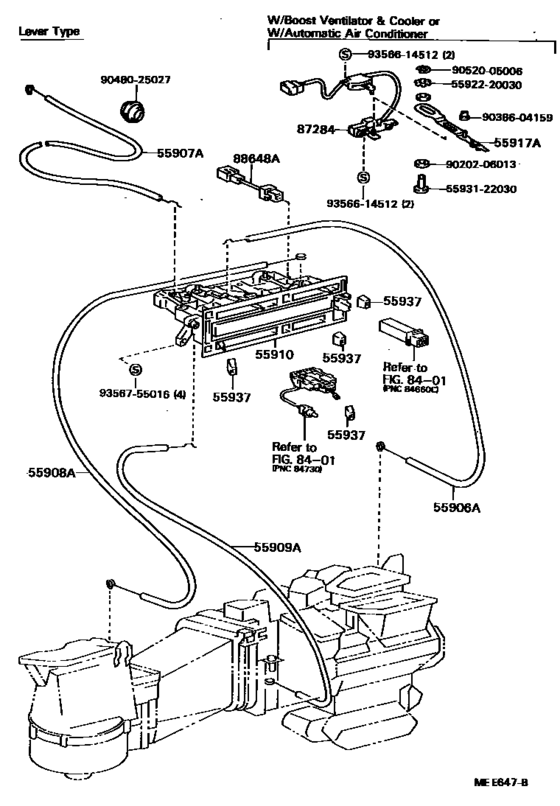

Heating & Air Conditioning - Control & Air Duct ([08.1984 - ] (8408- )RHD..ARL,EUR ; (8408- )GX71,RX70,7 2,YX70..RHD ; (8701- )MX73..EFI. .GEN) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- RX70
- grade
- GL
- body
- SED
- ENGINE
- 21R
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 05.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55906A
|
55906A
55906-22100 Cable Sub-Assy, Defroster Damper Control[08.1984 - 08.1988] MX73..RHD..(ARL,EUR); GX71,RX70,72,YX70..RHD |
55906-22100 |
US $7.43 |
||
|
55907A
|
55907A
55907-22160 Cable Sub-Assy, Water Valve Control[08.1984 - 08.1988] MX73..RHD..(ARL,EUR); GX71,RX70,72,YX70..RHD |
55907-22160 |
US $7.43 |
||
|
55908A
|
55908A
55908-22050 Cable Sub-Assy, Air Inlet Damper Control[08.1984 - 08.1988] MX73..RHD..(ARL,EUR); GX71,RX70,72,YX70..RHD |
55908-22050 |
US $9.61 |
||
|
55909A
|
55909A
55909-22040 Cable Sub-Assy, Airmix Damper Control[08.1984 - 08.1986] GX71,LX7#,RX70,YX70 |
55909-22040 |
US $7.43 |
||
|
55910
|
55910
55910-22290 Control Assy, Heater Or Boost Ventilator[08.1984 - 08.1986] MX73..RHD..(ARL,EUR) W/*HEA,W/*HEA & COOLER; GX71,RX70,YX70..RHD W/*HEA,W/*HEA & COOLER |
55910-22290 |
US $145.60 |
||
|
55910
|
55910
55910-22300 Control Assy, Heater Or Boost VentilatorHEATER OR BOOST VENTILATOR [08.1984 - 08.1988] RX70,72..RHD..GEN W/*BV & COOLER |
55910-22300 |
US $145.60 |
||
|
55910
|
55910
55910-22310 Control Assy, Heater Or Boost VentilatorHEATER OR BOOST VENTILATOR [08.1984 - 08.1988] RX70,72..RHD..GEN W/*BV ONLY |
55910-22310 |
US $145.60 |
||
|
55917A
|
55917A
55917-22070 Lever, Temperature Damper ControlTEMPERATURE DAMPER CONTROL [08.1984 - 08.1988] RX70,72..RHD..GEN W/*BV & COOLER |
55917-22070 |
US $15.58 |
||
|
55937
|
55937
55905-30081 Knob, Heater Control[08.1984 - 08.1986] GX71,RX70,YX70..RHD; MX7#..ARL,EUR,ME W/LEVER TYPE |
55905-30081 |
US $9.03 |
||
|
87284
|
87284
88032-22070
Resistor Sub-Assy, Variable
[08.1984 - 08.1988] RX70,72..RHD..GEN W/*BV & COOLER |
88032-22070 |
— | ||
|
88648A
|
88648A
88648-22140 Wiring, Cooler[08.1986 - 08.1988] MX73..ARL; GX71,RX70,72..RHD..GEN; GX71,LX70,MX73,RX7#..LHD |
88648-22140 |
US $9.03 |
||
|
5592220030
|
5592220030
55922-20030 Bracket, Heater Control Base |
55922-20030 |
US $3.49 |
||
|
5593122030
|
5593122030
55931-22030 Clamp, Heater Control Wire |
55931-22030 |
US $3.20 |
||
|
9020206013
|
9020206013
90202-06013 New Genuine Part |
90202-06013 |
US $1.75 |
||
|
9038604159
|
9038604159
90386-04159 New Genuine Part |
90386-04159 |
US $1.75 |
||
|
9048025027
|
9048025027
90480-25027 New Genuine Part |
90480-25027 |
US $2.48 |
||
|
9052005006
|
9052005006
90520-05006
New Genuine Part
|
90520-05006 |
— | ||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
