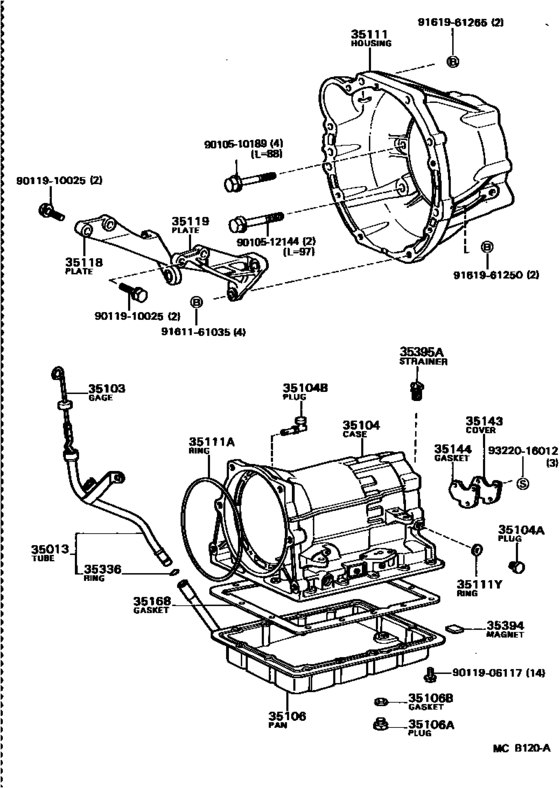

Transmission Case & Oil Pan (Atm) ([08.1984 - ] (8408- )RX70,72..4FC) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- RX70
- grade
- GL
- body
- SED
- ENGINE
- 21R
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 08.1984
- To
- 05.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-14091 Tube Sub-Assy, Transmission Oil FillerTRANSMISSION OIL FILLER [08.1984 - 08.1986] RX70..4FC |
35013-14091 |
US $25.33 |
||
|
35103
|
35103
35103-20081 Gage Sub-Assy, Transmission Oil Level[08.1984 - 05.1987] RX70..4FC |
35103-20081 |
US $19.66 |
||
|
35104
|
35104
35104-30082 Case Sub-Assy, Automatic Transmission[08.1984 - 10.1984] RX70..4FC |
35104-30082 |
US $1,070.16 |
||
| replacement | |||||
|
35104
|
35104
35104-30140 Case Sub-Assy, Automatic TransmissionAUTOMATIC TRANSMISSION [08.1984 - 10.1984] RX70..4FC |
35104-30140 |
US $969.70 |
||
|
35104
|
35104
35104-30083 Case Sub-Assy, Automatic Transmission[08.1986 - 05.1987] RX70..4FC..GEN |
35104-30083 |
US $1,023.57 |
||
|
35104
|
35104
35104-30140 Case Sub-Assy, Automatic TransmissionAUTOMATIC TRANSMISSION [10.1984 - 08.1986] RX70..4FC |
35104-30140 |
US $969.70 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03069 Plug, Breather, No.1 (Atm)[08.1984 - 08.1986] GX71,LX7#,MX7#,RX70..4FC |
90930-03069 |
US $7.28 |
||
|
35104B
|
35104B
90930-03108 Plug, Breather, No.1 (Atm)[08.1986 - 08.1988] GX71,LX70,MX73,RX70,72..4FC |
90930-03108 |
US $19.70 |
||
|
35106
|
35106
35106-22031 Pan Sub-Assy, Automatic Transmission Oil[08.1984 - 05.1987] RX70..4FC |
35106-22031 |
US $94.64 |
||
|
35106A
|
35106A
90341-10006
Plug (For Transfer Oil Pan)
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90341-10006 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35178-30010 |
US $3.40 |
||
|
35111
|
35111
35111-20071 Housing, Automatic TransmissionAUTOMATIC TRANSMISSION [08.1984 - 05.1987] RX70..4FC |
35111-20071 |
US $628.99 |
||
|
35111A
|
35111A
90301-99006
Ring, O (For Automatic Transmission Housing)
[08.1984 - 08.1987] GX71,LX7#,MX7#,RX70,72..4FC |
90301-99006 |
— | ||
| replacement | |||||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[08.1984 - 08.1987] GX71,LX7#,MX7#,RX70,72..4FC |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-06196 |
from US $2.24 |
||
|
35118
|
35118
33118-22030 Plate, Stiffener, Rh(Mtm)[08.1984 - 08.1988] RX70,72..4FC |
33118-22030 |
US $35.67 |
||
|
35119
|
35119
33119-22021 Plate, Stiffener, Lh(Mtm)[08.1984 - 08.1988] RX70,72..4FC |
33119-22021 |
US $34.36 |
||
| replacement | |||||
|
35119
|
35119
33119-22022
Plate, Stiffener, Lh(Mtm)
[08.1984 - 08.1988] RX70,72..4FC |
33119-22022 |
— | ||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-22010
Gasket, Transmission Case Rear Cover
[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35144-22010 |
— | ||
| replacement | |||||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
90301-09173 |
from US $2.03 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1984 - 08.1988] GX71,LX7#,MX7#,RX70,72..4FC |
35394-30011 |
from US $5.62 |
||
|
35395A
|
35395A
35395-40010 Strainer, Governor Oil[08.1984 - 08.1988] MX73..4FC..ME; GX71,RX70 |
35395-40010 |
US $12.58 |
||
|
9010510189
|
9010510189
90105-10189 New Genuine Part |
90105-10189 |
US $2.48 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011906117
|
9011906117
90119-06117
Bolt (For Automatic Transmission Oil Pan)
|
90119-06117 |
— | ||
| replacement | |||||
|
9011906117
|
9011906117
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90119-06173 |
from US $0.76 |
||
|
9011910025
|
9011910025
90119-10025 Bolt (For Transmission Control Cable Bracket) |
90119-10025 |
US $1.89 |
||
| replacement | |||||
|
9011910025
|
9011910025
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9161961265
|
9161961265
91619-61265 Bolt(For Transaxle & Engine Setting) |
91619-61265 |
US $4.12 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
