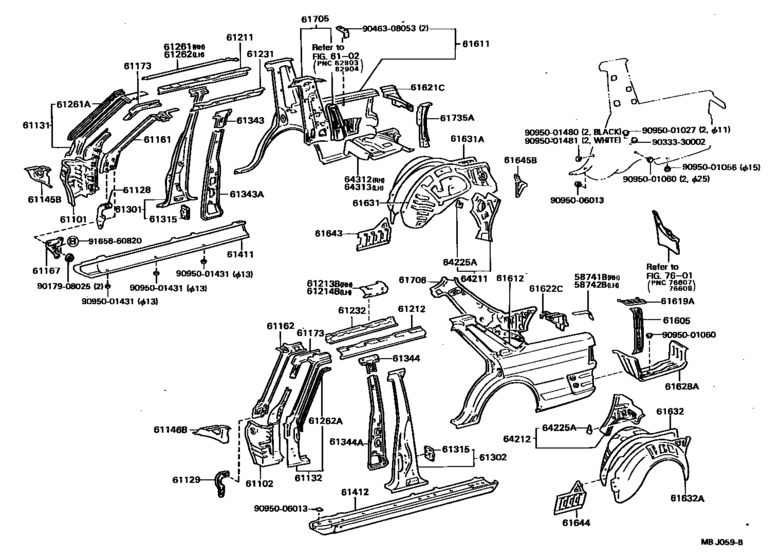

Side Member ([04.1985 - ] (8504- )HT) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1986 - 1988
- Sales region
- Europe
- Frame
- RX72
- grade
- GT
- body
- HT
- ENGINE
- 22R
- TRANSMISSION
- MTM
- Model
- CRESSIDA
- From
- 08.1986
- To
- 08.1988
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Destination
- ME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741B
|
58741B
58741-22010 Protector, Quarter Panel, Rh[04.1985 - 08.1988] MX73,RX72..HT |
58741-22010 |
US $11.50 |
||
|
58742B
|
58742B
58742-22010 Protector, Quarter Panel, Lh[04.1985 - 08.1988] MX73,RX72..HT |
58742-22010 |
US $12.38 |
||
|
61101
|
61101
61101-22110 Panel Sub-Assy, Cowl Side, RhCOWL SIDE, RH [08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..LHD |
61101-22110 |
US $71.64 |
||
|
61102
|
61102
61102-22130 Panel Sub-Assy, Cowl Side, LhCOWL SIDE, LH [08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..LHD |
61102-22130 |
US $71.64 |
||
|
61129
|
61129
61126-22020 Reinforcement, Cowl Side Panel, LhCOWL SIDE PANEL, LH [08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..LHD |
61126-22020 |
US $21.69 |
||
|
61131
|
61131
61131-22909 Pillar, Front Body, Upper Outer Rh[05.1986 - 08.1988] GX71,MX73,RX70,72..HT |
61131-22909 |
US $320.32 |
||
|
61145B
|
61145B
61145-22050 Gusset, Front Body Pillar, Lower Rh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61145-22050 |
US $30.43 |
||
|
61146B
|
61146B
61146-22050 Gusset, Front Body Pillar, Lower Lh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61146-22050 |
US $30.43 |
||
|
61161
|
61161
61161-22110 Pillar, Front Body, Upper Inner Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61161-22110 |
US $128.13 |
||
|
61162
|
61162
61162-22110 Pillar, Front Body, Upper Inner Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61162-22110 |
US $128.13 |
||
|
61167
|
61167
61165-22070 Bracket, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#..LHD |
61165-22070 |
US $21.99 |
||
|
61173
|
61173
61173-22070 Reinforcement, Front Body Pillar, Upper Inner[04.1985 - 08.1988] GX71,MX73,RX70,72..HT RH |
61173-22070 |
US $33.49 |
||
|
61173
|
61173
61174-22060 Reinforcement, Front Body Pillar, Upper Inner[04.1985 - 08.1988] GX71,MX73,RX70,72..HT LH |
61174-22060 |
US $33.49 |
||
|
61211
|
61211
61211-22090 Rail, Roof Side, Outer Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61211-22090 |
US $65.37 |
||
|
61212
|
61212
61212-22090 Rail, Roof Side, Outer Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61212-22090 |
US $65.37 |
||
|
61213B
|
61213B
61213-22020 Rail, Roof Side, Outer No.2 Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61213-22020 |
US $26.94 |
||
|
61214B
|
61214B
61214-22020 Rail, Roof Side, Outer No.2 Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61214-22020 |
US $26.94 |
||
|
61231
|
61231
61231-22180
Rail, Roof Side, Inner Rh
[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61231-22180 |
— | ||
|
61232
|
61232
61232-22170
Rail, Roof Side, Inner Lh
[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61232-22170 |
— | ||
|
61261
|
61261
61261-22080 Channel, Roof Drip, Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61261-22080 |
US $56.35 |
||
|
61261A
|
61261A
61263-22031 Channel, Roof Drip Side, Front Rh[05.1986 - 08.1988] GX71,MX73,RX70,72..HT |
61263-22031 |
US $68.72 |
||
|
61262
|
61262
61262-22080 Channel, Roof Drip, Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61262-22080 |
US $56.35 |
||
|
61262A
|
61262A
61264-22041 Channel, Roof Drip Side, Front Lh[05.1986 - 08.1988] GX71,MX73,RX70,72..HT |
61264-22041 |
US $68.72 |
||
|
61301
|
61301
61301-22908
Pillar Sub-Assy, Center Body, Rh
[08.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61301-22908 |
— | ||
|
61302
|
61302
61302-22908
Pillar Sub-Assy, Center Body, Lh
[08.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61302-22908 |
— | ||
|
61315
|
61315
61315-22020 Retainer, Door Lock Striker Plate[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61315-22020 |
US $18.64 |
||
|
61343
|
61343
61341-22110 Pillar, Center Body, Inner Upper Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61341-22110 |
US $21.26 |
||
|
61343A
|
61343A
61343-22908 Pillar, Center Body, Inner Rh[08.1986 - 08.1988] MX73,RX72..HT |
61343-22908 |
US $182 |
||
|
61344
|
61344
61342-22130 Pillar, Center Body, Inner Upper Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61342-22130 |
US $21.26 |
||
|
61344A
|
61344A
61344-22908 Pillar, Center Body, Inner Lh[08.1986 - 08.1988] MX73,RX72..HT |
61344-22908 |
US $182 |
||
|
61411
|
61411
61401-22030 Panel, Rocker, Outer Rh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61401-22030 |
US $445.54 |
||
|
61412
|
61412
61402-22030 Panel, Rocker, Outer Lh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61402-22030 |
US $445.54 |
||
|
61605
|
61605
61609-22010 Brace Sub-Assy, Quarter Panel, Lh[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..HT,SED |
61609-22010 |
US $63.04 |
||
|
61611
|
61611
61601-22640 Panel, Quarter, RhQUARTER, RH [04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61601-22640 |
US $827.01 |
||
| replacement | |||||
|
61611
|
61611
61601-22963 Panel, Quarter, Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61601-22963 |
US $752.75 |
||
|
61612
|
61612
61602-22931 Panel, Quarter, LhQUARTER, LH [04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61602-22931 |
US $810.99 |
||
| replacements | |||||
|
61612
|
61612
61602-22936 Panel, Quarter, Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61602-22936 |
US $744.02 |
||
|
61612
|
61612
61622-22080 Trough, Luggage Compartment Opening, Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61622-22080 |
US $25.63 |
||
|
61619A
|
61619A
61619-22060 Reinforcement, Quarter Panel[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61619-22060 |
US $26.50 |
||
|
61621C
|
61621C
61621-22080 Trough, Luggage Compartment Opening, Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61621-22080 |
US $25.63 |
||
|
61622C
|
61622C
61622-22080 Trough, Luggage Compartment Opening, Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61622-22080 |
US $25.63 |
||
|
61628A
|
61628A
61628-22020 Extension, Quarter Panel, Lower Lh[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..HT,SED |
61628-22020 |
US $65.67 |
||
|
61631
|
61631
61607-22914 Panel, Quarter Wheel House, Rh[08.1984 - 08.1988] LX70,RX70,72,YX70..HT,SED |
61607-22914 |
US $275.18 |
||
|
61631A
|
61631A
61631-22906 Panel, Quarter Wheel House, Outer Rh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61631-22906 |
US $161.62 |
||
|
61632
|
61632
61608-22913
Panel, Quarter Wheel House, Lh
[08.1984 - 08.1988] LX70,RX70,72,YX70..HT,SED |
61608-22913 |
— | ||
|
61632A
|
61632A
61632-22100 Panel, Quarter Wheel House, Outer Lh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61632-22100 |
US $161.62 |
||
|
61643
|
61643
61641-22030 Gusset, Quarter Wheel House, Front Rh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61641-22030 |
US $40.91 |
||
|
61644
|
61644
61642-22030 Gusset, Quarter Wheel House, Front Lh[08.1984 - 08.1988] GX71,LX7#,MX7#,RX7#,YX70 |
61642-22030 |
US $40.91 |
||
|
61645B
|
61645B
61645-22020 Gusset, Quarter Wheel House, Rear Rh[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..HT,SED |
61645-22020 |
US $7.72 |
||
|
61705
|
61705
61705-22906 Panel Sub-Assy, Roof Side, Inner Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61705-22906 |
US $246.06 |
||
|
61706
|
61706
61706-22906
Panel Sub-Assy, Roof Side, Inner Lh
[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61706-22906 |
— | ||
|
61735A
|
61735A
61735-22030 Panel, Roof Side, Inner Rear Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
61735-22030 |
US $37.56 |
||
|
64211
|
64211
64211-22901 Strainer, Package Tray To Floor, Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
64211-22901 |
US $33.63 |
||
|
64212
|
64212
64212-22901 Strainer, Package Tray To Floor, Lh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
64212-22901 |
US $33.63 |
||
|
64225A
|
64225A
64225-22020 Hanger, Rear Seat Cushion Support[08.1984 - 08.1988] GX71,LX7#,MX73,RX7#,YX70..HT,SED |
64225-22020 |
US $5.39 |
||
|
64312
|
64312
64312-22905 Bracket, Package Tray, Rh[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
64312-22905 |
US $69.45 |
||
|
64313
|
64313
64313-22905
Bracket, Package Tray, Lh
[04.1985 - 08.1988] GX71,MX73,RX70,72..HT |
64313-22905 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9046308053
|
9046308053
90463-08053 New Genuine Part |
90463-08053 |
US $4.22 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.58 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001431
|
9095001431
90950-01431 New Genuine Part |
90950-01431 |
US $5.39 |
||
|
9095001480
|
9095001480
90950-01480
New Genuine Part
|
90950-01480 |
— | ||
|
9095001481
|
9095001481
90950-01481 New Genuine Part |
90950-01481 |
US $1.89 |
||
| replacement | |||||
|
9095001481
|
9095001481
90950-01480
New Genuine Part
|
90950-01480 |
— | ||
|
9095006013
|
9095006013
90950-06013 New Genuine Part |
90950-06013 |
US $2.15 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
