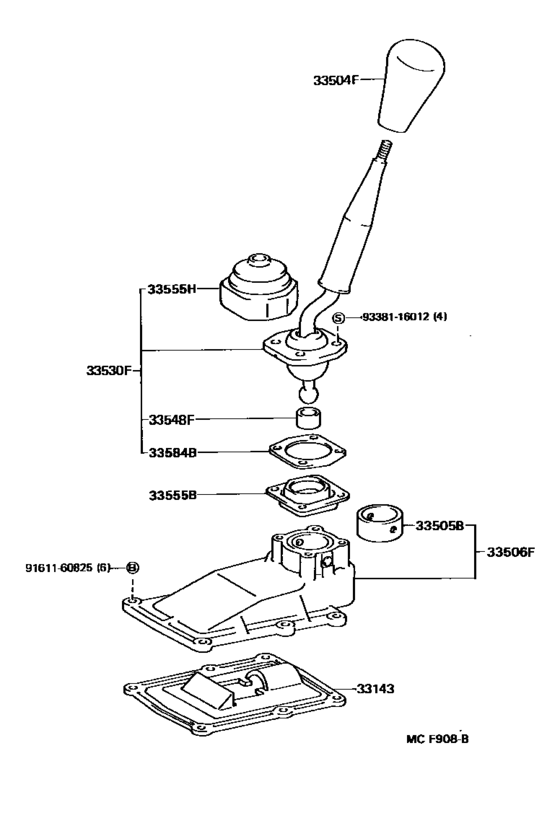

Shift Lever & Retainer ([08.1988 - 11.1991] (8808-9111)5F) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- RX80
- grade
- GL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- V
- Model
- CRESSIDA
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143
|
33143
33143-22020 Plate, Extension Housing Oil Baffle[08.1988 - 11.1991] GX81,LX80,MX81,RX8#..5F |
33143-22020 |
US $49.06 |
||
|
33504F
|
33504F
33504-24010-57 Knob Sub-Assy, Shift Lever[08.1988 - 08.1989] GX81,LX80,MX81,RX8#..5F DARK BLUE,TRIM8# |
33504-24010-57 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[08.1988 - 08.1989] GX81,LX80,MX81,RX8#..5F DARK BLUE,TRIM8# |
33504-24010-C1 |
from US $31.42 |
||
|
33504F
|
33504F
33504-24010-58
Knob Sub-Assy, Shift Lever
[08.1988 - 09.1989] GX81,LX80,MX81,RX8#..5F NEW MAROON,TRIM3# |
33504-24010-58 |
— | ||
|
33504F
|
33504F
33504-24010-59
Knob Sub-Assy, Shift Lever
[08.1988 - 08.1989] GX81,LX80,MX81,RX8#..5F SABLE,TRIM4# |
33504-24010-59 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[08.1988 - 08.1989] GX81,LX80,MX81,RX8#..5F SABLE,TRIM4# |
33504-24010-C1 |
from US $31.42 |
||
|
33506F
|
33506F
33570-22070
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[08.1988 - 11.1991] RX8#..5F |
33570-22070 |
— | ||
| replacement | |||||
|
33506F
|
33506F
33570-30010 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[08.1988 - 11.1991] RX8#..5F |
33570-30010 |
US $93.48 |
||
|
33530F
|
33530F
33530-22270 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [08.1988 - 11.1991] LX80,RX8#..LHD..5F |
33530-22270 |
US $135.41 |
||
| replacement | |||||
|
33530F
|
33530F
33530-22271 Lever Assy, Shift (For Floor Shift)SHIFT (FOR FLOOR SHIFT) [08.1988 - 11.1991] LX80,RX8#..LHD..5F |
33530-22271 |
US $135.41 |
||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[08.1988 - 09.1991] GX81,LX80,MX81,RX8#..5F |
33548-31010 |
from US $3.49 |
||
|
33555B
|
33555B
33555-22090 Boot, Shift & Select Lever[04.1989 - 08.1996] GX81,MX81,RX8#..5F |
33555-22090 |
US $27.52 |
||
|
33555H
|
33555H
33555-22050 Boot, Shift Lever[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..5F |
33555-22050 |
from US $9.86 |
||
|
33584B
|
33584B
33584-22020 Gasket, Control Shift Lever Retainer, No.2[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..5F |
33584-22020 |
from US $0.82 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
