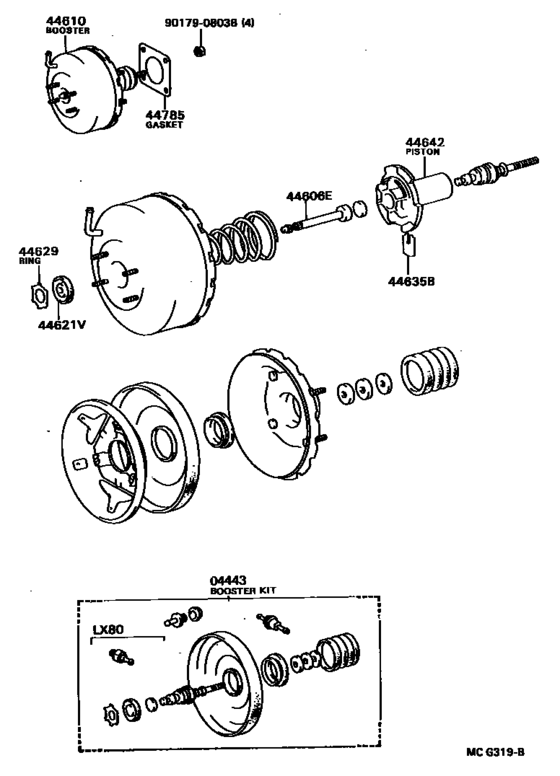

Brake Booster & Vacuum Tube ([08.1988 - ] AISIN (8808- )GX81,RX8#..LHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- RX80
- grade
- XL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04443
|
04443
04443-22610 Booster Kit, Brake[08.1988 - 02.1989] GX81..RHD AISIN; RX8#..LHD |
04443-22610 |
US $155.79 |
||
|
04443
|
04443
04443-22680 Booster Kit, Brake[02.1989 - 08.1990] GX81..RHD;RX8#..LHD JKC |
04443-22680 |
US $155.79 |
||
|
44606E
|
44606E
44606-12520
Rod Sub-Assy, Booster Piston(For Clutch Booster)
[08.1988 - 02.1989] GX81..RHD AISIN; GX81,RX8#..LHD |
44606-12520 |
— | ||
|
44606E
|
44606E
44608-32020 Rod Sub-Assy, Brake Booster Piston[02.1989 - 08.1990] GX81..RHD;RX8#..LHD JKC |
44608-32020 |
US $22.01 |
||
|
44610
|
44610
44610-22730
Booster Assy, Brake
[08.1988 - 02.1989] GX81,RX8#..LHD |
44610-22730 |
— | ||
|
44610
|
44610
44610-22800 Booster Assy, BrakeBRAKE [02.1989 - 08.1996] RX8#..LHD JKC |
44610-22800 |
US $607.15 |
||
|
44621V
|
44621V
44621-28120 Seal, Booster Body No.1(For Clutch Booster)[08.1988 - 08.1990] GX81,RX81;RX80..LHD |
44621-28120 |
from US $4.35 |
||
|
44629
|
44629
44628-28120 Ring, Circular Internal(For Clutch Booster)[08.1988 - 08.1990] GX81,RX81;RX80..LHD |
44628-28120 |
US $6.99 |
||
|
44635B
|
44635B
44633-28130 Key, Booster Valve Plunger[02.1989 - 08.1990] GX81..RHD;RX8#..LHD JKC |
44633-28130 |
US $5.39 |
||
|
44635B
|
44635B
44635-28120 Key, Valve Stopper[08.1988 - 02.1989] GX81..RHD AISIN; GX81,RX8#..LHD |
44635-28120 |
US $4.95 |
||
|
44642
|
44642
44642-32010
Piston, Brake Booster
[08.1988 - 08.1990] GX81,RX81;RX80..LHD |
44642-32010 |
— | ||
|
44785
|
44785
44785-32010 Gasket, Brake Booster[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
44785-32010 |
US $3.94 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
