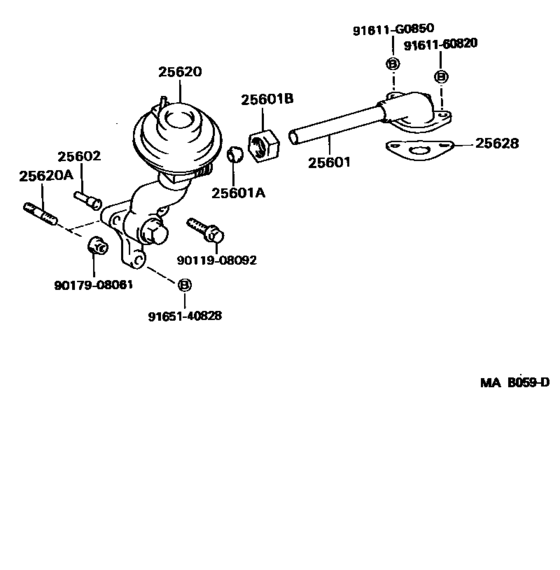

Exhaust Gas Recirculation System ([08.1988 - ] (8808- )22R..4FC..V) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- RX80
- grade
- GL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- ATM
- DESTINATION
- V
- Model
- CRESSIDA
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-38010 Pipe Sub-Assy, Egr, No.1[08.1988 - 08.1996] 22R..RX8#..4FC..V |
25601-38010 |
US $55.04 |
||
|
25601A
|
25601A
90410-16044
Sleeve, Ball, Egr Pipe, No.1
[08.1988 - 08.1996] 22R..RX8#..4FC..V |
90410-16044 |
— | ||
|
25601B
|
25601B
90402-22081
Nut, Union, Egr Pipe, No.1
[08.1988 - 08.1996] 22R..RX8#..4FC..V |
90402-22081 |
— | ||
|
25602
|
25602
25612-37010
Pipe Sub-Assy, Egr, No.2
[08.1988 - 08.1996] 22R..RX8#..4FC..V |
25612-37010 |
— | ||
|
25620
|
25620
25620-37080 Valve Assy, EgrEGR [08.1988 - 08.1996] 22R..RX8#..4FC..V |
25620-37080 |
US $266.45 |
||
|
25620A
|
25620A
90116-08207
Bolt, Stud(For Egr Valve)
[08.1988 - 08.1996] 22R..RX8#..4FC..V |
90116-08207 |
— | ||
|
25628
|
25628
25628-35030 Gasket, Intake Manifold Hole CoverEGR INLET [08.1988 - 08.1996] 22R..RX8#..4FC..V |
25628-35030 |
US $2.24 |
||
|
91611G0850
|
91611G0850
91611-G0850
New Genuine Part
|
91611-G0850 |
— | ||
|
9011908092
|
9011908092
90119-08092 Bolt(For Front Bearing Retainer Setting) |
90119-08092 |
US $2.51 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9165140828
|
9165140828
91651-40828
New Genuine Part
|
91651-40828 |
— | ||
