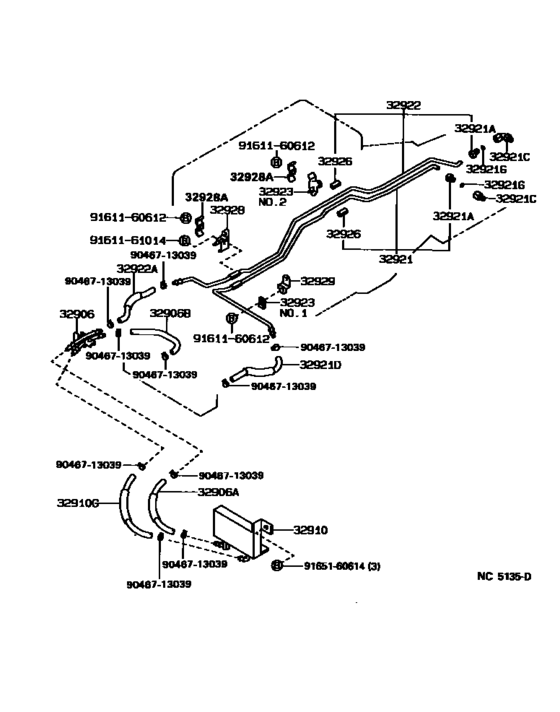

Oil Cooler & Tube (Atm) ([08.1988 - 02.1993] (8808-9302)RX8#..4FC..V ; (9302- )4FC) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- RX80
- grade
- GL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- ATM
- DESTINATION
- V
- Model
- CRESSIDA
- From
- 08.1988
- To
- 08.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32906
|
32906
32907-22040 Tube Sub-Assy, Oil CoolerOIL COOLER [08.1988 - 02.1993] RX8#..4FC..V |
32907-22040 |
US $23 |
||
|
32906A
|
32906A
32941-22070 Hose(For Oil Cooler Inlet)[08.1988 - 11.1988] RX80..4FC..V |
32941-22070 |
US $28.25 |
||
| replacement | |||||
|
32906A
|
32906A
32941-22071 Hose(For Oil Cooler Inlet)[08.1988 - 11.1988] RX80..4FC..V |
32941-22071 |
US $27.96 |
||
|
32906A
|
32906A
32941-22220 Hose, Oil Cooler Tube(For Inlet)OIL COOLER TUBE(FOR INLET) [11.1988 - 07.1989] RX80..4FC..V |
32941-22220 |
US $32.61 |
||
| replacement | |||||
|
32906A
|
32906A
32941-22221 Hose(For Oil Cooler Outlet)[11.1988 - 07.1989] RX80..4FC..V |
32941-22221 |
US $32.61 |
||
|
32906A
|
32906A
32941-22221 Hose(For Oil Cooler Outlet)[07.1989 - 02.1993] RX8#..4FC..V |
32941-22221 |
US $32.61 |
||
|
32906B
|
32906B
90445-15014
Hose(For Oil Cooler Inlet)
[08.1988 - 07.1989] RX80..4FC..V |
90445-15014 |
— | ||
|
32906B
|
32906B
90445-15045 Hose(For Oil Cooler Inlet)[07.1989 - 02.1993] RX8#..4FC..V |
90445-15045 |
US $8.30 |
||
|
32910
|
32910
32910-22030 Cooler Assy, OilOIL [08.1988 - 08.1996] RX8#..4FC..V |
32910-22030 |
US $511.06 |
||
|
32910G
|
32910G
32941-22240 Hose, Oil Cooler OutletOIL COOLER OUTLET [11.1988 - 07.1989] RX80..4FC..V |
32941-22240 |
US $40.91 |
||
| replacement | |||||
|
32910G
|
32910G
32941-22241 Hose, Oil Cooler OutletOIL COOLER OUTLET [11.1988 - 07.1989] RX80..4FC..V |
32941-22241 |
US $40.77 |
||
|
32910G
|
32910G
32941-22241 Hose, Oil Cooler OutletOIL COOLER OUTLET [07.1989 - 02.1993] RX8#..4FC..V |
32941-22241 |
US $40.77 |
||
|
32910G
|
32910G
32941-32030 Hose(For Oil Cooler Inlet)[08.1988 - 11.1988] RX80..4FC..V |
32941-32030 |
US $43.53 |
||
|
32921
|
32921
32921-22480 Tube, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [08.1988 - 08.1990] RX8#..4FC |
32921-22480 |
US $28.25 |
||
|
32921A
|
32921A
90402-14004 Nut, Union(For Oil Cooler Tube)[08.1988 - 08.1990] GX81,LX80,RX8#..4FC |
90402-14004 |
US $3.32 |
||
|
32921C
|
32921C
90404-14007 Union(For Oil Cooler Tube)[08.1988 - 08.1996] GX81,LX80,RX8#..4FC FR |
90404-14007 |
US $5.23 |
||
|
32921C
|
32921C
90407-14003 Union(For Oil Cooler Tube)[08.1988 - 08.1996] GX81,LX80,RX8#..4FC RR |
90407-14003 |
US $17.11 |
||
|
32921D
|
32921D
32942-22060 Hose(For Oil Cooler Inlet)[08.1988 - 07.1989] RX80..4FC |
32942-22060 |
US $25.63 |
||
| replacement | |||||
|
32921D
|
32921D
32942-22061 Hose(For Oil Cooler Outlet)[08.1988 - 07.1989] RX80..4FC |
32942-22061 |
US $25.19 |
||
|
32921D
|
32921D
32942-22061 Hose(For Oil Cooler Outlet)[07.1989 - 02.1993] RX8#..4FC |
32942-22061 |
US $25.19 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..4FC |
90301-10189 |
from US $2.63 |
||
|
32922
|
32922
32922-22530 Tube, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [08.1988 - 08.1990] RX8#..4FC |
32922-22530 |
US $21.55 |
||
|
32922A
|
32922A
32941-12140 Hose, Oil Cooler Inlet, No.1[08.1988 - 10.1989] RX8#..4FC |
32941-12140 |
US $31.16 |
||
| replacement | |||||
|
32922A
|
32922A
32941-12141 Hose(For Oil Cooler Inlet)[08.1988 - 10.1989] RX8#..4FC |
32941-12141 |
US $31.16 |
||
|
32922A
|
32922A
32941-12141 Hose(For Oil Cooler Inlet)[10.1989 - 08.1990] RX8#..4FC |
32941-12141 |
US $31.16 |
||
|
32923
|
32923
32923-22020 Clamp, Automatic Transmission Oil Cooler TubeAUTOMATIC TRANSMISSION OIL COOLER TUBE [08.1988 - 08.1996] RX8#..4FC |
32923-22020 |
US $9.03 |
||
|
32923
|
32923
90461-06033 Clamp(For Flexible Hose Clamp)[08.1988 - 08.1990] RX8#..4FC |
90461-06033 |
US $2.04 |
||
|
32926
|
32926
32926-22010 Cushion, Oil Cooler Tube(Atm)[11.1988 - 08.1990] GX81,RX8#..4FC L=35,ID=8 |
32926-22010 |
US $2.18 |
||
|
32926
|
32926
32926-30011 Cushion, Oil Cooler Tube(Atm)[08.1988 - 11.1988] RX80..4FC L=25,ID=8 |
32926-30011 |
US $1.89 |
||
|
32928
|
32928
32928-22070 Clamp, Flexible Hose, No.1FLEXIBLE HOSE, NO.1 [08.1988 - 08.1996] RX8#..4FC |
32928-22070 |
US $11.36 |
||
|
32928A
|
32928A
90462-12085 Clamp, Automatic Transmission Oil Cooler Tube[08.1988 - 12.1995] GX81,RX8#..4FC |
90462-12085 |
US $2.91 |
||
|
32929
|
32929
32929-20070 Clamp, Flexible Hose, No.2AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.7 [08.1988 - 08.1996] RX8#..4FC |
32929-20070 |
US $9.03 |
||
|
9046713039
|
9046713039
90467-13039
Clamp, Hose
|
90467-13039 |
— | ||
| replacement | |||||
|
9046713039
|
9046713039
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161161014
|
9161161014
91611-61014
New Genuine Part
|
91611-61014 |
— | ||
| replacement | |||||
|
9161161014
|
9161161014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
