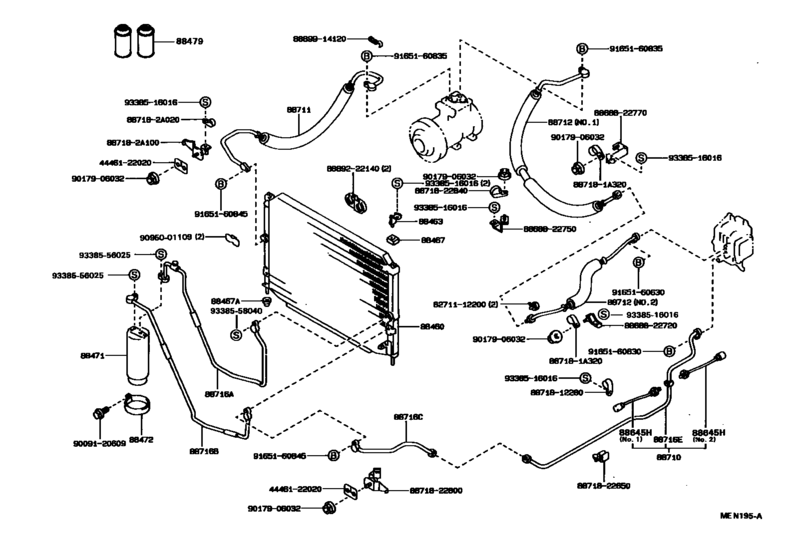

Heating & Air Conditioning - Cooler Piping ([08.1988 - 02.1993] DEALER OPT (8808-9302)RX80..RHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- RX80
- grade
- GL
- body
- SED
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-22390
Condenser Assy, Cooler
[08.1988 - 08.1990] GX81,MX8#,RX8# |
88460-22390 |
— | ||
|
88463
|
88463
88463-22010
Bracket, Cooler Condenser, No.1
[08.1988 - 08.1996] GX81,LX80,MX8#,RX8# |
88463-22010 |
— | ||
|
88467
|
88467
88467-32030
Cushion, Cooler Condenser, No.1
[08.1988 - 08.1990] LX80;GX81,MX83,RX80..RHD |
88467-32030 |
— | ||
|
88467A
|
88467A
88467-32020
Cushion, Cooler Condenser, No.1
[08.1988 - 08.1990] LX80;GX81,MX83,RX80..RHD |
88467-32020 |
— | ||
|
88471
|
88471
88471-12020
Receiver & Dryer Assy, Cooler
[08.1988 - 08.1993] RX80;GX81,LX80,MX81,RX81..LHD |
88471-12020 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-12060 Receiver & Dryer Assy, Cooler[08.1988 - 08.1993] RX80;GX81,LX80,MX81,RX81..LHD |
88471-12060 |
from US $57.46 |
||
|
88472
|
88472
88473-22020
Bracket, Receiver Tank, No.1
[08.1988 - 08.1990] LX80;GX81,MX83,RX80..RHD |
88473-22020 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1988 - 10.1989] LX80;GX81,MX83,RX80..RHD 400G |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1988 - 10.1989] LX80;GX81,MX83,RX80..RHD 400G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[08.1988 - 10.1989] LX80;GX81,MX83,RX80..RHD 400G |
90986-02005 |
— | ||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[10.1989 - 08.1990] LX80;GX81,MX83,RX80..RHD 250G |
90986-02004 |
— | ||
|
88645H
|
88645H
88645-30280
Switch, Pressure No.1
[08.1988 - 09.1989] LX80;GX81,MX83..RHD NO.2; RX80..RHD NO.2 |
88645-30280 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-30281
Switch, Pressure
[08.1988 - 09.1989] LX80;GX81,MX83..RHD NO.2; RX80..RHD NO.2 |
88645-30281 |
— | ||
|
88645H
|
88645H
88645-30281
Switch, Pressure
[09.1989 - 03.1990] GX81,MX81,RX8# NO.2 |
88645-30281 |
— | ||
|
88710
|
88710
88710-22280 Tube Assy, Air Conditioner[08.1988 - 02.1993] RX80..RHD MAKER OPT |
88710-22280 |
US $232.96 |
||
|
88710
|
88710
88710-22300 Tube Assy, Air Conditioner[08.1988 - 02.1993] RX80..RHD DEALER OPT |
88710-22300 |
US $206.75 |
||
|
88711
|
88711
88711-22450 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [08.1988 - 01.1991] RX8#..GEN |
88711-22450 |
US $182 |
||
| replacement | |||||
|
88711
|
88711
88711-22451 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [08.1988 - 01.1991] RX8#..GEN |
88711-22451 |
US $179.09 |
||
|
88711
|
88711
88711-22451 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [01.1991 - 02.1993] RX80 |
88711-22451 |
US $179.09 |
||
|
88712
|
88712
88712-22770 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1988 - 08.1990] RX80..RHD COMPRESSOR SIDE |
88712-22770 |
US $173.26 |
||
| replacement | |||||
|
88712
|
88712
88712-22771 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1988 - 08.1990] RX80..RHD COMPRESSOR SIDE |
88712-22771 |
US $173.26 |
||
|
88712
|
88712
88712-22771 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [01.1991 - 02.1993] RX80..RHD UNIT SIDE |
88712-22771 |
US $173.26 |
||
|
88712
|
88712
88712-22790 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1988 - 08.1990] RX80..RHD UNIT SIDE |
88712-22790 |
US $256.26 |
||
| replacement | |||||
|
88712
|
88712
88712-22791 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [08.1988 - 08.1990] RX80..RHD UNIT SIDE |
88712-22791 |
US $256.26 |
||
|
88712
|
88712
88712-22791 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [01.1991 - 02.1993] RX80..RHD COMPRESSOR SIDE |
88712-22791 |
US $256.26 |
||
|
88716A
|
88716A
88716-22820 Pipe, Cooler Refrigerant Liquid, A[08.1988 - 08.1993] LX80,RX8# |
88716-22820 |
US $107.74 |
||
|
88716B
|
88716B
88716-22830 Pipe, Cooler Refrigerant Liquid, B[08.1988 - 02.1993] RX80..RHD |
88716-22830 |
US $90.27 |
||
|
88716C
|
88716C
88716-2A060 Pipe, Cooler Refrigerant Liquid, C[08.1988 - 02.1993] GX81,MX83,RX80..RHD |
88716-2A060 |
US $39.89 |
||
|
88716E
|
88716E
88716-2A050 Pipe, Cooler Refrigerant Liquid, E[08.1988 - 02.1993] RX80..RHD |
88716-2A050 |
US $87.36 |
||
|
887181A320
|
887181A320
88718-1A320
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A320 |
— | ||
|
887182A020
|
887182A020
88718-2A020
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2A020 |
— | ||
|
887182A100
|
887182A100
88718-2A100
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2A100 |
— | ||
|
4446122020
|
4446122020
44461-22020 Insulator, Tube Refrigerant |
44461-22020 |
US $3.93 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8868822720
|
8868822720
88688-22720
Bracket, Cooler Diaphragm
|
88688-22720 |
— | ||
|
8868822750
|
8868822750
88688-22750
Bracket, Cooler Diaphragm
|
88688-22750 |
— | ||
|
8868822770
|
8868822770
88688-22770
Bracket, Cooler Diaphragm
|
88688-22770 |
— | ||
|
8871812280
|
8871812280
88718-12280
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-12280 |
— | ||
|
8871822650
|
8871822650
88718-22650
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-22650 |
— | ||
|
8871822800
|
8871822800
88718-22800
Pipe, Cooler Refrigerant Suction, No.2
|
88718-22800 |
— | ||
|
8871822840
|
8871822840
88718-22840
Pipe, Cooler Refrigerant Suction, No.2
|
88718-22840 |
— | ||
|
8889222140
|
8889222140
88892-22140
Bracket, Cooler Evaporator Mounting
|
88892-22140 |
— | ||
|
8889914120
|
8889914120
88899-14120
Cover, Evaporator
|
88899-14120 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9095001109
|
9095001109
90950-01109 New Genuine Part |
90950-01109 |
US $3.93 |
||
|
9165160630
|
9165160630
91651-60630 New Genuine Part |
91651-60630 |
US $1.89 |
||
| replacement | |||||
|
9165160630
|
9165160630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.79 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
|
9338558040
|
9338558040
93385-58040
New Genuine Part
|
93385-58040 |
— | ||
