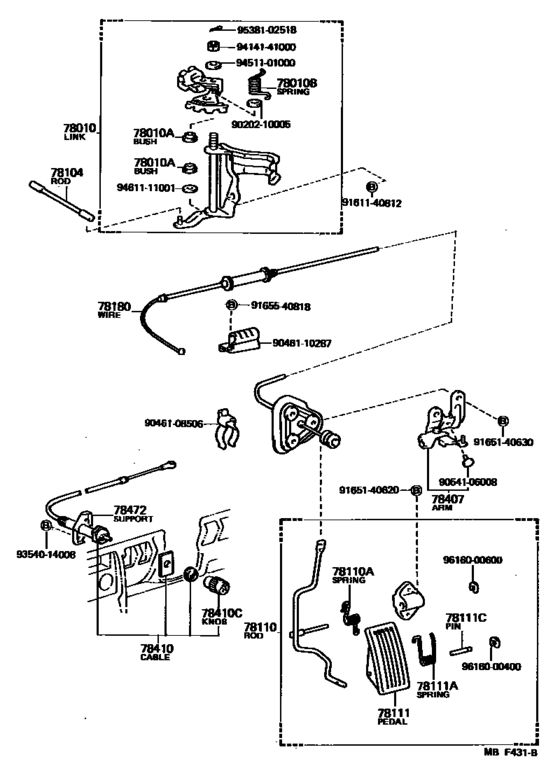

Accelerator Link ([08.1983 - ] (8308- )LX60) Diagram Toyota CRESTA
- Year
- 1983 - 1984
- Sales region
- Japan
- Frame
- LX60
- grade
- SCM
- body
- 4DH
- ENGINE
- L
- TRANSMISSION
- MTM
- From
- 08.1983
- To
- 07.1984
- Gear Shift Type
- 5F
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010
|
78010
78100-30460 Link, AcceleratorACCELERATOR [08.1983 - 07.1984] LX60 |
78100-30460 |
US $77.17 |
||
|
78010A
|
78010A
90386-10138 Bush (For Throttle Cam Shaft)[08.1983 - 07.1984] LX60 |
90386-10138 |
US $3.84 |
||
|
78010B
|
78010B
90508-16010 Spring, Torsion (For Accelerator Link)[08.1983 - 07.1984] LX60 |
90508-16010 |
US $5.39 |
||
|
78104
|
78104
78104-30120
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1983 - 07.1984] LX60 |
78104-30120 |
— | ||
|
78110
|
78110
78120-22150 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1983 - 07.1984] LX60;SX60..4FC |
78120-22150 |
US $64.36 |
||
|
78110A
|
78110A
90508-23076
Spring (For Accelerator Pedal Rod)
[12.1982 - 07.1984] SX60..4FC; GX61,LX60,MX61 |
90508-23076 |
— | ||
|
78111
|
78111
78111-12100 Pedal, Accelerator[08.1982 - 07.1984] GX61,LX60,MX61,SX60 |
78111-12100 |
from US $18.54 |
||
|
78111A
|
78111A
90508-23003
Spring (For Accelerator Pedal)
[08.1982 - 07.1984] GX61,LX60,MX61,SX60 |
90508-23003 |
— | ||
|
78180
|
78180
78180-22191 Wire Assy, AcceleratorACCELERATOR [08.1983 - 07.1984] LX60 |
78180-22191 |
US $60.28 |
||
|
78407
|
78407
78407-22041
Arm Sub-Assy, Throttle Control
[08.1983 - 07.1984] LX60 |
78407-22041 |
— | ||
|
78410
|
78410
78410-22040
Cable Assy, Throttle Control
[08.1983 - 07.1984] LX60 |
78410-22040 |
— | ||
|
78410C
|
78410C
78411-22010 Knob, Throttle Cable[08.1983 - 07.1984] LX60 |
78411-22010 |
US $8.91 |
||
|
78472
|
78472
78472-22020
Support, Throttle Control Cable
[08.1983 - 07.1984] LX60 |
78472-22020 |
— | ||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9046108506
|
9046108506
90461-08506 New Genuine Part |
90461-08506 |
US $5.10 |
||
|
9046110287
|
9046110287
90461-10287
Clamp (For Accelerator Wire Set)
|
90461-10287 |
— | ||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.60 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9165540818
|
9165540818
91655-40818
New Genuine Part
|
91655-40818 |
— | ||
| replacement | |||||
|
9165540818
|
9165540818
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.44 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $2.88 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
