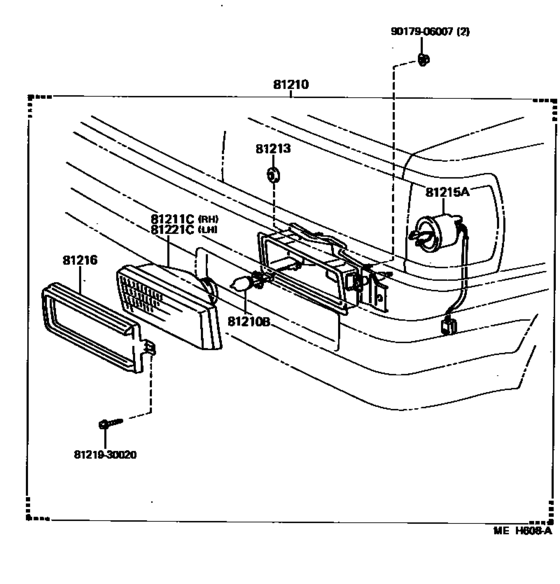

Fog Lamp ([08.1986 - ] (8608- )) Diagram Toyota CRESTA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- LX70
- grade
- SCM
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210
|
81210
81210-22030
Lamp Assy, Fog, Rh
[08.1986 - 08.1988] GX71,LX70,SX70 RH |
81210-22030 |
— | ||
|
81210
|
81210
81220-22020 Lamp Assy, Fog[08.1986 - 08.1988] GX71,LX70,SX70 LH |
81220-22020 |
US $189.28 |
||
|
81210B
|
81210B
90981-13018 Bulb, Fog Lamp[08.1986 - 08.1988] GX71,LX70,SX70 １２Ｖ ５５Ｗ，ハロゲン,12V 55W |
90981-13018 |
US $16 |
||
|
81211C
|
81211C
81212-22030 Lamp Unit, Fog Lamp, Rh[08.1986 - 08.1988] GX71,LX70,SX70 |
81212-22030 |
US $138.32 |
||
|
81213
|
81213
81218-30020 Spacer, Fog Lamp[08.1986 - 08.1988] GX71,LX70,SX70 |
81218-30020 |
US $3.35 |
||
|
81215A
|
81215A
81215-22030 Socket & Wire, Fog Lamp[08.1986 - 08.1988] GX71,LX70,SX70 |
81215-22030 |
US $23.44 |
||
|
81216
|
81216
81216-22030 Rim, Fog Lamp, No.1[08.1986 - 08.1988] GX71,LX70,SX70 RH |
81216-22030 |
US $10.05 |
||
|
81216
|
81216
81226-22020 Rim, Fog Lamp, No.1[08.1986 - 08.1988] GX71,LX70,SX70 LH |
81226-22020 |
US $10.05 |
||
|
81221C
|
81221C
81222-22020 Lamp Unit, Fog Lamp, Lh[08.1986 - 08.1988] GX71,LX70,SX70 |
81222-22020 |
US $138.32 |
||
|
8121930020
|
8121930020
81219-30020
Bolt, Fog Lamp
|
81219-30020 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
