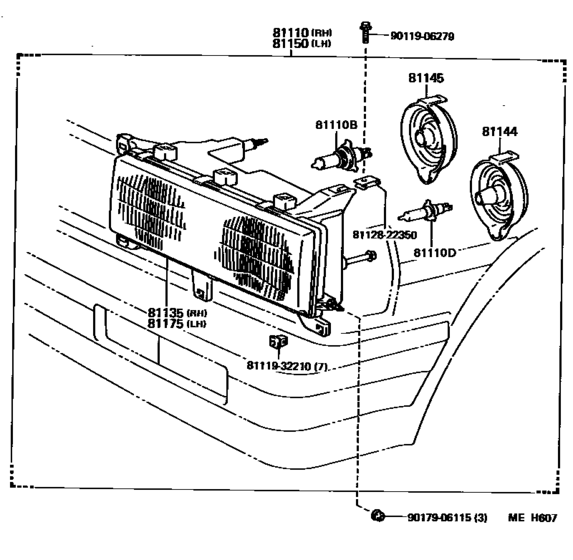

Headlamp ([08.1986 - ] (8608- )) Diagram Toyota CRESTA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- LX70
- grade
- SCM
- body
- SED
- ENGINE
- 2LT
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-22350
Headlamp Assy, Rh
[08.1986 - 08.1988] GX71,LX70,SX70 |
81110-22350 |
— | ||
|
81110
|
81110
81110-80410 Headlamp Assy, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81110-80410 |
US $433.89 |
||
| replacement | |||||
|
81110
|
81110
81110-22450 Headlamp Assy, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81110-22450 |
US $428.06 |
||
|
81110B
|
81110B
90981-13017 Bulb(For Headlamp, No.1)[08.1984 - 08.1986] GX71,LX70,MX71,SX70 １２Ｖ ５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 55W |
90981-13017 |
from US $7.86 |
||
|
81110B
|
81110B
90981-13039
Bulb(For Headlamp, No.1)
[08.1986 - 08.1988] GX71,LX70,SX70 １２Ｖ ５５Ｗ，ハロゲン,12V 55W |
90981-13039 |
— | ||
|
81110D
|
81110D
90981-13015
Bulb(For Headlamp, No.1)
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W |
90981-13015 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [08.1984 - 08.1988] GX71,LX70,MX71,SX70 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W |
90981-13058 |
from US $30.40 |
||
|
81135
|
81135
81130-22350 Unit Assy, Headlamp, Rh[08.1986 - 08.1988] GX71,LX70,SX70 |
81130-22350 |
US $412.05 |
||
|
81144
|
81144
81139-16340 Cover, Headlamp, No.1[08.1986 - 08.1988] GX71,LX70,SX70 |
81139-16340 |
US $17.33 |
||
| replacement | |||||
|
81144
|
81144
81139-23010 Cover, Headlamp, No.1[08.1986 - 08.1988] GX71,LX70,SX70 |
81139-23010 |
US $15.43 |
||
|
81145
|
81145
81139-22350 Cover, Headlamp, No.2[08.1986 - 08.1988] GX71,LX70,SX70 |
81139-22350 |
US $17.33 |
||
|
81150
|
81150
81150-22350
Headlamp Assy, Lh
[08.1986 - 08.1988] GX71,LX70,SX70 |
81150-22350 |
— | ||
|
81150
|
81150
81150-80402 Headlamp Assy, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81150-80402 |
US $433.89 |
||
| replacement | |||||
|
81150
|
81150
81150-22450 Headlamp Assy, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81150-22450 |
US $428.06 |
||
|
81175
|
81175
81170-22350 Unit Assy, Headlamp, Lh[08.1986 - 08.1988] GX71,LX70,SX70 |
81170-22350 |
US $412.05 |
||
|
8111932210
|
8111932210
81119-32210 Screw, Headlamp |
81119-32210 |
US $4.08 |
||
|
8112822350
|
8112822350
81128-22350 Nut, Headlamp |
81128-22350 |
US $3.35 |
||
| replacement | |||||
|
8112822350
|
8112822350
81128-91606 Nut, Headlamp |
81128-91606 |
US $3.49 |
||
|
9011906279
|
9011906279
90119-06279
New Genuine Part
|
90119-06279 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
