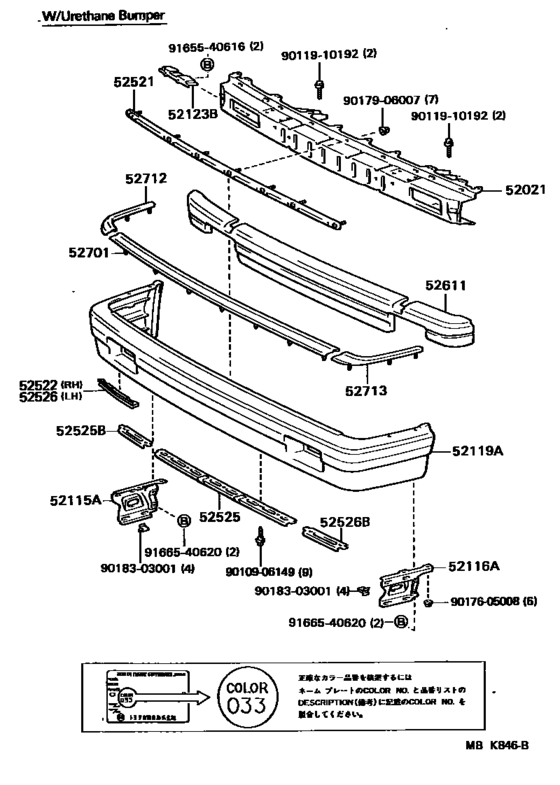

Front Bumper & Bumper Stay ([08.1984 - ] (8408- )) Diagram Toyota CRESTA
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- SLU
- body
- SED
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-22170 Reinforcement Sub-Assy, Front Bumper[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52021-22170 |
US $522.70 |
||
|
52115A
|
52115A
52115-22110 Support, Front Bumper Side, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52115-22110 |
US $32.76 |
||
|
52116A
|
52116A
52116-22080 Support, Front Bumper Side, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52116-22080 |
US $32.76 |
||
|
52119A
|
52119A
52119-22240-03
Cover, Front Bumper
[08.1984 - 06.1985] GX71,MX71..SLU SUPER SILVER-M,SUPER SILVER M,150 |
52119-22240-03 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-22904 Cover, Front BumperFRONT BUMPER [08.1984 - 06.1985] GX71,MX71..SLU SUPER SILVER-M,SUPER SILVER M,150 |
52119-22904 |
US $547.46 |
||
|
52119A
|
52119A
52119-22240-04 Cover, Front Bumper[08.1984 - 06.1985] GX71,MX71..SLU DARK BLUE-M,DARK BLUE METALLIC,8C1 |
52119-22240-04 |
US $1,065.79 |
||
| replacement | |||||
|
52119A
|
52119A
52119-22904 Cover, Front BumperFRONT BUMPER [08.1984 - 06.1985] GX71,MX71..SLU DARK BLUE-M,DARK BLUE METALLIC,8C1 |
52119-22904 |
US $547.46 |
||
|
52119A
|
52119A
52119-22240-05
Cover, Front Bumper
[08.1984 - 06.1985] GX71,MX71..SLU BEIGE-M,BEIGE METALLIC,4E6 |
52119-22240-05 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-22904 Cover, Front BumperFRONT BUMPER [08.1984 - 06.1985] GX71,MX71..SLU BEIGE-M,BEIGE METALLIC,4E6 |
52119-22904 |
US $547.46 |
||
|
52119A
|
52119A
52119-22240-08 Cover, Front Bumper[08.1984 - 06.1985] GX71,MX71..SLU SUPER WHITE,SUPER WHITE,040 |
52119-22240-08 |
US $1,065.79 |
||
|
52119A
|
52119A
52119-22240-12
Cover, Front Bumper
[08.1984 - 10.1985] GX71,MX71..SLU DEEP MAROON,WINE RED METALLIC,3E2 |
52119-22240-12 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-22904 Cover, Front BumperFRONT BUMPER [08.1984 - 10.1985] GX71,MX71..SLU DEEP MAROON,WINE RED METALLIC,3E2 |
52119-22904 |
US $547.46 |
||
|
52119A
|
52119A
52119-22240-13
Cover, Front Bumper
[08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
52119-22240-13 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-22904 Cover, Front BumperFRONT BUMPER [08.1984 - 08.1986] GX71,MX71..GT,SLU GRAY-M,GRAY METALLIC,2V3 |
52119-22904 |
US $547.46 |
||
|
52119A
|
52119A
52119-22240-25 Cover, Front Bumper[08.1984 - 08.1986] GX71,MX71..GT,SLU LIGHT BEIGE-M,WHITE/BEIGE,2V0 |
52119-22240-25 |
US $1,065.79 |
||
|
52123B
|
52123B
52123-22040 Plate, Front Bumper Reinforcement, Rh[08.1984 - 08.1985] GX71,MX71..SLU |
52123-22040 |
US $21.99 |
||
|
52521
|
52521
52521-22080 Retainer, Front Bumper, Upper Center[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52521-22080 |
US $43.24 |
||
|
52525
|
52525
52525-22050 Retainer, Front Bumper, Lower Center[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52525-22050 |
US $27.23 |
||
|
52525B
|
52525B
52526-22020 Retainer, Front Bumper, Lower Side Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52526-22020 |
US $8.59 |
||
| replacement | |||||
|
52525B
|
52525B
52526-22040 Retainer, Front Bumper, Lower Side Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52526-22040 |
US $8.74 |
||
|
52526B
|
52526B
52526-22020 Retainer, Front Bumper, Lower Side Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52526-22020 |
US $8.59 |
||
| replacement | |||||
|
52526B
|
52526B
52526-22040 Retainer, Front Bumper, Lower Side Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52526-22040 |
US $8.74 |
||
|
52611
|
52611
52611-22070 Absorber, Front Bumper Energy[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
52611-22070 |
US $247.52 |
||
|
52701
|
52701
52711-22070
Moulding Sub-Assy, Front Bumper
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
52711-22070 |
— | ||
|
52712
|
52712
52702-22020
Moulding Sub-Assy, Front Bumper Side, Rh
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
52702-22020 |
— | ||
|
52713
|
52713
52703-22020
Moulding Sub-Assy, Front Bumper Side, Lh
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
52703-22020 |
— | ||
|
9010906149
|
9010906149
90109-06149
New Genuine Part
|
90109-06149 |
— | ||
| replacement | |||||
|
9010906149
|
9010906149
90109-06136 New Genuine Part |
90109-06136 |
US $1.92 |
||
|
9011910192
|
9011910192
90119-10192 New Genuine Part |
90119-10192 |
US $1.22 |
||
| replacement | |||||
|
9011910192
|
9011910192
90119-10185 Bolt |
90119-10185 |
from US $3.84 |
||
|
9017605008
|
9017605008
90176-05008 Nut |
90176-05008 |
from US $0.90 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9018303001
|
9018303001
90183-03001
New Genuine Part
|
90183-03001 |
— | ||
| replacement | |||||
|
9018303001
|
9018303001
90468-04038 CLIP |
90468-04038 |
US $1.49 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9166540620
|
9166540620
91665-40620
New Genuine Part
|
91665-40620 |
— | ||
| replacement | |||||
|
9166540620
|
9166540620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
